Question

Select Network NIC in VMware Player multiple NICs

Asked by: red_nectar

My question is VERY similar to http://www.experts-exchange.com/Software/VMWare/Q_23588489.html which remains unresolved.

I have two NICs on my host machine (the host is running vista)

I have created a VMware machine using easyvmx at http://easyvmx.com/ for a linux machine with 2 NICs

The Linux VM boots up beautifully with VMPlayer with eth0 and eth1

However, BOTH eth0 and eth1 are bound to the same physical NIC on the host.  Depending which subnet I plug that NIC into, either eth0 or eth1 works (obviously not both)

How do I configure my .vmx file to force an adapter to use a particular host NIC?

A copy of my .vmx file is below:

#!/usr/bin/vmplayer

# Filename: MyKnoppix.vmx
# Generated 2008-09-01;22:24:13 by EasyVMX!
# http://www.easyvmx.com

# This is a Workstation 5 or 5.5 config file
# It can be used with Player
config.version = "8"
virtualHW.version = "4"

# Selected operating system for your virtual machine
guestOS = "otherlinux"

# displayName is your own name for the virtual machine
displayName = "MyKnoppix"

# These fields are free text description fields
annotation = "Knoppix Server for My Class"
guestinfo.vmware.product.long = "classserver"
guestinfo.vmware.product.class = "virtual machine"

# Number of virtual CPUs. Your virtual machine will not
# work if this number is higher than the number of your physical CPUs
numvcpus = "1"

# Memory size and other memory settings
memsize = "320"
MemAllowAutoScaleDown = "FALSE"
MemTrimRate = "-1"

# Unique ID for the virtual machine will be created
uuid.action = "create"

# Remind to install VMware Tools
# This setting has no effect in VMware Player
tools.remindInstall = "TRUE"

# Startup hints interfers with automatic startup of a virtual machine
# This setting has no effect in VMware Player
hints.hideAll = "TRUE"

# Enable time synchronization between computer
# and virtual machine
tools.syncTime = "TRUE"

# USB settings
# This config activates USB
usb.present = "TRUE"
usb.generic.autoconnect = "TRUE"

# First serial port, physical COM1 is available
serial0.present = "TRUE"
serial0.fileName = "Auto Detect"
serial0.autodetect = "TRUE"
serial0.hardwareFlowControl = "TRUE"

# Optional second serial port, physical COM2 is not available
serial1.present = "FALSE"

# First parallell port, physical LPT1 is not available
parallel0.present = "FALSE"

# Logging
# This config activates logging, and keeps last log
logging = "TRUE"
log.fileName = "MyKnoppix.log"
log.append = "TRUE"
log.keepOld = "3"

# These settings decides interaction between your
# computer and the virtual machine
isolation.tools.hgfs.disable = "FALSE"
isolation.tools.dnd.disable = "FALSE"
isolation.tools.copy.enable = "TRUE"
isolation.tools.paste.enabled = "TRUE"

# First network interface card
ethernet0.present = "TRUE"
ethernet0.virtualDev = "vlance"
ethernet0.connectionType = "bridged"
ethernet0.addressType = "generated"
ethernet0.generatedAddressOffset = "0"

# Second network interface card
ethernet1.present = "TRUE"
ethernet1.virtualDev = "vlance"
ethernet1.connectionType = "bridged"
ethernet1.addressType = "generated"
ethernet1.generatedAddressOffset = "10"

# Settings for physical floppy drive
floppy0.present = "FALSE"

# Settings for physical CDROM drive
ide1:0.present = "TRUE"
ide1:0.deviceType = "cdrom-raw"
ide1:0.startConnected = "FALSE"
ide1:0.fileName = "auto detect"
ide1:0.autodetect = "TRUE"

# Settings for the optional virtual CDROM, ISO-image
ide1:1.present = "TRUE"
ide1:1.fileName = "C:\Sources\Virtual Machines\ISOs\MyKnoppix.v3.2.iso"
ide1:1.deviceType = "cdrom-image"
ide1:1.mode = "persistent"
ide1:1.startConnected = "TRUE"

# First IDE disk, size 1Gb
ide0:0.present = "TRUE"
ide0:0.fileName = "MyKnoppix.vmdk"
ide0:0.mode = "persistent"
ide0:0.startConnected = "TRUE"
ide0:0.writeThrough = "TRUE"

# END OF EasyVMX! CONFIG

extendedConfigFile = "MyKnoppix.vmxf"
virtualHW.productCompatibility = "hosted"
tools.upgrade.policy = "manual"

ethernet0.generatedAddress = "00:0c:29:1e:f8:85"
ethernet1.generatedAddress = "00:0c:29:1e:f8:8f"

fileSearchPath = "C:\Users\me\Documents\Virtual Machines\MyKnoppix;."


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:
65:
66:
67:
68:
69:
70:
71:
72:
73:
74:
75:
76:
77:
78:
79:
80:
81:
82:
83:
84:
85:
86:
87:
88:
89:
90:
91:
92:
93:
94:
95:
96:
97:
98:
99:
100:
101:
102:
103:
104:
105:
106:
107:
108:
109:
110:
111:
112:
113:
114:
115:
116:
117:
118:
119:
120:
121:
122:
123:
124:
125:

Select allOpen in new window

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2008-09-01 at 18:27:00ID23694750
Topics

VMware

,

Virtualization

,

Linux Networking

Participating Experts
2
Points
0
Comments
7

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Small VMWare Player
    I need a small VMWare player to run an XP instance with some tutorials loaded up on it. The tutorials save user's bookmarks and so forth by default. I assume when using a player though, small enough and simple enough for the user to use being completely unfamiliar with Virt...
  2. VMWare Player Error
    I just hooked my SATA drive up to a Vista machine and got the following message when i attempt to run VMWare Player. "The features supported by the processor(s) in this machine are different from the features supported by the processor(s) in the machine on which the sn...
  3. vmware player
    I have a vmware player image from a vendor, i need it to take the place of an existing appliance that was used previously for the same purpose. I already have ACLs built for that existing appliance and would like to move that IP over to the vmware player image. Right now, i...
  4. vmware player
    ok this is freaking me out. i have vmware player running windows xp on ubuntu 9.10, and it runs AWSOME!! so my question, would this setup ( running the vm player running windows xp under ubuntu ) be an affective guard against viruses because does the vmware player run in memo...
  5. vmware player
    i have vmware player running windows 7 running on my ubuntu 9.10 install and it's running great! so I'm trying to figure out the advantages of this setup. I use this setup as more of an experiment, and if wine in ubuntu is having a hard time with a windows app, vmware works v...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: red_nectarPosted on 2008-09-01 at 19:52:52ID: 22363923

Note: Forgot to emphasise that I'm running VMWare PLAYER, not VMWare workstation.  I also forgot to mention that vmnetcfg.exe for VMWare Player does not show the nics on my PC when I access it

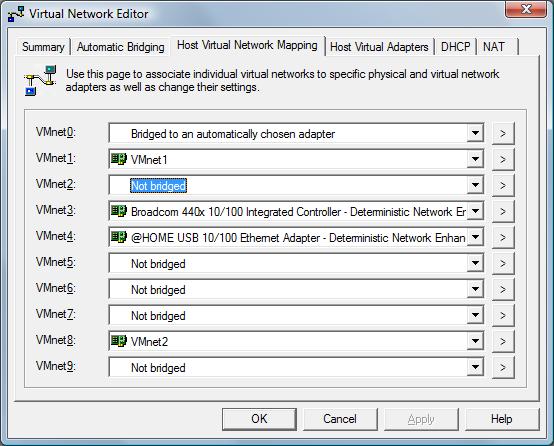

(See picture)



by: larstrPosted on 2008-09-02 at 00:44:02ID: 22364845

vmnetcfg doesn't show your nics? What kind of nics are you using? Wireless?



by: red_nectarPosted on 2008-09-02 at 01:02:51ID: 22364950

The NICs are:
1. Broadcom 440x 10/100 Integrated Controller (On a Dell Inspiron Laptop)
2. USB 10/100 Ethernet Adapter (Generic)

I do have a 3rd Wireless adapter which can also confuse VMWare, but in this situation I always disable it.

Sometimes VMWare Player uses the Broadcom adapter as its "automatically" chosen adapter, other times it chooses the USB.  There are even times when it switches from one adapter to the other (such as if I disconnect the currently working adapter).  But always, one one adapter is used.



by: larstrPosted on 2008-09-02 at 01:26:25ID: 22365099

As you're using automatic bridging it will choose the adapter that has a default gw.




by: red_nectarPosted on 2008-09-04 at 05:42:11ID: 22386556

Update:  I have now managed to assign multiple adapters using vmnetcfg.exe (Previously I forgot to run  as Administrator in Vista)

So my assigned network adapters are as shown in the screen dump

And I've updated the .vmx config as shown in the code snippet.

BUT - both virtual adapters use VMnet0 - I can't get the second one to use VMnet2.

Can anyone help?

####### nics ##########################
ethernet0.present = "TRUE"
ethernet0.startConnected = "TRUE"
ethernet0.virtualDev = "vlance"
ethernet0.connectionType = "bridged"
ethernet0.vnet = "VMnet0"
ethernet0.addressType = "generated"
ethernet0.generatedAddress = "00:0c:29:68:58:08"
ethernet0.generatedAddressOffset = "0"
ethernet1.present = "TRUE"
ethernet1.startConnected = "TRUE"
ethernet1.virtualDev = "vlance"
ethernet1.connectionType = "bridged"
ethernet1.vnet = "VMnet2"
ethernet1.addressType = "generated"
ethernet1.generatedAddress = "00:0c:29:68:58:12"
ethernet1.generatedAddressOffset = "10"

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:

Select allOpen in new window



by: red_nectarPosted on 2008-09-09 at 05:42:47ID: 22426785

Looks like I've finally got it solved.  The problem seemed to be the fact that I was trying to use VMNet2 in the config above - that may have been related to the fact that I had renamed my adapters in Windows to "VMNet1" and "VMNet2" rather than leaving them as "Local Area Connection 4" and "Local Area Connection 5" which is what thery were automatically called upon installation.

The final config file and vmnet.cfg settings are shown below: (Or at least teh relevant bits)

####### nics ##########################
ethernet0.present = "TRUE"
ethernet0.startConnected = "TRUE"
ethernet0.virtualDev = "vlance"
ethernet0.connectionType = "bridged"
ethernet0.vnet = "VMnet4"
ethernet0.addressType = "generated"
ethernet0.generatedAddress = "00:0c:29:68:58:08"
ethernet0.generatedAddressOffset = "0"
ethernet1.present = "TRUE"
ethernet1.startConnected = "TRUE"
ethernet1.virtualDev = "vlance"
ethernet1.connectionType = "nat"
ethernet1.vnet = "VMnet3"
ethernet1.addressType = "generated"
ethernet1.generatedAddress = "00:0c:29:68:58:12"
ethernet1.generatedAddressOffset = "10"

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:

Select allOpen in new window



by: JohnnyFiveAlivePosted on 2009-12-31 at 13:57:07ID: 26156156

I have the same problem as you describe... however when I add the ethernet1.vnet = "VMnet3"
line to my .vmx, both of my virtual adapters are still bridged to the same original physical adapter.
I am running VMWare Player...
Is there something I missed?

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
