Question

Maximizing network usage using dual network connection on ESXi 4

Asked by: jjoz

Hi All,

I'm wondering if i could use both of the NIC connection at the same time to boost performance ?

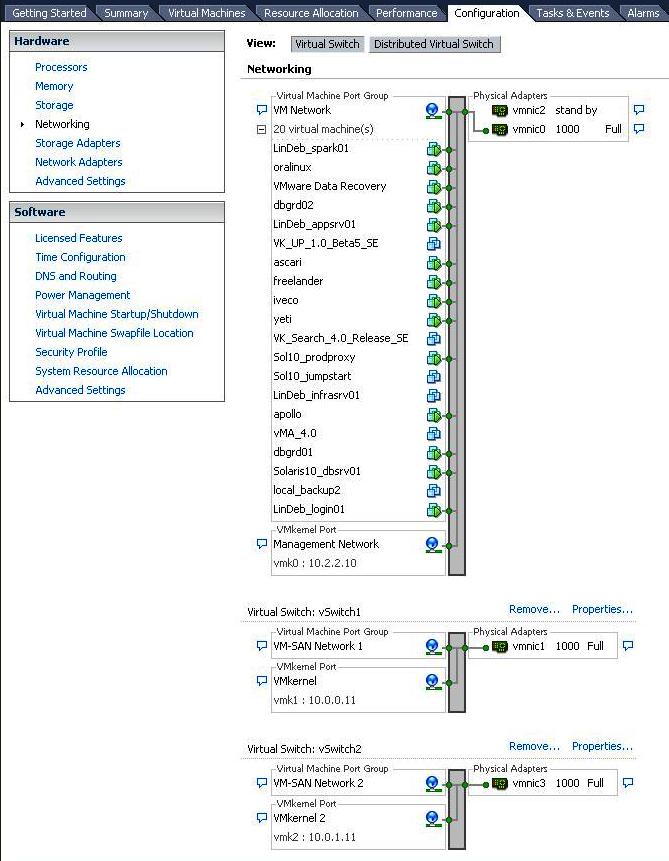

in the attached screen shot one is currently disabled ?

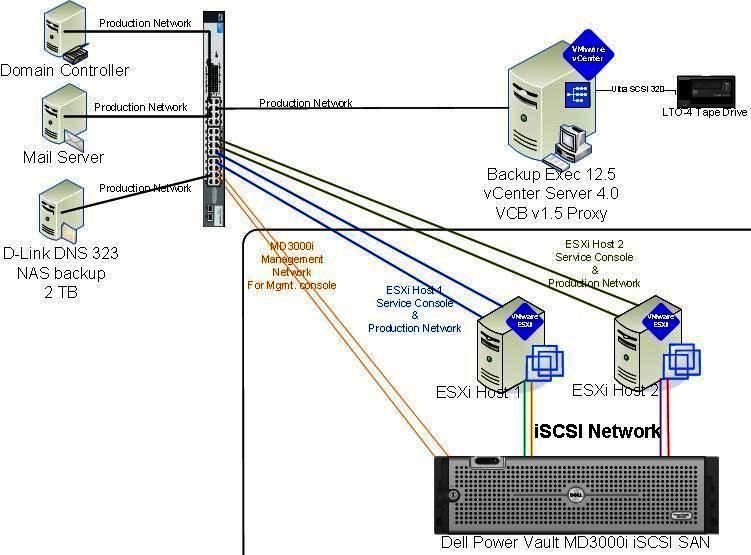

I'm using ESXi 4 with the latest patch and this is Dell Power Edge 2950-III Broadcom NetExtreme II NIC and Intel Pro 1000 MT with TOE NIC, while the switch the Switch is just a dumb switch of HP Procurve 1800-24G which supports Gigabit

all of the cables is Cat6 and the IP address currently assigned to this ESXi host is just one.

any kind of suggestion to optimize the current configuration would be greatly appreciated.

Cheers,

JJ

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-10-06 at 23:02:45ID24791397
Tags

ESXi

,

VMWare

,

Dell PowerEdge

,

NIC

,

vswitch

Topics

VMware

,

Miscellaneous Networking

,

Computer Servers

Participating Experts
3
Points
500
Comments
12

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Cat5 vs. Cat6 Gigabit
    I will be running a gigbit network is it possible to use Cat5 vsw. Cat6
  2. Gigabit Switch
    Hello I have 35 users connected to a 10/100 switch. I am about to buy a couple of Gigabit NAS boxes and will store all user and exchange files on one and perform a continuous backup to the other. I also need to backup the data from one of the NAS boxes to a tape drive on a ...
  3. What are the benefits and disadvantages of using a CAT6 …
    What are the benefits and disadvantages of using a CAT6 network cable for a gigabit network?
  4. HP Procurve Topology and cabling advice
    I have 2 HP ProCurve switches and need some cabling advice. I'm trying to enable the most efficient network with the best throughput. The network supports 40 users and 3 servers. The users' workstations are all operating at 100MB through an HP ProCurve 4000m switch (which ...
  5. dual gigabit lan nic
    Hello, Our two of our servers have dual gigabit network cards in them however only one is plugged in....I haven't done much reseach on the functionality of the dual gigabit adapters...Every time I log in i notice the local area connection 2 disabled icon I was wondering if ...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: ryder0707Posted on 2009-10-07 at 00:15:40ID: 25512768

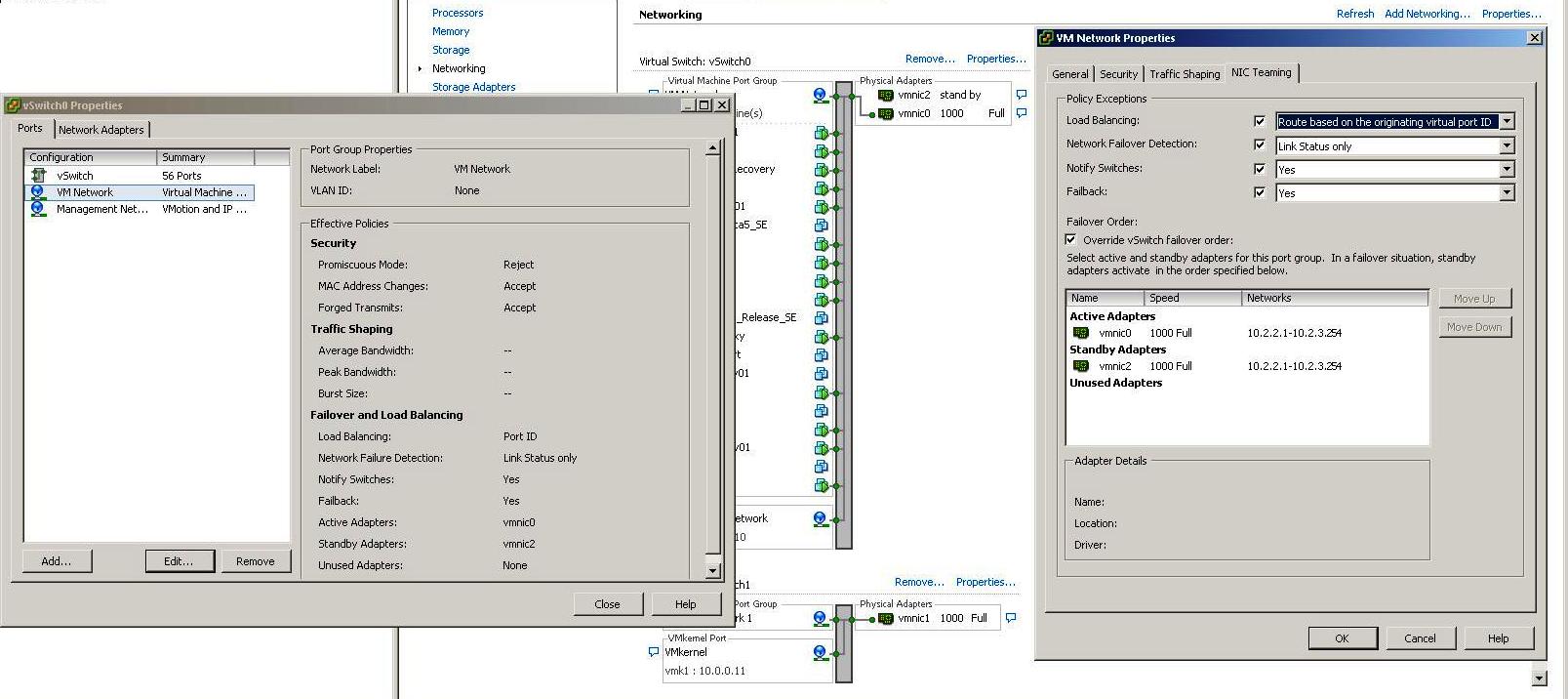

Yes just put vmnic2 as additional active adapter, esx will team outbound traffic for better performance
but to control inbound you still need configuration at physical switch



by: jjozPosted on 2009-10-07 at 00:17:23ID: 25512779

ok, so this means that the existing configuration is already optimal without having to invest in additional hardware ?

thanks for the reply.



by: ryder0707Posted on 2009-10-07 at 00:20:29ID: 25512794

yeah it is fine, unless you want to invest more, ofcoz you can further optimize
just put vmnic2 as additional active adapter, it will not only give your more bandwidth but making vSwitch0 redundant as well
cheers!



by: za_mkhPosted on 2009-10-07 at 00:28:31ID: 25512830

My preferred option is to  use LACP/Link Aggregation. So if you use a good L2/L3 switch, you can bond the links together (on the physical switch)so that they act as one link - slightly different to just putting both adaptors into active mode - In our case we bond three nics together for VM guest traffic so each esx/esxi host has 3GBPs bandwidth for guest traffic. Even if one link fails, things continue to work with no failover needed.



by: ryder0707Posted on 2009-10-07 at 00:33:55ID: 25512860

Btw i just checked 1800 series is not a dumb switch, you can aggregate inbound traffice as well using lacp



by: ryder0707Posted on 2009-10-07 at 00:35:37ID: 25512869

See here, 802.3ad is supported as well as jumbo frame to improve your iscsi performance
http://www.procurve.com/products/switches/HP_ProCurve_Switch_1800_Series/overview.htm



by: larstrPosted on 2009-10-07 at 06:33:25ID: 25515110

JJ,
The 1800 might not be a completely dumb switch, but you may have trouble getting good performance with it as it has very limited buffer space per port. I would avoid using it for such VM networks. Most important for good VM network performance would be to enable portfast (or disable STP) on these ports as the default settings will give you poor VM networking performance.

Lars



by: jjozPosted on 2009-10-07 at 16:35:46ID: 25521286

Thanks to all for the reply,

to Larstr, "Most important for good VM network performance would be to enable portfast (or disable STP)" how to enable it ? This switch doesn't have web interface and since i bought it I've never done anything fancy apart from plugging all the cables into it and it works till now :-)



by: larstrPosted on 2009-10-07 at 23:37:44ID: 25522727

The Procurve 1800 series switches do indeed have a web interface. I think it defaults to using dhcp so you should see it in the logs of your dhcp server.

Lars



by: larstrPosted on 2009-10-07 at 23:39:34ID: 25522733

Correction.. It's not using dhcp:

Q: What is the default IP address of the ProCurve 1800 Series Switches?
The default IP address is 192.168.2.10 with a 24 bit subnet mask(255.255.255.0). Further information about initial switch configurationis available in the Installation and Getting Started Guide.Q: What is the default IP address of the ProCurve 1800 Series Switches?
 The default IP address is 192.168.2.10 with a 24 bit subnet mask (255.255.255.0). Further information about initial switch configuration is available in the Installation and Getting Started Guide.



by: jjozPosted on 2009-10-25 at 04:30:49ID: 25656304

ok larstr,

Let me find a spare laptop and set the Static IP of that laptop as follows:

IP: 192.168.2.11
subnet mask (255.255.255.0)
Gateway & DNS: blank

hopefully i can access the web console and do the firmware upgrade while some of the device is conected into it.

Cheers.



by: jjozPosted on 2010-03-05 at 19:18:16ID: 31638065

Thanks for the idea guys.
