Question

virtualbox. connect when no router is present

Asked by: ussher

I have set up a virtualbox network.

the setup is 'ubuntu server' setup on top of kubuntu 9.04

The ubuntu server acts as a webserver when i am connected to my home router and the internal PC is assigned an IPaddress.

I can access all the websites on the server via Firefox browser.

When i am not connected to my home router I want to be able to access this server, but cant.

I have assigned it a static ip address so the server is always 192.168.11.5 but unless the router exists, i cant connect to the websites.

How can i access these sites when not connected to the router?

virtualbox 3.06
(also using ehcp on the ubuntu server so setting my /etc/hosts to point to 192.168.11.5 domainname.com  is all i need to do to see the domain when the router exists.)

I have tried many things to get it going, but had success with none.

Thanks.

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-09-21 at 03:00:52ID24747846
Tags

virtualbox

,

internal network

,

ubuntu

,

linux

Topics

Linux Virtualization

,

Virtualization

Participating Experts
1
Points
0
Comments
6

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. CRC erros on Ubuntu router
    Hi, we recently upgraded to a new metrofiber connection that connects 5 buildings together. Each of the buildings has a tellabs 8813-310 access node provided by our ISP. We use port 3 at all the remote stores and they each connect to a different port on the tellabs at the mai...
  2. Ubuntu router for multiple subnets
    Hello, I'm running into some issues with our old router and would like to try setting up a machine with Ubuntu and two NIC's to act as a route traffic between two of our subnets (to try and cut costs a little) We are running a static network and I do not need it to do DHCP. I...
  3. Trouble with ubuntu router
    Hello, I was having problems with an older ubuntu router , and based off other peoples answers and recommendations on this web site, I decided to build a new one. The old one is still in place, and so far I am the only computer using the new router. I kept it simple and only ...
  4. Open computers using Start/Run \\[ipaddress] someti…
    I have 3 sites connected each one to another via site-to-site VPNs. The VPNs seem to be running just fine. I'm using 3 XP Pro machines - one at each site- for testing that all have TrendMicro Internet Security installed and set up the same way. File shares are all set up. ...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: imanassypovPosted on 2009-09-21 at 10:29:56ID: 25385309

It sounds that your guest virtual box (ubuntu server) is sharing the same ip address as your host machine (kubuntu). You need to switch your networking configuration from 'nat/shared mode' to 'bridged mode' and statically assign a different ip address to your virtual appliance. Once that's done, depending on your firewall, you have to configure a one-to-one network adress translation (NAT) that would point to your virtual box private address. In home firewall setup, you are usually given only one public ip address and your firewall might not allow you to do the NAT. In which case you will have to forward your inbound tcp 80 and tcp 443 ports from your public address to the virtual appliance.

If you have not done any changes on your firewall yet, that is the reason you are not reachable. home firewalls do not forward any inbound ports by default.



by: ussherPosted on 2009-09-21 at 13:48:05ID: 25387432

Thanks imanassypov,

I have set the virtual box network settings to:
PCnet-FAST III (Bridged adapter, eth0)

and tried to connect to http://localhost:8080 and also http://192.161.11.5:80 but neither worked. (just times out)

~$ ssh -X -p 2222 localhost
ssh: connect to host localhost port 2222: Connection refused

below is some of the setup commands i used to setup port forwarding.

hopefully you can see where i have gone wrong.  Thanks

VBoxManage setextradata "ubuntu server" "VBoxInternal/Devices/pcnet/0/LUN#0/Config/ftp/HostPort" 2121
VBoxManage setextradata "ubuntu server" "VBoxInternal/Devices/pcnet/0/LUN#0/Config/ftp/GuestPort" 21
VBoxManage setextradata "ubuntu server" "VBoxInternal/Devices/pcnet/0/LUN#0/Config/ftp/Protocal" TCP

VBoxManage setextradata "ubuntu server" "VBoxInternal/Devices/pcnet/0/LUN#0/Config/SSH/HostPort" 2222
VBoxManage setextradata "ubuntu server" "VBoxInternal/Devices/pcnet/0/LUN#0/Config/SSH/GuestPort" 22
VBoxManage setextradata "ubuntu server" "VBoxInternal/Devices/pcnet/0/LUN#0/Config/SSH/Protocal" TCP

VBoxManage setextradata "ubuntu server" "VBoxInternal/Devices/pcnet/0/LUN#0/Config/http/HostPort" 8080
VBoxManage setextradata "ubuntu server" "VBoxInternal/Devices/pcnet/0/LUN#0/Config/http/GuestPort" 80
VBoxManage setextradata "ubuntu server" "VBoxInternal/Devices/pcnet/0/LUN#0/Config/http/Protocal" TCP

~$ VBoxManage getextradata "ubuntu server" enumerate
VirtualBox Command Line Management Interface Version 3.0.6
(C) 2005-2009 Sun Microsystems, Inc.
All rights reserved.

Key: GUI/SaveMountedAtRuntime, Value: yes
Key: GUI/LastCloseAction, Value: shutdown
Key: GUI/LastWindowPostion, Value: 144,193,720,453
Key: GUI/Fullscreen, Value: off
Key: GUI/Seamless, Value: off
Key: GUI/AutoresizeGuest, Value: on
Key: GUI/MiniToolBarAutoHide, Value: on
Key: GUI/ShowMiniToolBar, Value: yes
Key: GUI/MiniToolBarAlignment, Value: bottom
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/ftp/HostPort, Value: 2121
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/ftp/GuestPort, Value: 21
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/ftp/Protocal, Value: TCP
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/SSH/HostPort, Value: 2222
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/SSH/GuestPort, Value: 22
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/SSH/Protocal, Value: TCP
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/http/HostPort, Value: 8080
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/http/GuestPort, Value: 80
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/http/Protocal, Value: TCP


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:

Select allOpen in new window



by: ussherPosted on 2009-09-21 at 13:55:40ID: 25387510

oops, changed 'protocal' to 'protocol' but still didnt fix anything

~$ VBoxManage getextradata "ubuntu server" enumerateVirtualBox Command Line Management Interface Version 3.0.6
(C) 2005-2009 Sun Microsystems, Inc.
All rights reserved.

Key: GUI/SaveMountedAtRuntime, Value: yes
Key: GUI/LastCloseAction, Value: shutdown
Key: GUI/LastWindowPostion, Value: 115,229,720,453
Key: GUI/Fullscreen, Value: off
Key: GUI/Seamless, Value: off
Key: GUI/AutoresizeGuest, Value: on
Key: GUI/MiniToolBarAutoHide, Value: on
Key: GUI/ShowMiniToolBar, Value: yes
Key: GUI/MiniToolBarAlignment, Value: bottom
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/ftp/HostPort, Value: 2121
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/ftp/GuestPort, Value: 21
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/SSH/HostPort, Value: 2222
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/SSH/GuestPort, Value: 22
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/http/HostPort, Value: 8080
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/http/GuestPort, Value: 80
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/http/Protocol, Value: TCP
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/SSH/Protocol, Value: TCP
Key: VBoxInternal/Devices/pcnet/0/LUN#0/Config/ftp/Protocol, Value: TCP


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:

Select allOpen in new window



by: ussherPosted on 2009-09-21 at 14:16:40ID: 25387723

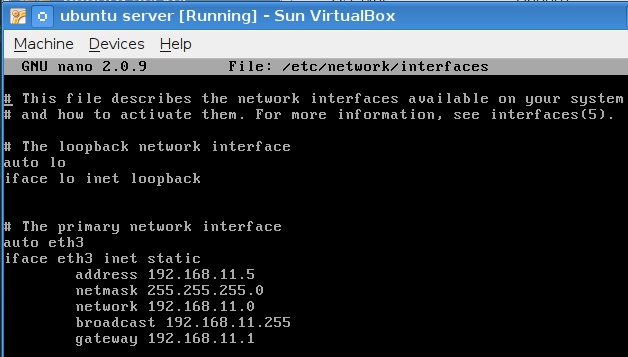

this is the contents of the /etc/network/interfaces on the virtual system



by: ussherPosted on 2009-10-07 at 00:43:26ID: 25512895

.. no ideas?



by: ussherPosted on 2009-10-07 at 02:43:17ID: 25513495

Managed to get it working.

Host-only adapter for the internal Host<->Guest

then a NAT for the guest to have internet access.
