Question
BIOS and XP will not recognise new SATA drive when reinstalling XP - XP unable to detect HDD
As a favour to my father in-law, I offered to sort out his ailing PC. Taking the belt and braces option I purchased a new SATA HDD, with the intention of installing a clean copy of XP and then all the other software. Once this was up and running then I would take the old SATA drive and place it in the external drive casing and move the required files across.
I unplugged the old Seagate SATA drive, plugged in the new one and attempted to install XP...this is where my problems begin.
XP install starts up from the CD and gets as far as telling me that it is unable to detect hard disk drives installed on this pc. I have been unable to get past and my patience are wearing thin and I am losing the will to live. Enough of the fluff...some important details...
-----------
Motherboard - gigabyte k8 triton series ga k8n pro
-----------
-------------
New Harddrive - seagate barracuda 7200.10 160gb (SATA)
-------------
----------------------
Selective BIOS setting...
----------------------
----------------------
STANDARD CMOS FEATURES
----------------------
1)IDE HDD Auto - detection - AUTO
a)IDE Primary = Auto
b)Access Mode = Auto
----------------------
ADVANCED BIOS FEATURES
----------------------
1)SCSI/RAID Cntrl BOOT ORDER
a) ITE RAID CONTROLLER
b) SOILICON IMAGE MASS STORAGE CONTROLLER
-----------------------
INTERGRATED PERIPHERALS
-----------------------
1)ONBOARD SERIAL ATA = enabled
20SERIAL ATA FUNCTION = base
3)ONBOARD GIGA-RAID = enabled
4)GIGA RAID FUNCTION = ata
So far I have fiddled with some of the BIOS settings. When the PC boots up and it performs a check to detect IDE drives (not sure of this) then it seems to see new drive, in the sense that it displays the size on the screen. Even when I plug the old drive back in, the BIOS still does not see the original drive...but it still works and XP is still operational...phew.
I have an external case and plugged the new drive and formatted a 60gb active primary partition and my laptop can see and write to this when plugged in via USB.
After reading some postings, I realized that I needed to hit F6 when the XP install starts up. I found the 'driver' files on the CD and copied them to a 3.5" floppy. There are 2 XP options to select from and when I select either then I still do not progress any further. I have not updated the BIOS as I'm sure if this will kill the PC off. At present they can still use email and internet. After 2 days...it is if I have not touched it apart from a few changes to the BIOS.
Many postings detail issues with SATA HDD and now they have claimed me as another victim...but hopefully only temporary...
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Subscribe now for full access to Experts Exchange and get
Instant Access to this Solution
- Plus...
- 30 Day FREE access, no risk, no obligation
- Collaborate with the world's top tech experts
- Unlimited access to our exclusive solution database
- Never be left without tech help again
Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.
- "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
- "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
- "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.
See what Experts Exchange can do for you.
Got a question?
We've got the answer.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
Need individual assistance?
Our experts are ready to help.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Want to learn from the best?
Read articles from industry experts.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Working on a long term project?
Store your work and research.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
What Makes Experts Exchange Unique?
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Trusted by the world's most respected brands.
Faithfully serving IT professionals since 1996.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Free Tech Articles
-
WARNING: 5 Reasons why you should NEVER fix a computer for free.
It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
-
SCCM OSD Basic troubleshooting
SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
-
Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
-
Create a Win7 Gadget
This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
-
Outlook continually prompting for username and password
There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
-
Backup Exchange 2010 Information Store using Windows Backup
There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...
Cloud Class Webinars
- Avoiding Bugs in Microsoft Access
Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
- Top 10 Best New Features in Visio 2010
Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
- IT Consultant Business Secrets Revealed
Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
- Disaster Recovery and Business Continuity
Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
- Organize Your Visio Diagrams with Containers and Lists
Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
- How to Us Objects, Properties, Events and Methods in Microsoft Access
Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...
Join the Community
Give a Little. Get a Lot.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
Answers
peteborder,
your mainboard may not be able to detect harddisk size larger than 160GB. Suggestions would be:
1) Update your mainboard's BIOS but please perform this with care (depending on your mainboard's manufacturer, some may still not support large harddisk even after BIOS update)
2) Proceed to Seagate website and download tools to allow ur mainboard to recognise your harddisk:
- http://www.seagate.com/ww/
- http://www.seagate.com/ww/
You should also try to download the latest SATA drivers from Gigabyte
http://www.gigabyte.us/Sup
0xSaPx0
The K8N Pro has 2 SATA RAID controllers on board. One is the nVidia RAID controller (one that's set for Base). No F6 drivers are required for single drives (no RAID) connected to nVidia controller when installing XP SP1 or later.

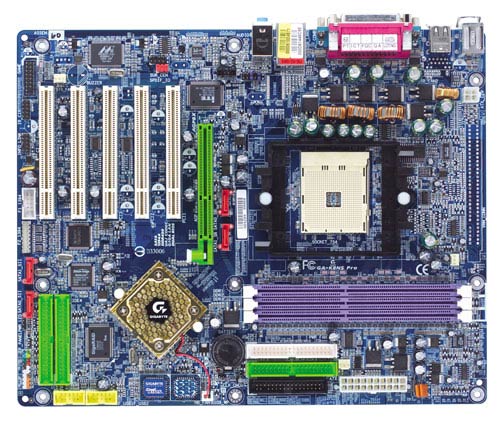

nVidia controller SATA connectors are those closest to CPU socket in picture.
There is no drive size limitation.
The PC I'm typing this on has a K8NS Pro motherboard and I've built several systems on it's brother -- the K8NS.
At present the new drive is plugged into the SATA RAID controller.
Willcomp - you say that the mobo should be able to accept large drives, I have only partitioned 60gb of it and set it to be the primary partition. So this should not be an issue....? Can you seen anything wrong in the BIOS settings or any setting that I should look for?
When I try and detect the HDD in the BIOS it cannot detect it? Would you expect it to? Even when I replug in the orignal working one (120gb) it cannot detect this either....but continues to boot up and work etc. You also say that no F6 drivers are required..so other than tweaking the BIOS settings ...I can't see what else I can do...any ideas?
Which SATA RAID controller is it plugged into? The nVidia one or the SiI one? XP SP1 or later? Use the nVidia controller connections.
As best I recall, BIOS does not show drives connected to SATA controllers.
Drivers are needed for SiI controller. It must be enabled in BIOS and configured in its own BIOS.
This is a rather complex motherboard to configure. I have 2 drives in RAID 1, so can't check my own settings. Will have access to a K8NS with single drives tomorrow.
Hi willcomp - thanks for your input. The existing working drive and then the new one (i just unplugged the cables from the old HDD and plugged them into new HDD) is plugged into SATA0_SII.. When you say nViida...what do you mean? I have the motherboard layout pic in front of me...there are 2 reds one..1 labelled SATA0_SII and 1 labelled SATA1_SII...is one of these the nVidia one? Its currently plugged into SATA0_SII.
I have XP home with SP1a included on it.
Any idea what setting I am looking for in the BIOS? Or a key word I might be looking for?
Thanks in advance for checking out the K8NS tomorrow.
What confuses me I guess is that with the existing BIOS settings etc the guy who built the PC originally was able to get a 120/130gb SATA drive to work, The existing HDD was a seagate and so is the new one...unless he had some tricks up his sleeve! Cheers Pb
My bad -- I'm giving you info on a K8NS Pro, not a K8N Pro. Sorry for the confusion.
The K8N Pro only has a SiI SATA RAID controller. Here's a link to driver you need:
http://www.giga-byte.com/S
Drive still probably won't show in BIOS.
willcomp - I'm glad that there are some serious points up for grab heere as i feel I am being a pian. So...I've downloaded the RAID drivers and press F6 during install. It reads the disk and gives me the option of Intel or AMD. I choose AMD...it spins the A disk for a bit and then tells me that '\amd64\S13112.sys is corrupted' and then returns me the screen where all I can do is continue. It then asks me if want to install from new, repair xp etc. Now when I get here...the keyboard is frozen and my onl option is to switch the bloomin thing off. I have downloaded it twice now and used 2 different floppy drives...any ideas?
Yep, you do. Copy TXTSETUP.OEM, AMD64 folder, and IA64 folder to floppy. The directory where I extracted the files is sorted by date and I missed txtsetup.oem file since it sorted on date file was originally created and sank to near bottom of a long list.
If I keep working on this, I'll get it right eventually.
I haven't been copying the IA64 folder, I thought that was only needed if you had an intel chip? I'm guessing that the OEM is like a script that it runs through. But when it claims of a corrupted file, it references one in the AMD64 folder..I'll try tonite and include the IA64 folder as well. Many thanks for hanging in there...I'd like to get past these initial errors so I can get the software installed and quit pestering you...
3 Ways to Join
Business Accounts
- Perfect for organizations
- Multiple users
- Save over 36%
- Create a Business Account
Answer for Membership
- Earn free access
- Showcase your knowledge
- No credit card required
- Sign Up to Answer
Loading Advertisement...
by: lamaslanyPosted on 2008-02-24 at 17:15:59ID: 20972278
You need to provide the SATA drivers during the DOS-section of the Windows XP install. You should be able to get these from the motherboard manufacturer. Sadly you'll likely need a floppy disk.
During the install take note of the text at the bottom of the screen - it should ask you to press F6 to allow you to give it the drivers it needs. (Note: I believe that the actual section where is asks for the drivers comes a little later in the install - it has been a while!)
