Question
HP MSA1000 RAID 5 Array one (1) out of three (3) logical drives "Waiting for Rebuild" in ACU
I have an HP MSA1000 with two attached MSA30's. The first cabinet of disks (14) was populated with 72Gb disks and makes up one (1) RAID5 Array. I have been progressively swapping out those disks with 300Gb disks to expand the storage capacity. I replaced disk #10 on Thursday of the previous week and I noticed Monday of this week that one (1) of the three (3) logical drives is still "waiting for rebuild". The 2 other logical disks in this array completed rebuilding successfully. Is this the result of disk #10 being bad?
I have checked the evenet log on an attached server and found the following events:
--------------------------
Event Type: Information
Event Source: CPQFCAC
Event Category: None
Event ID: 24608
Date: 1/12/2009
Time: 5:42:09 PM
User: N/A
Computer: {SERVERNAME}
Description:
Logical Drive 1 of Array Controller \Device\FibreArray0, HBA Slot 1, Chassis: XXXXXXXXXXPC, has changed status from RECOVERING to RDY TO RECOVER.
Data:
0000: 00 00 00 00 06 00 50 00 ......P.
0008: 00 00 00 00 20 60 35 44 .... `5D
0010: 00 00 00 00 00 00 00 00 ........
0018: 00 00 00 00 00 00 00 00 ........
0020: 00 00 00 00 00 00 00 00 ........
--------------------------
Event Type: Warning
Event Source: CPQFCAC
Event Category: None
Event ID: 24618
Date: 1/12/2009
Time: 5:42:09 PM
User: N/A
Computer: {SERVERNAME}
Description:
Recovery of logical drive 1 configured on Array Controller \Device\FibreArray0, HBA Slot 1, Chassis: XXXXXXXXXPC, was aborted while rebuilding physical drive in Bay 5 on Box 2 due to an unrecoverable read error. The physical drive reporting the error is in Bay 4 on Box 2.
Data:
0000: 00 00 00 00 08 00 50 00 ......P.
0008: 00 00 00 00 2a 60 35 84 ....*`5„
0010: 00 00 00 00 00 00 00 00 ........
0018: 00 00 00 00 00 00 00 00 ........
0020: 00 00 00 00 00 00 00 00 ........
--------------------------

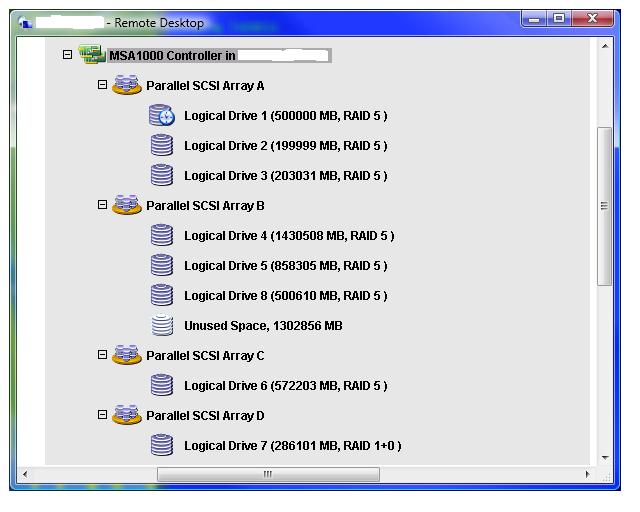

The event log points to a different physical disk an all together seperate Array. I'm not showing any LED's on any of the disks. Jpeg Attached of ACU screen!!
Thanks!
- MSAStatACU.jpg
- 46 KB
Array Config. Utility for MSA1000
This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.
Subscribe now for full access to Experts Exchange and get
Instant Access to this Solution
- Plus...
- 30 Day FREE access, no risk, no obligation
- Collaborate with the world's top tech experts
- Unlimited access to our exclusive solution database
- Never be left without tech help again
Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.
- "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
- "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
- "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.
See what Experts Exchange can do for you.
Got a question?
We've got the answer.
Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.
Need individual assistance?
Our experts are ready to help.
If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.
Want to learn from the best?
Read articles from industry experts.
Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.
Working on a long term project?
Store your work and research.
Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.
Access the answers to your technology questions today.
30-day free trial. Register in 60 seconds.
What Makes Experts Exchange Unique?
Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.
Trusted by the world's most respected brands.
Faithfully serving IT professionals since 1996.
Try it out and discover for yourself.
30-day free trial. Register in 60 seconds.
Free Tech Articles
-
WARNING: 5 Reasons why you should NEVER fix a computer for free.
It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
-
SCCM OSD Basic troubleshooting
SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
-
Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
-
Create a Win7 Gadget
This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
-
Outlook continually prompting for username and password
There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
-
Backup Exchange 2010 Information Store using Windows Backup
There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...
Cloud Class Webinars
- Avoiding Bugs in Microsoft Access
Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
- Top 10 Best New Features in Visio 2010
Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
- IT Consultant Business Secrets Revealed
Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
- Disaster Recovery and Business Continuity
Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
- Organize Your Visio Diagrams with Containers and Lists
Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
- How to Us Objects, Properties, Events and Methods in Microsoft Access
Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...
Join the Community
Give a Little. Get a Lot.
Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.
Answers

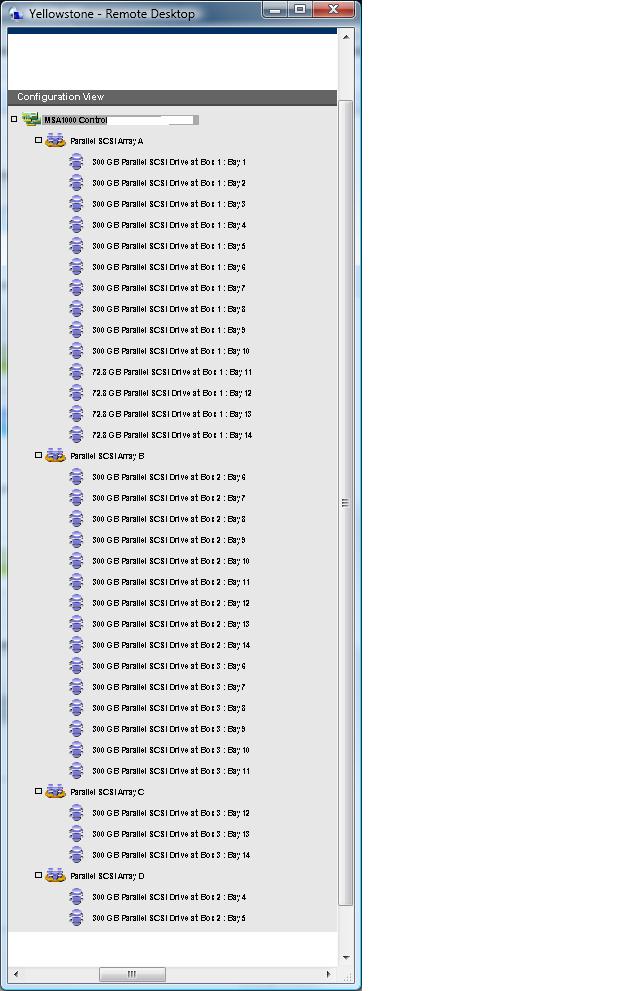

Physical View ... and ADU log
- MSAStatACU1.jpg
- 76 KB
Physical View
Under the MSA1000 I see
Array accelerator status:
Dirty data detected. Unable to write dirty data to drives
There aren't any Fl Rd Recv or Fl Wt Recv
SCSI Port 1, Drive ID 8
may be dodgy - see last failure
SCSI Port 2, Drive ID 1
has a lot errors on one block 00021280
It's the accelerator status that worries me.
I looked at the documentation and it says the following -
Accelerator Status: Dirty Data Detected... ...Unable to write dirty data to drives
Description: At least one cache line contains dirty data that the controller has been unable to flush (write) to the drives. This problem usually occurs when a problem with the drive or drives occurs.
Action: Resolve the problem with the drive or drives. The controller can then write the dirty data to the drives.
I'm still puzzled as to which steps to take next. I don't see any indications of bad drives thru ACU ... And the weird thing is why it is struggling with only one of the three logical drives on the array. I dont guess adding a spare in the group would fix the issue? If one of the drives is indeded bad would the controller pick up the spare and push the data there??
Both SCSI port 1 drive 8 and SCSI port 4 drive 5 have "hrd read" errors. Counts are the same for both Factory and Since Power. I'd like to see it power-cycled and then see if the hrd read count since power comes back on one of the disks under the ACU report and then swap that disk. Unfortunately though this may fail the logical drive that hasn't rebuilt yet.
Adding a spare is unlikely to help - it really looks like it's backup/restore time.
3 Ways to Join
Business Accounts
- Perfect for organizations
- Multiple users
- Save over 36%
- Create a Business Account
Answer for Membership
- Earn free access
- Showcase your knowledge
- No credit card required
- Sign Up to Answer
Loading Advertisement...
by: Randy_BojanglesPosted on 2009-01-14 at 02:02:11ID: 23371162
Can you also post a physcial view - the error message is not consistent with how you say the arrays are set up?
