Cannot connect ESXi 3.5 to MD3000i

Asked by: cabmup

I've spent about 6 hours on the phone with Dell to no avail.  We cannot get my Dell R710 ESXi 3.5 184236 to connect to a new MD3000i.  The R710 has the onboard Broadcom's connected to the general network, and then 2 Intel GB NIC's connected to the iSCSI network (10.0.2.xx and 10.0.3.xx).  The MD3000i has dual controllers connected to 2 switches.  2 Windows 2003 servers are successfully connected to the MD3000i.  Here's a rundown of what we have done:

1. Tried connecting by having only one of the network iSCSI connections enabled.
2. Associated the virtual disks to both the ESX group and the ESXi_1 server.
3. Shortened the iSCSI host name of the ESXi server.
4. Configured a VM to be on the iSCSI network subnet, ensuring the VM could ping the MD3000i host.
5. Rebooted the ESXi_1 server multiple times.

I am able to ping the ESXi server from a Windows machine on the same iSCSI network.  I have worked with both the Enterprise Server and the MD3000i support groups.  The next solution is to have a person in my remote office access the ESXi server, go to the unsupported mode, and trying pinging port 3260 on the ESXi.  I am hesitant to do this though in case anything goes awry.

Are there any ideas on what might be going wrong?

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-10-21 at 07:36:15ID24830722
Tags

ESXi MD3000i

Topics

Storage Technology

,

Hypervisor

Participating Experts
3
Points
250
Comments
16

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Configure iSCSI on ESX Server
    I admitadly am very new to VMWare. I am trying to configure iSCSI on my ESX Server to communicate with my Dell NX1950. So far they cannot talk. According to my VMware Infrastructure Client the iSCSI is not configured. How do I configure it?
  2. Dell MD3000i iSCSI SAN and ESX 3.5
    Hi, Im looking for some help connecting ESX 3.5 to the Dell md3000i iSCSI SAN. Ive tried to follow the guide from dell (link below), but had no luck. I think the problem is with NIC setups. Im trying o setup one NIC to be used for iSCSI and one for VM network access and co...
  3. ESX 3i local storage, iScsi storage and vm "storage appli…
    I am presently in a mad dash to get a new Dell server implemented. I have never setup iScsi SAN storage on an ESX host and have not had the required time to spool up knowledge. Server: Dell PE2950 with six(6) 1gb NICs and RAID 5 for local storage based VMs OS: Esx 3i SAN: I...
  4. iSCSI on VM?
    I have a Dell iSCSI SAN that is hosted by a physical server. The physical server is having hardware problems and I was thinking of replacing it with a ESX VM (hosted on another SAN - NOT the iSCSI SAN). Is this possible? In other words, the VM will host the iSCSI SAN with ...
  5. Dell AX4-5 iSCSI SAN and ESX 3.5
    I'm having an issue getting my ESX 3.5 host to pick up my SAN targets. I've read over the iSCSI SAN configuration PDF from VMW. I've reviewed my notes on how to get the networking portion configured, and I'm at the point where I'm looking at everything and I'm just out of ide...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: BAAAASSPosted on 2009-10-21 at 07:56:18ID: 25624575

How big is the LUN on the 3000i you are trying to allocate for the ESXi server?



by: cabmupPosted on 2009-10-21 at 07:57:52ID: 25624588

Hi BAAAASS,

I have tried both a 600GB and a 4GB partition.



by: BAAAASSPosted on 2009-10-21 at 08:13:11ID: 25624766

You mentioned that you have R710 Server, is there only the one or did you build a Cluster?



by: cabmupPosted on 2009-10-21 at 08:14:43ID: 25624782

The R710 is a standalone server at this point.  I do not have another ESXi server at the site to try connecting to the MD3000i with unfortunately.



by: BAAAASSPosted on 2009-10-21 at 08:25:34ID: 25624896

Keeping in mind that VMWare is not my area of expertise.
But based on the following:
* Other Servers are currently connecting fine to the SAN
* In essence the ESXi Server is running fine on its own Set of Local HDD - Please confirm

I can only guess that there are settings discrepancies between the iSCSI settings - can you double check this?



by: cabmupPosted on 2009-10-21 at 08:33:51ID: 25625013

Yes, the R710 has a bunch of local disks in a RAID 10 array.  My goal is to migrate the storage to the MD3000i.  It does have the DRAC installed, but it is only the Express version so it doesn't have a console option.

I've gone through the settings on the MD3000i group and the ESXi settings with the Dell Enterprise people.  The setup on ESXi seems very straightforward there are only a handful of things to do:

1. Add the storage adaptor and VMKernels
2. Enable iSCSI
3. Reboot
4. Add the host to the MD3000i
5. Setup a virtual disk and LUN
6. Have the ESXi server scan for changes



by: paulsolovPosted on 2009-10-21 at 14:12:45ID: 25628533

Is your vmkernel for iSCSI on a separate vswitch?  If so then you'll need to install a Manangement Console on this vswitch as well I believe, normally I do full blown and you have to install a service console on a vmkernel vswitch to get it to work correctly.  No need in Vsphere



by: cabmupPosted on 2009-10-21 at 14:18:49ID: 25628612

Thanks for the info.  Do you mean that I need to have a VMWare Inf Client running on the iSCSI network?  If so, I can give that a try.  My primary Windows host has the VM Client on it.  Do I just try and access the host on the iSCSI ip address (of the ESXi box)?

I have been able to setup a Ubuntu VM on the iSCSI network and it can access the MD3000i after some googling on how to do it.



by: paulsolovPosted on 2009-10-21 at 14:20:26ID: 25628628

Can you do a snapshot of your network config on ESX host or vCenter



by: cabmupPosted on 2009-10-21 at 14:29:19ID: 25628710

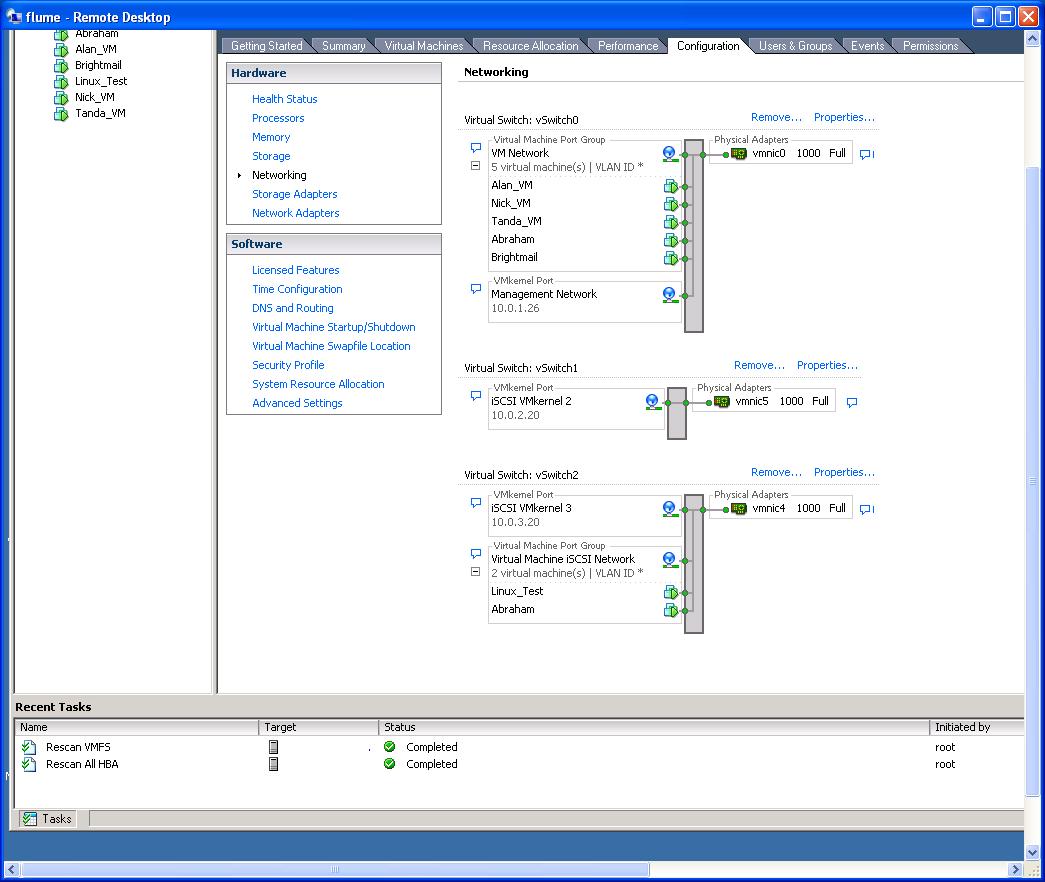

Here's a snapshot of the networking screen.



by: cabmupPosted on 2009-10-21 at 15:49:44ID: 25629303

I just got an update from Dell.  The ESXi logs are showing that the MD3000i is rejecting discovery.  This is an entry from the MD3000i log:

Date/Time: 10/21/09 3:21:50 PM
Sequence number: 982
Event type: 1808
Description: Login failure
Event specific codes: 0/0/0
Event category: Error
Component type: RAID Controller Module
Component location: iqn.1998-01.com.vmware:esxi_1
Logged by: RAID Controller Module in slot 1



by: nhidalgoPosted on 2009-10-21 at 16:56:01ID: 25629663

Did you open the firewall port on your ESX server for ISCSI.

after doing this enable the iscsi iniator on vmware and type the ip of one of the MD3000i controllers.
Then on the md3000i, you should see this new connection(WWN). Created a server group for this ISCSI connection. Then assign a virtual disk to this new server group.

Also do you have CHAP enabled on the MD3000i or some other authentication?



by: cabmupPosted on 2009-10-21 at 17:41:16ID: 25629850

Hi nhidalgo,

It is an ESXi server so there are no firewall ports to open.  We don't have any CHAP or other authentication enabled.  Other than that, all the steps you outlined have been tried every way possible.



by: paulsolovPosted on 2009-10-21 at 21:40:15ID: 25630859

most likely zoning on the MD3000 if it's not accepting discovery.  I remember in the ESX 3.5 I had an issue with setting up an ESX/ESXi host with capital letters which would mess up the iSCSI IQN.  If you're using capitals for the host try to redo it with lowercase letters and redo the IQN.  Make sure you configure it as an iSCSI initiator on the MD3000 and check the zoning.



by: cabmupPosted on 2009-11-05 at 09:44:14ID: 25751930

Thanks paulsolov.  I just got back from a week's vacation so this is still an active issue.  I'll try renaming the ESXi server and see what that does.



by: cabmupPosted on 2009-11-05 at 11:11:14ID: 31643967

Thanks!  I did two things:

1. Converted the ESXi server name to all lowercase.
2. Removed the "_" from the name.  It was called ESXi_1; it is now esxi1.

Rescanned and it can now see the MD3000i.  Happy days!
