Question

CSS overflow problem

Asked by: mms_master

Hi,

I have a div with "max-height: 800px; overflow: auto;". It's contents are less than 800px high but it's still showing a scroll bar and clipping the bottom of it's contents.

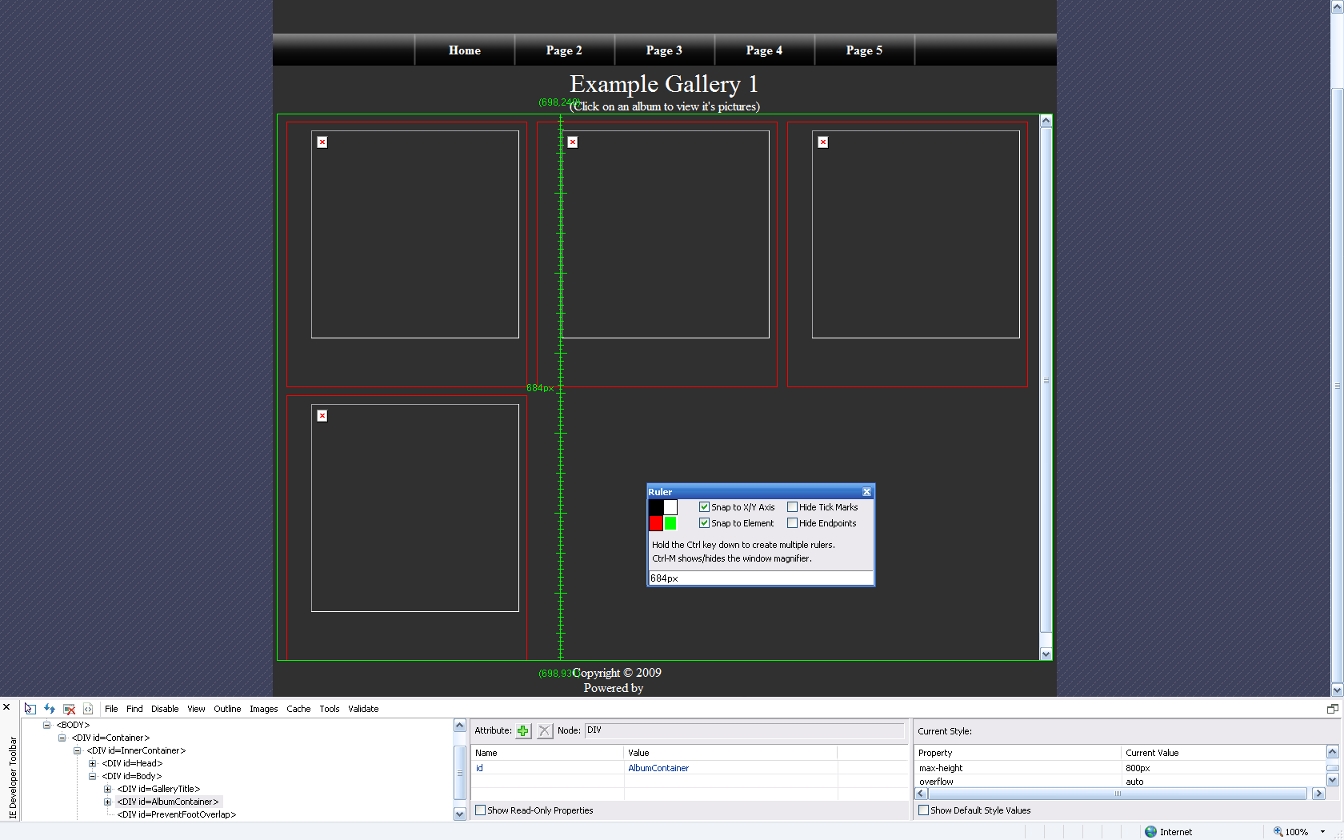

In the attached picture the green outline is the div with max height and overflow set. The green dashed line is a ruler I've used to measure the current height of the div (which is 684px... why? max is 800px...). You can see that the bottom of the red outline on the second row has been clipped and the scroll bar is visible.

The contents of the div are using margins and floats, don't know if this has anything to do with it.

Thanks in advance,

mms_master

==============================================================================
CSS
==============================================================================
div#PicContainer {
			margin: 0;
			padding: 0 61px;
			text-align: center;
			max-height: 800px;
			overflow: auto;

		}

		div.AlbumPic {
			float: left;
			margin: 10px 10px 0px 0px;
			text-align: center;
			border: solid 1px #999999;

			width: 200px;
			height: 200px;
		}

		img.AlbumPic {
			border: none;
			max-height: 200px;
			max-width: 200px;

		}

==============================================================================
HTML
==============================================================================
<div id='AlbumContainer'>
	<a href='album.php?id=2'>
		<div class='Album'>
			<a href='album.php?id=2'>
				<img class='AlbumThumb' src='images/albums/2/thumb.jpg' />
			</a>
		</div>
	</a>
	<a href='album.php?id=3'>
		<div class='Album'>
			<a href='album.php?id=3'>
				<img class='AlbumThumb' src='images/albums/3/thumb.jpg' />
			</a>
		</div>
	</a>
	<a href='album.php?id=4'>
		<div class='Album'>
			<a href='album.php?id=4'>
				<img class='AlbumThumb' src='images/albums/4/thumb.jpg' />
			</a>
		</div>
	</a>
	<div class='Clear'></div>
	<a href='album.php?id=5'>
		<div class='Album'>
			<a href='album.php?id=5'>
				<img class='AlbumThumb' src='images/albums/5/thumb.jpg' />
			</a>
		</div>
	</a>
	<div class='Clear'></div>
</div>


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:

Select allOpen in new window

  • pic.jpg
    • 443 KB

    Div not stretching to 800px

    Div not stretching to 800px

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-06-03 at 14:28:48ID24461770
Tags

css

,

overflow

,

scroll

,

scrollbar

Topics

Cascading Style Sheets (CSS)

,

Hypertext Markup Language (HTML)

Participating Experts
2
Points
500
Comments
9

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. CSS - Div Overflow to the left
    Is there a way to make an image inside of a div overflow to the left? Like, If you have an image that is 200px wide, and it's inside a div that's 100px wide, and this div has it's overflow property equal to hidden, the div will mask the image, only displaying 100 horizaontal ...
  2. CSS margin problems on IE6 with floating DIV
    It's amazing how things so simple can turn into a problem when there is this little thing you overlooked... please help! I have this simple file (see code below) and it works fine on IE7, FF2, OP9.22 and Safari 3. BUT in IE6 the two margins of the floating PageCont and barCo...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: ITGaWDPosted on 2009-06-03 at 14:32:24ID: 24541578

change overflow to hidden or visible and maybe change height to auto so that the div will extend with content, this would work best with overflow: visible



by: KravimirPosted on 2009-06-03 at 16:32:28ID: 24542438

The code you posted doesn't seem to show the problem you described.

By the way, your code has errors. A <div> may not be placed inside a <a> and neither is an <a> allowed inside another <a>.



by: mms_masterPosted on 2009-06-04 at 01:18:15ID: 24544541

@ITGaWD

The example given doesn't contain many albums. But when it's finished it will. The site is written with PHP, I usually create pages with x albums per page. But I wanted to try to create a similar effect to the image search at bing.com.

@Kravimir

Maybe the error is caused by something else on the page. I will have to post the rest of the page when I get home. Thanks for the info regarding the links. What I'm attempting to do is set a background on the div's with red outlines, then I'm going to put another div below the image which will contain the album title. I want to make the div and everything inside it clickable, so the user can click anywhere and not just on the image and title. Is there any way I can do this?

I'm in work at the moment, I will post the rest of the source code later.

Thanks,

mms_master



by: mms_masterPosted on 2009-06-04 at 11:20:18ID: 24549801

I've uploaded my css file along with the full html for the album page.

Rename problem.txt to problem.html
Rename style.txt to style.css

Thanks,

mms_master



by: KravimirPosted on 2009-06-08 at 23:41:18ID: 24578629

I see the problem in IE7 now.  Giving div#AlbumContainer padding-bottom:20px is the only thing that seems to fix it.


P.S. IDs should be unique. The same ID should not be used for multiple elements in the same document. Use a class instead.



by: mms_masterPosted on 2009-06-09 at 11:53:30ID: 24584356

Thanks for getting back to me. The padding does fix it, although there must be something causing it; margins on something else maybe?

As for the ID's, which one have I used for multiple elements? I didn't realise I had.

Thanks,

mms_master



by: mms_masterPosted on 2009-06-11 at 15:14:43ID: 31588535

Thanks



by: KravimirPosted on 2009-06-13 at 23:26:27ID: 24622048

You're welcome.

You gave 11 elements the ID of "NavButton".

It turns out the problem was caused by the div.Clear rule. Use this one instead:

div.Clear {
	clear: both;
	float: none;
	/* some older browsers require the element to have a height of at least 1px */
	height: 1px;
	margin: -1px 0 0;
	padding: 0;
	overflow:hidden; /* for IE5-7 */
}


1:
2:
3:
4:
5:
6:
7:
8:
9:

Select allOpen in new window
