Question

Using XHTML inside a XSLT-styled document

Asked by: spule

Hello. I have the following problem (described in XML comments).

<!-- I have an XML file that looks like this: -->
<page>
  <paragraph>
  Some <strong>text</strong> here.
  </paragraph>
</page>

<!-- I then transform this XML into an XHTML document using an XSLT stylesheet. In that stylesheet, I have the following piece of code. For every "paragraph" element in the input, it writes a "p" element to the output and copies the contents of the "paragraph" element into the "p" element. -->
<xsl:for-each select="paragraph">
  <p>
    <xsl:for-each select="./node()">
      <xsl:copy-of select="." />
    </xsl:for-each>
  <p>
</xsl:for-each>

<!-- The problem is that in the input XML, the tags defined by me and the XHTML tags aren't semantically distinguished. I would like to write something like this: -->
<page xmlns:ht="http://www.w3.org/1999/xhtml">
  <paragraph>
  Some <ht:strong>text</ht:strong> here.
  </paragraph>
</page>

<!-- Here it is clear that my tags aren't in any namespace, while XHTML tags are in the XHTML namespace. Unfortunately, this does not work. The output document then ends up like this: -->
<p>Some <ht:strong xmlns:ht="http://www.w3.org/1999/xhtml">text</ht:strong> here.</p>
<!-- Which is unwanted (browsers don't understand it) and also unnecessary (everything in the document is in the XHTML namespace so there is no need to define a new prefix for it). -->


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:

Select allOpen in new window

This Question has been solved and asker verified All Experts Exchange premium technology solutions are available to subscription members.

Subscribe now for full access to Experts Exchange and get

Instant Access to this Solution

  • Plus...
  • 30 Day FREE access, no risk, no obligation
  • Collaborate with the world's top tech experts
  • Unlimited access to our exclusive solution database
  • Never be left without tech help again

Subscribe Now

Asked On
2009-09-05 at 15:12:43ID24710303
Tags

XSLT

,

XHTML

,

XML

,

stylesheet

,

transformation

,

markup

Topics

Extensible Stylesheet Language Transformation (XSLT)

,

Extensible HTML (XHTML)

,

Hypertext Markup Language (HTML)

Participating Experts
1
Points
500
Comments
22

Trusted by hundreds of thousands everyday for fast, accurate and reliable tech support.

  • "The time we save is the biggest benefit of Experts Exchange to Warner Bros. What could take multiple guys 2 hours or more each to find is accessed in around 15 minutes on Experts Exchange." Mike Kapnisakis, Warner Bros.
  • "Our team likes having a resource that is more secure than just using Google and most experts using this service really know their stuff. It's nice to look here first versus using Google." Dayna Sellner, Lockheed Martin
  • "Anytime that I've been stumped with a problem, 9 out of 10 times Experts Exchange has either the accepted solution or an open discussion of the potential solution to the problem." Kenny Red, eBay Inc.

See what Experts Exchange can do for you.

Got a question?

We've got the answer.

Experts Exchange has been collecting answers to technology questions since 1996…3 million and counting! If you have a question, chances are we already have your answer.

Screenshot of Experts Exchange Knowledgebase

Need individual assistance?

Our experts are ready to help.

If you can't find the exact answer you're looking for, ask our exclusive community of 50,000 experts. You’ll get a personalized answer from a trusted professional.

Screenshot of Experts Exchange Knowledgebase

Want to learn from the best?

Read articles from industry experts.

Thousands of free tech tips, tricks, how-to’s and tutorials are available in our peer reviewed articles section. See for yourself how smart our experts are, no login required.

Screenshot of an Article

Working on a long term project?

Store your work and research.

Save solutions to your questions, answers you’ve discovered through searching plus helpful articles in your personal knowledgebase for easy future access.

Screenshot of Experts Exchange Knowledgebase

Access the answers to your technology questions today.

Subscribe Now

30-day free trial. Register in 60 seconds.

What Makes Experts Exchange Unique?

Members of the expert community talk about why the experience at Experts Exchange is different than what you will find anywhere else.

Trusted by the world's most respected brands.

image of each brand's logo

Faithfully serving IT professionals since 1996.

Experts Exchange Logo

Try it out and discover for yourself.

Subscribe Now

30-day free trial. Register in 60 seconds.

Related Solutions

  1. Conversion From XHTML to XSLT
    if some one has source code in ASP.NET (C#) for Conversion From XHTML to XSLT . plz send me. Thanks in Advance.
  2. Doctype: HTML or XHTML?
    Hello, Nice to meet you all. I am about to start a rather large project involving quite a few DHTML tricks and have sparked quite a debate as to which DOCTYPE to use. Most of my co-workers preach the XHTML Transitional doctype. However, I have been reading evidence that ...

Free Tech Articles

  1. WARNING: 5 Reasons why you should NEVER fix a computer for free.
    It is in our nature to love the puzzle. We are obsessed. The lot of us. We love puzzles. We love the challenge. We thrive on finding the answer. We hate disarray. It bothers us deep in our soul. W...
  2. SCCM OSD Basic troubleshooting
    SCCM 2007 OSD is a fantastic way to deploy operating systems, however, like most things SCCM issues can sometimes be difficult to resolve due to the sheer volume of logs to sift through and the dispe...
  3. Migrate Small Business Server 2003 to Exchange 2010 and Windows 2008 R2
    This guide is intended to provide step by step instructions on how to migrate from Small Business Server 2003 to Windows 2008 R2 with Exchange 2010. For this migration to work you will need the fo...
  4. Create a Win7 Gadget
    This article shows you how to create a simple "Gadget" -- a sort of mini-application supported by Windows 7 and Vista. Gadgets can be dropped anywhere on the desktop to provide instant information, ...
  5. Outlook continually prompting for username and password
    There have been a lot of questions recently regarding Outlook prompting for a username and password whilst using Exchange 2007. There are a few reasons why this would happen and I will try to cover t...
  6. Backup Exchange 2010 Information Store using Windows Backup
    There seems to be quite a lot of confusion around the ability to backup Exchange 2010 using the built in Windows Backup feature. This stems from the omission of this feature prior to Exchange 2007 s...

Cloud Class Webinars

  1. Avoiding Bugs in Microsoft Access
    Alison Balter takes and in-depth look at avoiding bugs in Access. In this webinar you will learn about using the immediate window to debug your applications, invoking the debugger, using breakpoints to troubleshoot, stepping through code, setting the next statement to execute, ...
  2. Top 10 Best New Features in Visio 2010
    Scott Helmers gives live demonstrations of the top 10 new features in Visio 2010. This webinar will teach you how to create compelling diagrams by adding shapes to the page with a single click, linking the shapes in a diagram to data in Excel (or SQL Server, or SharePoint), ...
  3. IT Consultant Business Secrets Revealed
    Michael Munger, Experts Exchange tech pro and IT consultant, pulls back the curtain on his very successful businesses and answers question on every IT consultant and business owner should know about. He shares secrets on what he did to solve the 5 most common problems in IT, ...
  4. Disaster Recovery and Business Continuity
    Quest CTO, Mike Billon, gives an overview of the steps involved in building a dunamic disaster recovery plan. Through case studies and an examination of software/hardware tooles for monitoring and testing, you'll gain a better understandin of where you are, where you want ...
  5. Organize Your Visio Diagrams with Containers and Lists
    Scott Helmers uses cross functional flowcharts, wireframe diagrams, data graphic legends and seating charts to teach you: how to ustilize all three new structured diagram components in Visio 2010, the best practices for organizeing shapes in previous version of Visio, how to organize ...
  6. How to Us Objects, Properties, Events and Methods in Microsoft Access
    Alison Dalter gives an in-depbth look at objects, properties, events and methods in Microsoft Access. In this webinar you will learn about using the object browser, referring to objects, working with properties and methods, working with object variables, understanding the ...

Join the Community

Give a Little. Get a Lot.

Join the community of experts here and help other tech pros by answering question in your area of expertise. You can earn FREE access to all Experts Exchange's premium features and resources.

Join the Community

Answers



by: GertonePosted on 2009-09-06 at 04:20:07ID: 25269459

This is what I think you need
Note also the use of templates instead of for-each.... it is a much better style of programming XSLT

<?xml version="1.0" encoding="UTF-8"?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
<xsl:template match="page">
    <xsl:apply-templates select="paragraph"/>
</xsl:template>
    <xsl:template match="paragraph">
        <p>
            <xsl:apply-templates mode="xhtml"/>
        </p>
    </xsl:template>
    <xsl:template match="*" mode="xhtml">
        <xsl:element name="{local-name()}" namespace="http://www.w3.org/1999/xhtml">
            <xsl:copy-of select="@*"/>
            <xsl:apply-templates mode="xhtml"/>
        </xsl:element>
    </xsl:template>
</xsl:stylesheet>


1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:

Select allOpen in new window



by: GertonePosted on 2009-09-06 at 04:22:04ID: 25269462

This generally makes more sense,
stuffing the <p> in the same namespace

<?xml version="1.0" encoding="UTF-8"?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
<xsl:template match="page">
    <xsl:apply-templates select="paragraph"/>
</xsl:template>
    <xsl:template match="paragraph">
        <xsl:element name="p" namespace="http://www.w3.org/1999/xhtml">
            <xsl:apply-templates mode="xhtml"/>
        </xsl:element>
    </xsl:template>
    <xsl:template match="*" mode="xhtml">
        <xsl:element name="{local-name()}" namespace="http://www.w3.org/1999/xhtml">
            <xsl:copy-of select="@*"/>
            <xsl:apply-templates mode="xhtml"/>
        </xsl:element>
    </xsl:template>
</xsl:stylesheet>

1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:

Select allOpen in new window



by: spulePosted on 2009-09-06 at 10:40:37ID: 25270784

Thank you very much! Can you please explain me, step by step, what exactly this example does? I could never fully understand the apply-templates element, especially the mode attribute.



by: GertonePosted on 2009-09-06 at 13:27:34ID: 25271354

Well, you need to consider templates as some sort of rules.
If you push a certain node to the templates, the processor will check which rule fits best the description of the node
This "pushing" can be done using "apply-templates"

So, if I have this
<xsl:template match="page">
    <xsl:apply-templates select="paragraph"/>
</xsl:template>
Then that means that all the child <paragraph> elements of <page> will be pushed to the templates
These nodes will be picked up by the template for "paragraph"
and the actions found in that template will be executed on these nodes

You can consider mode as an extra parameter for rule matching
if you say
            <xsl:apply-templates mode="xhtml"/>
all children of the current context will be pushed to the templates,
but only the template rules with a mode="xhtml" will be evaluated



by: GertonePosted on 2009-09-06 at 13:31:27ID: 25271369

line by line

<?xml version="1.0" encoding="UTF-8"?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
the stylesheet will start processing at the page element
<xsl:template match="page">
    all paragraph children of the current context will be pushed to the templates ***
    <xsl:apply-templates select="paragraph"/>
</xsl:template>
*** this template will pick up processing of the pushed paragraph node
    <xsl:template match="paragraph">
        create an element with no prefix but in the xhtml namespace
        <xsl:element name="p" namespace="http://www.w3.org/1999/xhtml">
            push all text nodes and child nodes and all to the templates, but only evaluate the templates with the same mode +++
            <xsl:apply-templates mode="xhtml"/>
        </xsl:element>
    </xsl:template>
    +++ exectute this template with all the element childs of paragraph, but also with deeper nested constructs
    <xsl:template match="*" mode="xhtml">
        <xsl:element name="{local-name()}" namespace="http://www.w3.org/1999/xhtml">
            <xsl:copy-of select="@*"/>
            push all text nodes and child nodes and all to the templates, but only evaluate the templates with the same mode +++
            <xsl:apply-templates mode="xhtml"/>
        </xsl:element>
    </xsl:template>
</xsl:stylesheet>



by: spulePosted on 2009-09-07 at 10:01:50ID: 25276234

Also please explain me this: the first template matches the root page element, whilst the third template matches every element. How come that the first template is applied to the entire document, and not the third one?



by: spulePosted on 2009-09-07 at 10:51:30ID: 25276429

Thanks for your solution. When I test it in Firefox, it works as expected. But when I try to run the transformation in NetBeans, it doesn't work. It generates this:

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<META http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Test page</title>
</head>
<body>
<ns104:p xmlns:ns104="http://www.w3.org/1999/xhtml">Some <ns105:strong xmlns:ns105="http://www.w3.org/1999/xhtml">text

then it stops and throws an error:

Using com.sun.org.apache.xalan.internal.xsltc.trax.TransformerImpl - default JRE XSLT processor.
javax.xml.transform.TransformerException
       at com.sun.org.apache.xalan.internal.xsltc.trax.TransformerImpl.postErrorToListener(TransformerImpl.java:773)
       at com.sun.org.apache.xalan.internal.xsltc.trax.TransformerImpl.transform(TransformerImpl.java:716)
       at com.sun.org.apache.xalan.internal.xsltc.trax.TransformerImpl.transform(TransformerImpl.java:313)

I am posting my stylesheet and my input file.



by: spulePosted on 2009-09-10 at 13:13:41ID: 25303806

In Internet Explorer, it seems to work, whereas my approach didn't. But why doesn't it work in NetBeans?



by: spulePosted on 2009-09-10 at 13:18:05ID: 25303845

In IE 6 it doesn't work though. When I navigate to that XML file, IE shows some errors and opens it in an external editor.



by: GertonePosted on 2009-09-10 at 14:09:47ID: 25304394

I don't understand why it doesn't work in netbeans. There is a flaw in their namespace handling in the XSLT processor I am afraid.
Can you trace what the Processor is?

The behaviour in IE is normal if you installed an editor on the same machine which you indicated to be the default editor for XML. That is a problem with internet explorer. I avoid setting any editor as the default for XML in order to avoid this behaviour



by: GertonePosted on 2009-09-10 at 14:10:17ID: 25304403

I will check your full XML and XSLT tomorriow, it is close to midnight here, time for bed



by: spulePosted on 2009-09-11 at 05:17:15ID: 25308585

I'm afraid it's not normal IE behavior. Other XML files (whether XSLT-styled or not) work for me in IE6. Just this one causes problems. It even shows an error when I try to open the error window by clicking that yellow warning icon at the bottom-left...



by: GertonePosted on 2009-09-11 at 13:40:42ID: 25313295

what error does it show?

I tested your files with every possible XSLT processor (at least 8) on my laptop, in 5 different browsers
No problems found, and seriously, from the code, I would know what is wrong.
I think it is a flaw in Netbeans, I will check a Virtual Machine with IE6 later



by: GertonePosted on 2009-09-11 at 13:41:14ID: 25313298

"I would know what is wrong"
should read
"I would NOT know what is wrong"



by: spulePosted on 2009-09-11 at 14:41:21ID: 25313658

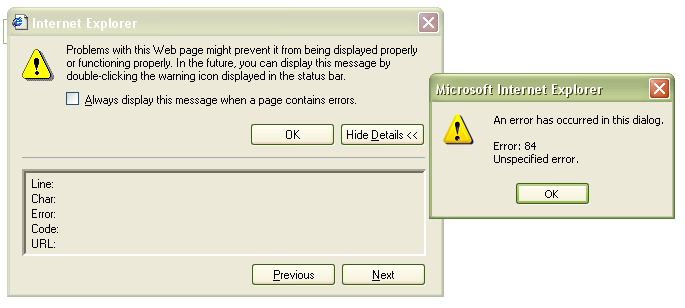

It shows the following window.



by: GertonePosted on 2009-09-11 at 14:43:22ID: 25313678

Can you reproduce that on another machine?



by: spulePosted on 2009-09-12 at 00:33:47ID: 25315522

Thanks for your tip! Actually, I can not reproduce it on other user accounts either. (I use MultipleIEs.)



by: spulePosted on 2009-09-12 at 01:14:38ID: 25315598

I tried another approach: setting the XHTML namespace as the namespace for the whole document and making up my own namespace, using it with a namespace prefix. It doesn't work as expected, though. What am I doing wrong? The output in Firefox is:

<result>
    Some text.
</result>


1:
2:
3:

Select allOpen in new window



by: GertonePosted on 2009-09-12 at 01:24:57ID: 25315618

This works as you would expact,
but the namespaces in XSLT and XML are not equal
xmlns:x="http://ondra.cifka.com/xmlns/2009/webpage" in XML
versus
xmlns:x="http://ondra.cifka.com/xmlns/2009/website" in XSLT



by: spulePosted on 2009-09-12 at 01:27:06ID: 25315624

Oh, I'm sorry, I didn't notice...



by: spulePosted on 2009-09-12 at 01:28:31ID: 31625355

Thank you very much, you taught me a lot!



by: GertonePosted on 2009-09-12 at 02:01:31ID: 25315680

welcome

20120131-EE-VQP-002

3 Ways to Join

30-Day Free Trial

The Experts

98% positive feedback on 31,087 answers since March 2000. angeliii is a Microsoft Most Valuable Professional for his work with MS SQL Server & Develoment.

He has also proven his knowledge of Visual Basic Programming, PHP Scripting and Oracle Databases.

The Experts

97% positive feedback on 10,752 answers since July 2000. lrmoore has more than 18 years experience in the networking industry.

The six-time Mircosoft MVPs specialties include firewalls, virtual private networking, and network management.

Testimonials

"...and excellent source for support... Kind of like having your very own IT dept." Electriciansnet

Testimonials

"I was apprehensive at signing up at first. However... it has already made my life as an IT administrator much easier." JaCrews

Testimonials

"WOW! You guys have great, active, and knowledgeable people on here." moore50

Business Clients

Business Clients

In the Press

"If you’ve got a question... Experts Exchange can supply an answer.”

In the Press

"...an invaluable aid for both IT professionals and those who require tech support."

In the Press

"where IT professionals provide quick answers on just about any topic"

Business Account Plans

Loading Advertisement...
