HOW TO: Create an ISO CD-ROM/DVD-ROM image (*.iso), and MD5 checksum signature, for use with VMware vSphere Hypervisor 7.0 (ESXi 7.0)

Published on
3,213 Points
113 Views
1 Endorsement
Last Modified:
Editors:
Andrew Hancock (VMware vExpert / EE Fellow)
CERTIFIED EXPERT
EE Fellow, 2xMVE, Expert of the Year 2017-2011, Scribe 2016-2012, Author of the Year 2018-6,2013-2012 VMware vExpert 2020-2011
This article will show you how to create an ISO CD-ROM/DVD-ROM image (*.iso), and MD5 checksum signature, for use with VMware vSphere Hypervisor 7.0 (ESXi 7.0). It's a good idea to compare checksums because many installations fail because of a corrupt iso image.
In my previous Experts Exchange Articles, most have featured Basic and Intermediate VMware and Virtualisation Topics.

If you would like to read my Basic VMware articles, they are listed at the end of this article for your convenience.

In this series of basic VMware articles for the Novice, I'll be showing you the basic VMware skills required to install, configure and deploy virtual machines using VMware's FREE VMware vSphere Hypervisor (ESXi).

What is an ISO? (Andy's Layman Definition)
An ISO is an image or bit copy of a CD-ROM/DVD-ROM, the ISO is a file, similar to a compressed archived file, this *.iso file contains the data from a CD-ROM/DVD-ROM. The ISO file is a virtual CD-ROM/DVD-ROM. Using an *.iso file has many advantages, some of which are listed below:-

  • The original CDROM/DVD-ROM can be stored securely and is no longer required after an ISO image has been created.
  • Multiple virtual machines can use the same *.iso concurrently.
  • Computers without a CD-ROM/DVD-ROM reader can use the data stored on the *.iso file.
  • Installing OS (operating systems) or transferring data is faster.


1. Prerequisites



2. Install InfraRecorder


Download InfraRecorder using the link given above. We like to use InfraRecorder, because it is a small lightweight application, and there is a portable version which does not have to be installed. In this article, I'm using the installable 64-bit version - InfraRecorder Windows Installer 64-bit.

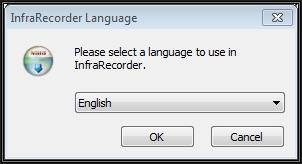

Select the required language and Click OK and continue



At the Welcome to the InfraRecorder Setup Wizard, Click Next to continue



Click "I Agree" to accept the terms of the License Agreement.



Select all the components that are required, and Click Next to continue.



Select the Install Location, and select Install to continue



Click Close to complete the installation.

The installer will complete the software installation, it only takes a few seconds to complete. Click Close to complete the installation.


3. Create an ISO image file


Insert an original operating system CD-ROM/DVD-ROM into your optical media device.  In this example, we are using a Microsoft Windows Server 2019 DVD. The volume label is SSS_X64FRE_EN-US_DV9.



Click Read Disc.
Select your CD-ROM drive, enter a valid Windows filename and click OK to create the ISO. The data will be copied from the CD-ROM/DVD-ROM, and the ISO image will be created.



This can take several minutes to complete.

Select OK to complete the operation. The ISO image file has been created.


4. Creating an MD5 checksum signature of the ISO image file


We will use the MD5 & SHA-1 Checksum Utility to create an MD5 checksum signature for our freshly created ISO image file. This is important, so we can compare these signatures, once we have completed the transfer to our VMware host servers, and confirm the ISO image file has not been corrupted in transfer.



Double-Click and start the MD5 & SHA-1 Checksum Utility 2.1 application. Click browse and select your freshly created ISO image file.


Shortly after selecting the ISO file, the application will start calculating the MD5, SHA-1, SHA-256 and SHA-512 checksums for the file, this can take a few minutes depending upon the size of the ISO image file, which needs to be read.

The MD5 checksum for my Win2k19.iso are:-

MD5 Checksum: 99C9EF14D0D89C17D60B48CB705FA860
SHA-1 Checksum: 55AC0F541BCC9CE2F70AF4227239FC4A6A1E2B6E
SHA-256 Checksum: 42284F69FBB2CE2562605FE3B6E3A6DFC821A29F004D7F3D93216E42E16C1401
SHA-512 Checksum: 2F61898057750F4189D9E981835D517716BF4BA07662B824EB83E34FACE274DEB8899A1FF25A4DE49E6D4DBE436914C7D133FC204E342F369716F5B9B93D8AB3
Generated by MD5 & SHA Checksum Utility @ http://raylin.wordpress.com/downloads/md5-sha-1-checksum-utility

Please note the MD5 checksum value for use with the  VMware vSphere Hypervisor 7.0 (ESXi 7.0)

Congratulations you have successfully created your first ISO (*.iso), and created an MD5 checksum signature for use with VMware vSphere Hypervisor 7.0 (ESXi 7.0).

In my next article in this series, we will show you HOW TO: Upload and Check the MD5 signature of an ISO CD/DVD image to a VMware datastore using the VMware Host Client, for use with VMware vSphere Hypervisor 7.0 (ESXi 7.0)

Basic VMware Articles Series:

These articles are also applicable to VMware vSphere Hypervisor ESXi 5.0, 5.5, 6.0.

These articles are applicable to VMware vSphere Hypervisor 6.5.










These articles are applicable to VMware vSphere Hypervisor 6.7.









Previous articles in this VMware vSphere 7.0 series are here.







Thank you very much! Regards, Andy
