Avatar of jinkilla
jinkilla

COMPAQ LAPTOP ISSUE
When my Presario V2000 boots up I only get the following:
Press <F1> to resume, <F10> to Setup
But the keyboard is non responsive the whole time even during the post.

Zero AI Policy

We believe in human intelligence. Our moderation policy strictly prohibits the use of LLM content in our Q&A threads.

Avatar of joostmeejoostmee

The laptop is most likely giving you a keyboard error, and asking you to pres f1 lol.

Try plugging a usb (or ps/2 if accepted) into the laptop. When it boots hit f1 and see what happens...
Avatar of jinkillajinkilla

ASKER

the only keyboard I have is ps/2 and its not accepted. Is that truly the issue?
Avatar of joostmeejoostmee

It might not be the issue, but as a computer tech that sees this all the time, it's the first thing i would try.
Reward 1Reward 2Reward 3Reward 4Reward 5Reward 6

EARN REWARDS FOR ASKING, ANSWERING, AND MORE.

Earn free swag for participating on the platform.

Avatar of joostmeejoostmee

Or if you like i could walk you through re-seating your keyboard connection.

You most likely have a bad keyboard, or you connection is bad.
Avatar of jinkillajinkilla

ASKER

I am looking for a usb to ps/2 connector now. give me 5 minutes b4 the walk thru. thanx
Avatar of jinkillajinkilla

ASKER

ok i am ready for the walk thru on how to re-seat the keyboard when you are
Free T-shirt

Get a FREE t-shirt when you ask your first question.

We believe in human intelligence. Our moderation policy strictly prohibits the use of LLM content in our Q&A threads.

Avatar of jinkillajinkilla

ASKER

so what do I do?
Avatar of joostmeejoostmee

You will need a small screwdriver, or other sharp object. Use extreme caution, and unplug your laptop first, then REMOVE YOUR BATTERY.

1. Fold the screen all the way back.
2. Above the keyboard there is a strip of plastic that has your power button on it. Carefully lift it up from the right side first using the screwdriver if necessary.
3.Move this piece out of the way.
4.Unscrew the screws along the top of the  keyboard.
5. Lift the keyboard up from the top first, and pull it out, if it does not pull out look on the bottom for any screw holes marked "k" directly under the keyboard.
6. Carefully disconnect the ribbon from your laptop.
7. Re-connect.
8. Replace the power button strip.
9. Good luck.
Reward 1Reward 2Reward 3Reward 4Reward 5Reward 6

EARN REWARDS FOR ASKING, ANSWERING, AND MORE.

Earn free swag for participating on the platform.

Avatar of joostmeejoostmee

If this looks overwhelming try the usb keyboard.
Avatar of jinkillajinkilla

ASKER

doing it now
Avatar of jinkillajinkilla

ASKER

did as u said but to no avail. i need to get a usb keyboard i think
Free T-shirt

Get a FREE t-shirt when you ask your first question.

We believe in human intelligence. Our moderation policy strictly prohibits the use of LLM content in our Q&A threads.

Avatar of joostmeejoostmee

ok. I would give the usb keyboard thing a shot.

:)
Avatar of joostmeejoostmee

Good Luck!
Avatar of jinkillajinkilla

ASKER

thanx
Reward 1Reward 2Reward 3Reward 4Reward 5Reward 6

EARN REWARDS FOR ASKING, ANSWERING, AND MORE.

Earn free swag for participating on the platform.

Avatar of jinkillajinkilla

ASKER

ok bought a brand new usb keyboard and still not working. I cant get past the Press <F1> to resume, <F10> to Setup
Avatar of joostmeejoostmee

Ok the USB support must not be enabled in the bios.

What i would recommend is to either try removing, and re-seating the keyboard yourself, or take it to a local computer shop.

On the screen that says press <F1> does it  happen to say anything else. Anything about an error etc...
Free T-shirt

Get a FREE t-shirt when you ask your first question.

We believe in human intelligence. Our moderation policy strictly prohibits the use of LLM content in our Q&A threads.

Avatar of jinkillajinkilla

ASKER

I did as instructed. I removed the piece of plastic that covered the power button. Unscrewed the keyboard, dis-connected then removed the keyboard. Afterward I re-seated the keyboard and still no success. The only thing the laptop does is 2 beeps prior to Press <F1> to resume, <F10> to Setup. No error code or anything else.
Avatar of jinkillajinkilla

ASKER

should I disconnect the keyboard and then reboot without the keyboard connected? I dont know how to get to the motherboard
Avatar of joostmeejoostmee

sure, but you might get the same error.

sometimes the keyboard ribbon cable has to be re seated in it's connection.

you have to take the whole laptop apart to get to the motherboard. I don't reccommend it.
Reward 1Reward 2Reward 3Reward 4Reward 5Reward 6

EARN REWARDS FOR ASKING, ANSWERING, AND MORE.

Earn free swag for participating on the platform.

Avatar of joostmeejoostmee

Nevermind all that.

You need to replace your cmos battery. This should only cost about 5$.

Below you will find a service manual. You will need a .pdf viewer.

http://h10032.www1.hp.com/ctg/Manual/c00312379.pdf

go to page 153 rtc battery replacement.

HOPE THIS HELPS!!!
Avatar of jinkillajinkilla

ASKER

took the battery out but dont know where to find another one, but will removing the battery do?
Avatar of jinkillajinkilla

ASKER

i put everything back together without the battery and I have the same issue
Free T-shirt

Get a FREE t-shirt when you ask your first question.

We believe in human intelligence. Our moderation policy strictly prohibits the use of LLM content in our Q&A threads.

Avatar of joostmeejoostmee

yeah you need the battery...
Avatar of jinkillajinkilla

ASKER

do you really think that is the issue? i did the online chat thing with compaq and they indicated that it must be hardware but they want $298 and wanted me to mail my laptop to them so they could figure out which piece of hardware. Would a dead motherboard battery cause this much heart ache? Isnt it the same as a desktop in theory in which I mean if the motherboard battery goes dead it just cant retain bios information like date and time. I didnt figure it refuse the system to boot..
Avatar of AliokasAliokas🇮🇪

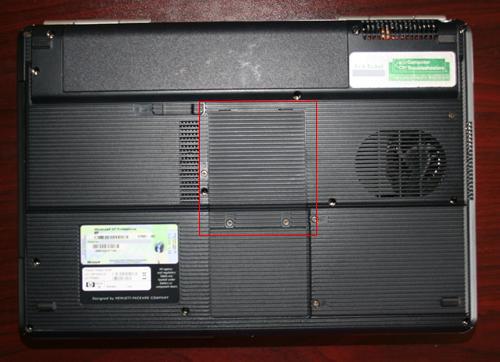

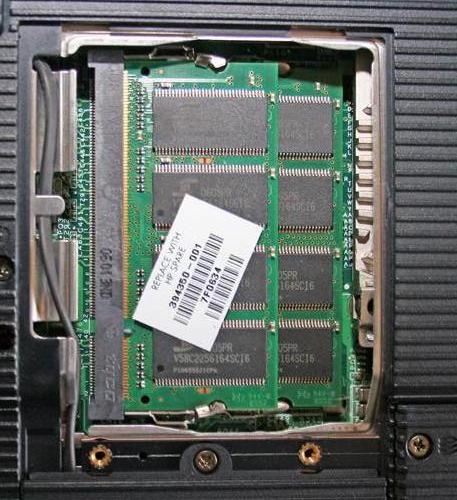

Reseat ram modules, or remove one module, then swap modules - to determine which one is  faulty (if faulty.
Reward 1Reward 2Reward 3Reward 4Reward 5Reward 6

EARN REWARDS FOR ASKING, ANSWERING, AND MORE.

Earn free swag for participating on the platform.

Avatar of jinkillajinkilla

ASKER

ok
Avatar of jinkillajinkilla

ASKER

Aliokas,
I Reseat ram modules,  remove one module, then swapped modules. No Luck. Whats this mess I keep reading in blogs about saudering the mother board?
ASKER CERTIFIED SOLUTION
Avatar of AliokasAliokas🇮🇪

Link to home
membership
Log in or create a free account to see answer.
Signing up is free and takes 30 seconds. No credit card required.
Create Account
Avatar of jinkillajinkilla

ASKER

thanx
