Cisco Call Manager Call Timeout Delay
Call Manager Version 4.1, my calls are taking 15-20 seconds once the last digit is pressed to start the actual "call" - I can see that the call is not being sent to the core voice router from the call managers for this period of time also. I have checked the timeout delays and these have been set to 10000 (10 seconds once the last digit it pressed in service parametres).
Does anyone have any idea's on a solution here?
Thanks
Does anyone have any idea's on a solution here?
Thanks
Last Comment
ASKER
Understandably pressing # will force the call out after the last digit has been pressed however I just don't see this as being a feasible option. The 15-20 seconds delay from the Call Manager passing the call to the router seems excessive, I will try the reboot tonight.
It's sounds like the inter-digit timeout is being involked because there has not been an explicit match to a dial peer or route pattern. In other words, let's say you have a pattern that matches 9.XXXXXXX for 7 digit dialing, but you also have a pattern that matches 9.XXXXXXXXXX for 10 digit dialing. If someone dials 9 and 7 digits, the system will wait the duration of the interdigit timer for additional digits. To avoid this scenario, you should only have a 9.1XXXXXXXXXX for long distance, 9.XXXXXXX for 7 digit dialing and 9.<YYY>XXXXXXX where YYY is equal to any locally dialable 10 digit numbers.
Can you post your diaplan?
Can you post your diaplan?
When did the problem start? Was it after you changed the dial plan or did it just start happening.
As my post said anytime you have an ambiguos dial string were it is possible to have multiple matches then yes you get a delay. Yes please post your dial plan that may help.
As my post said anytime you have an ambiguos dial string were it is possible to have multiple matches then yes you get a delay. Yes please post your dial plan that may help.
ASKER
All phones are in the group "P-Internal" to which the only route pattern defined is "0!" this would explain why it is taking so long for an outbound call. Also do note that restarting the cluster has decreased the time by ~5seconds.
SOLUTION
THIS SOLUTION IS ONLY AVAILABLE TO MEMBERS.
View this solution by signing up for a free trial.
Members can start a 7-Day free trial and enjoy unlimited access to the platform.
ASKER
OK, further more to call patterns do you foresee this causing problems on a live system? Also assuming that generally speaking all changes should be made on the Publisher?
ASKER

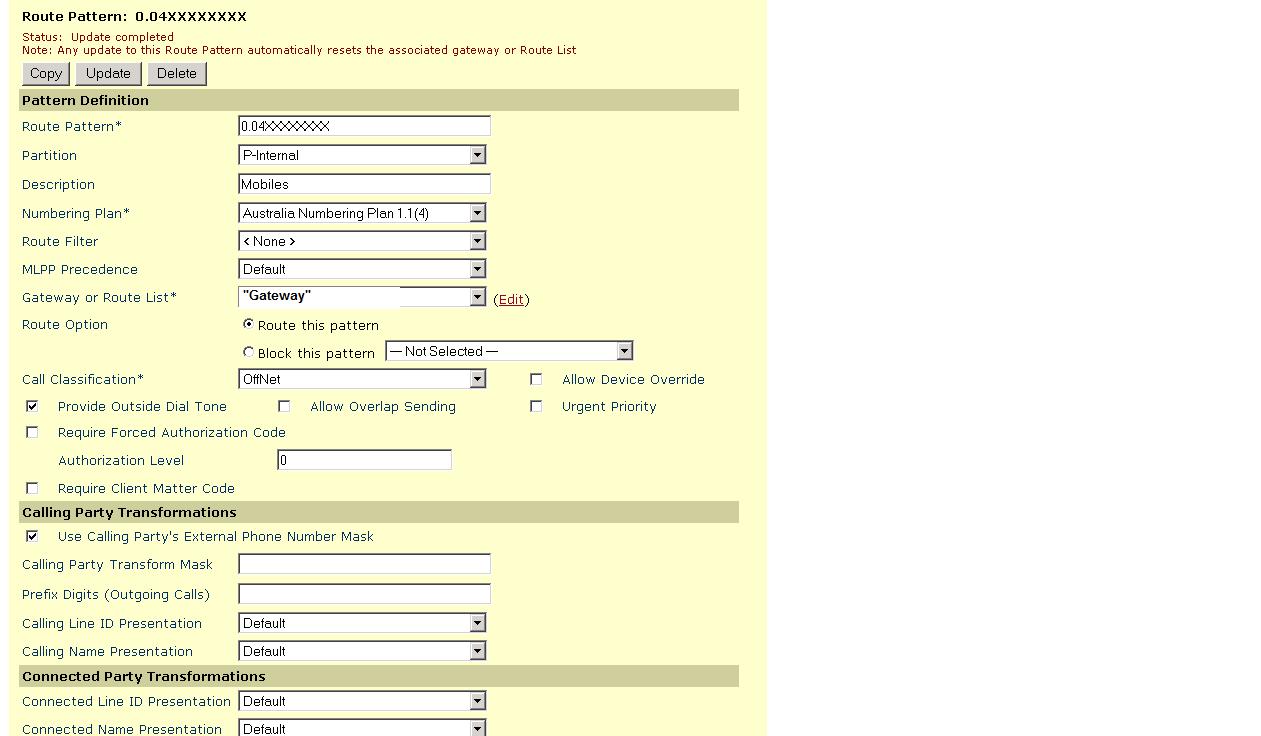

I have attached one of my newly created route patterns for mobiles but calls to mobiles are still taking ~10 seconds (the set interdigit timeout value) rather than matching the route pattern and automatically passing the call to the gateway. Is there any reason why this might be?
ASKER CERTIFIED SOLUTION
THIS SOLUTION IS ONLY AVAILABLE TO MEMBERS.
View this solution by signing up for a free trial.
Members can start a 7-Day free trial and enjoy unlimited access to the platform.
One more thing... if you have multiple patterns that begin the same way, you will still have this problem with the shorter of the two patterns.
For Example:
0.04XXXXXXX
0.04XXXXXXXX
This won't work for the first pattern because it is technically a match to both of these. As a result, the system will wait 10 seconds to see if you enter another digit to match the second pattern. The only way to get around this is to establish unique patterns.
For Example:
0.041XXXX
0.042XXXXXX
Hope that helps.
For Example:
0.04XXXXXXX
0.04XXXXXXXX
This won't work for the first pattern because it is technically a match to both of these. As a result, the system will wait 10 seconds to see if you enter another digit to match the second pattern. The only way to get around this is to establish unique patterns.
For Example:
0.041XXXX
0.042XXXXXX
Hope that helps.
ASKER
This was described perfectly. Now I just have to go away and plan my dial peers. Thanks
