Deploy L3 Switch to Router Network?

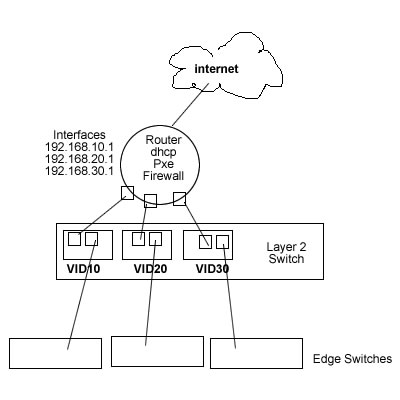

We currently have a router on a stick model network (see image). So, any routing between the sub networks are done through the router. This router also acts as our DHCP, PXe, and Firewall server.

The layer 2 switch is actually a layer 3 switch (surprise!). I'd like to enable routing on this switch to utilise the speed of the layer3 switching. I still want the router there to continue serving as the DHCP, PXe, and Firewall.

After adding interfaces to the switch, devices can now route using the L3 switch. I used ip addresses 192.168.10.2, 192.168.20.2, 192.168.30.2. (I tested this by setting up a device to use one of the interfaces on the L3 switch as a default gateway and I could ping everything on the network except for the router's interfaces)

I'll be changing DHCP to give clients a 192.168.X.2 gateway.

Some things I need help with:
How do I tell the switch to use the router for addresses it doesn't know (e.g. internet)? I'm guessing a default route (0.0.0.0) but which interface of the router do I point this to?

Any thoughts on anything mentioned above?

Zero AI Policy

We believe in human intelligence. Our moderation policy strictly prohibits the use of LLM content in our Q&A threads.

SOLUTION

khdour🇯🇴

membership

Signing up is free and takes 30 seconds. No credit card required.

Create Account

SOLUTION

salunke_vaibhav🇮🇳

membership

Signing up is free and takes 30 seconds. No credit card required.

Create Account

ASKER CERTIFIED SOLUTION

Don Johnston🇺🇸

membership

Signing up is free and takes 30 seconds. No credit card required.

Create Account

HIBS_ICT

ASKER

thanks
