Posted on 2013-02-04
Last Modified: 2013-02-04
Say I have query that produces these results:

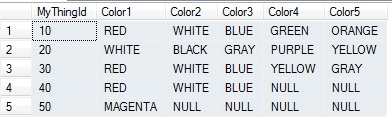

Current results
But I want to pivot the query to produce these results:

Desired results

CREATE TABLE tempdb.dbo.mh_pivot_candidate (
Color1 VARCHAR(25) NULL,
Color2 VARCHAR(25) NULL,
Color3 VARCHAR(25) NULL,
Color4 VARCHAR(25) NULL,

INSERT tempdb.dbo.mh_pivot_candidate VALUES (10, 'RED', 'WHITE', 'BLUE', 'GREEN', 'ORANGE')
INSERT tempdb.dbo.mh_pivot_candidate VALUES (20, 'WHITE', 'BLACK', 'GRAY', 'PURPLE', 'YELLOW')
INSERT tempdb.dbo.mh_pivot_candidate VALUES (30, 'RED', 'WHITE', 'BLUE', 'YELLOW', 'GRAY')
INSERT tempdb.dbo.mh_pivot_candidate VALUES (40, 'RED', 'WHITE', 'BLUE', NULL, NULL)
INSERT tempdb.dbo.mh_pivot_candidate VALUES (50, 'MAGENTA', NULL, NULL, NULL, NULL)

SELECT * FROM tempdb.dbo.mh_pivot_candidate
Question by:MariaHalt
LVL 50

Accepted Solution

Lowfatspread earned 500 total points
ID: 38851893
you can use sql servers unpivot extension to sql

like this

select mythingid,color
from dbo.mh_pivot_candidate as a
unpivot (color for attribute in (color1,color2,color3,color4,color5) ) as unpvt
order by mythingid,attribute

Open in new window

your requirement is actually to unpivot your data from columns into rows ,
pivot means putting rows into columns...

there are several very good articles written by ee members on the usage of the sql server pivot/unpivot extensions   under the sql server 2005/2008 topic areas...

Author Closing Comment

ID: 38851934
Worked perfectly.  Thanks for the explanation too.
