Watchguard dual WAN / Riverbed question
Intro: Currently we are exploring RiverBed WAN Optimization solutions because our MPLS is terrible. Â The MPLS costs $4500 a month. Â We can lease a high-end Steelhead for $1500 a month. Â I am exploring the idea of dropping the MPLS, getting a secondary "Business SDSL" type connection at both sites, and tunneling between them. Â This keeps business and internet traffic separate and allows a high-availability situation.
Essentially I want to know if this is a valid &Â feasible configuration. Â I do not know if the Watchguard can handle all of this. Â Basically I would be costing a route over one interface and establishing the tunnel via that route. Â We do not currently have OSPF running on the WG's, but we can add that no problem.

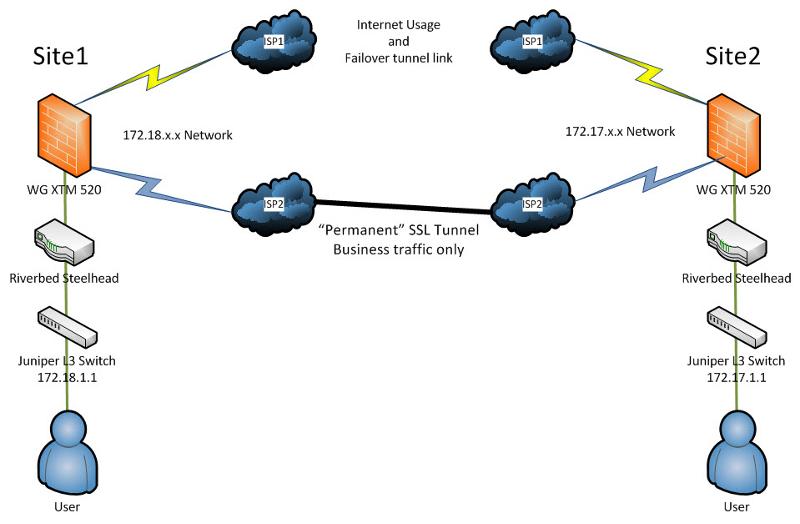

Ideally each site would have an internet connection "permanently" tunneled for business use &Â syncing the Steelheads... and another for regular internet usage. Â If these business lines drop on either end, the Watchguard will fail over and use the other ISP to renegotiate the SSL tunnel. Â Users would only notice a short "blip" in their connection. See Visio:
Thanks for any help!
Essentially I want to know if this is a valid &Â feasible configuration. Â I do not know if the Watchguard can handle all of this. Â Basically I would be costing a route over one interface and establishing the tunnel via that route. Â We do not currently have OSPF running on the WG's, but we can add that no problem.
Ideally each site would have an internet connection "permanently" tunneled for business use &Â syncing the Steelheads... and another for regular internet usage. Â If these business lines drop on either end, the Watchguard will fail over and use the other ISP to renegotiate the SSL tunnel. Â Users would only notice a short "blip" in their connection. See Visio:
Thanks for any help!
Zero AI Policy
We believe in human intelligence. Our moderation policy strictly prohibits the use of LLM content in our Q&A threads.
ASKER CERTIFIED SOLUTION
membership
Log in or create a free account to see answer.
Signing up is free and takes 30 seconds. No credit card required.
I asked around in multiple different places and it sounds like this is do-able. Â Thanks.
HI All,
Recently we are integrating Riverbed WAN Optimizer with Watchguard Firewall/VPN, how the riverbed &Â Watchguard setup? WAN optimizer and Firewall/VPN inline integration? or Wan Optimizer and Firewall/VPN off-path integration?
So far i research the integration Riverbed solution across the firewall/VPN for Juniper, fortinet, Sonicwall are workable.
Please advise.
Thanks,
Steven Siow
Recently we are integrating Riverbed WAN Optimizer with Watchguard Firewall/VPN, how the riverbed &Â Watchguard setup? WAN optimizer and Firewall/VPN inline integration? or Wan Optimizer and Firewall/VPN off-path integration?
So far i research the integration Riverbed solution across the firewall/VPN for Juniper, fortinet, Sonicwall are workable.
Please advise.
Thanks,
Steven Siow
Hello Steven,
Typically the Steelhead would be placed physically in-path on the inside of the network.
LAN --> Steelhead --> Firewall --> Router --> Firewall --> Steelhead --> LAN
Although other deployment options are available, including having the Steelhead between the firewall and router instead. Â In some cases this is easier as it removes the possibility of the firewall stripping the Steelhead probe.
Regards,
Suncore
Typically the Steelhead would be placed physically in-path on the inside of the network.
LAN --> Steelhead --> Firewall --> Router --> Firewall --> Steelhead --> LAN
Although other deployment options are available, including having the Steelhead between the firewall and router instead. Â In some cases this is easier as it removes the possibility of the firewall stripping the Steelhead probe.
Regards,
Suncore
