use case diagram and scenario
hello experts
could you please confirm my solution for the following problem regarding use case?


Consider the following requirements:
• When a person enters the room (that is, the room is occupied) and it is dark outside, the
system should turn on the light.
• When the last person leaves the room (that is, the room is not occupied), the system
should turn off the light.
• When it gets bright outside and the light is on, the system should turn off the light.
• When it gets dark and the room is occupied, the system should turn on the light.
Draw a use-case diagram for the listed requirements. Additionally provide a scenario
description.


my solution for use case is :
User generated image



my solution for scenario is:
Scenario: turning on the light
-      Weather is getting dark
-      Sensor detecting darkness outside the room
-      Sensor detecting somebody is inside the room
-      System will turn on lights

Zero AI Policy

We believe in human intelligence. Our moderation policy strictly prohibits the use of LLM content in our Q&A threads.

Avatar of TommySzalapskiTommySzalapski🇺🇸

Do you have occupancy sensors or people entering and leaving sensors?
I don't see you turning the lights off ever but the requirements definitely say you should.
Avatar of alirezakavehalirezakaveh🇦🇪

ASKER

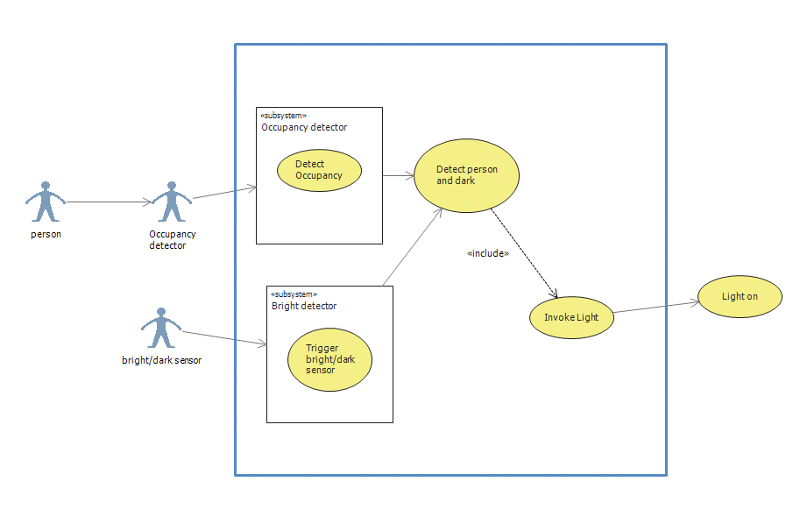

yes you are right i changed it to this diagram

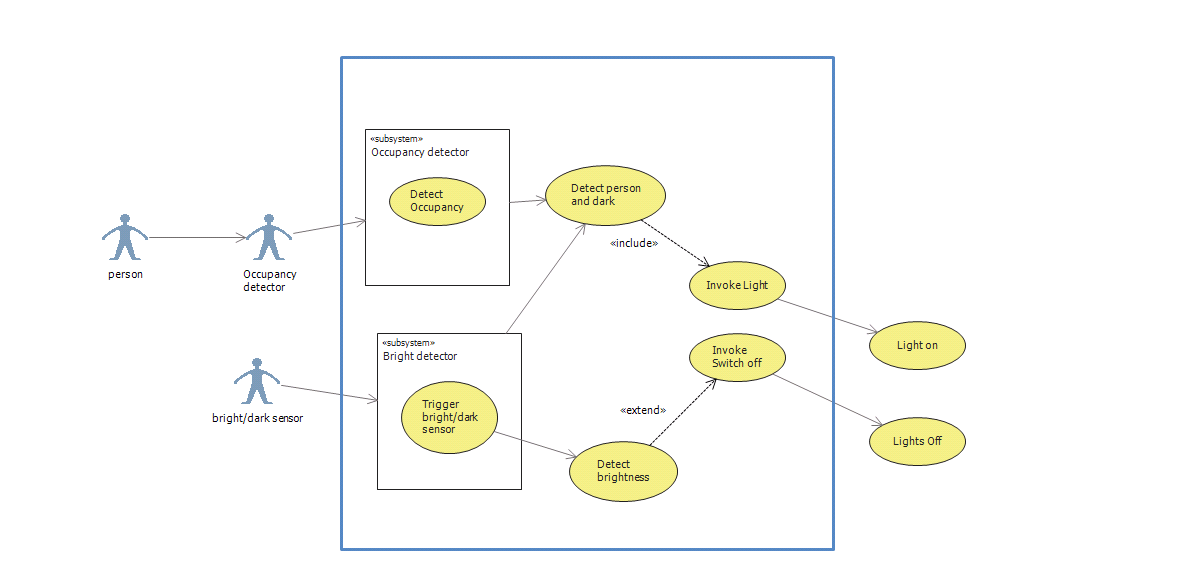

User generated image
Avatar of TommySzalapskiTommySzalapski🇺🇸

You are missing the case where it is dark outside but the room is empty.
Reward 1Reward 2Reward 3Reward 4Reward 5Reward 6

EARN REWARDS FOR ASKING, ANSWERING, AND MORE.

Earn free swag for participating on the platform.

Avatar of alirezakavehalirezakaveh🇦🇪

ASKER

it can't be concluded from the case darkness and person detection will cause the light on?
ASKER CERTIFIED SOLUTION
