Acrobat XI Measuring Tool, Units Displayed

Posted on 2013-12-16
8
1,302 Views
Last Modified: 2013-12-20
I have a user that is using Acrobat XI Standard.  He is using the measuring tool.  Normally, when he has the scale ratio set, the units displayed when he measures on the document are read out in the second unit in the scale ratio.  In other words, he has the first part of the Scale Ratio set as 1 Inch, then that EQUALS 40 Feet.  (The PAGE UNITS is set to inches).
When he then draws a line (an inch long), the displayed number is 1.  Normally, it would say 40 feet.  He says he has been using it fine for many months, and today it reads 1 rather than the 40 feet.
In addition, it would usually say 1 INCH, if that is what it was equal to.  This just says 1.  No reading of units.
If anyone has a suggestion, I would appreciate it.  I looked in the Measure Preferences, and the Properties.  I tried toggling "Use Scale and Units from Document (when present)," that did not change anything.  I toggled "Enable Measurement Markup," that did not change anything.
0
Comment
Question by:pogo1800
  • 4
  • 4
8 Comments

LVL 18

Expert Comment

by:Steven Harris
ID: 39721705
Check the Preferences (ctrl+k) for Measuring (Geo) for similar values.

Measuring (Geo)
0


Author Comment

by:pogo1800
ID: 39721718
I'm not sure what your suggestion is exactly.

What do you mean by "similar values?"

What setting would I change in order to fix my issue?

I do not see anything that would allow me to see the correct units displayed on the measurements made on the PDF.
0

LVL 18

Expert Comment

by:Steven Harris
ID: 39721750
What I am looking for is the deviation between the values I displayed and the values that are in use.  I am not able to reproduce the issue on my machine.
0
Comprehensive Backup Solutions for Microsoft

Acronis protects the complete Microsoft technology stack: Windows Server, Windows PC, laptop and Surface data; Microsoft business applications; Microsoft Hyper-V; Azure VMs; Microsoft Windows Server 2016; Microsoft Exchange 2016 and SQL Server 2016.



Author Comment

by:pogo1800
ID: 39722295
I have no idea what you are talking about.  Are you asking me a question?  Did you read what my issue was?  I don't mean to sound mean, but I think you might be mistaken about what entry your are commenting on.
0

LVL 18

Expert Comment

by:Steven Harris
ID: 39722422
I apologize if I am not being clear.  I have not been able to reproduce this error on my machine, so I am looking for feedback on your current setup - It may be better to ask this as a question:

What are the current settings of the Measuring (Geo) page?  Can you provide a screenshot for verification?  Can you also verify the settings used on the Measuring (2D) and Measuring (3D) pages?

One other thing to note is that by changing the settings, they are enabled for future measurements and will not affect the current measurements, so after each setting is changed, you will need to make a new measurement to verify the changes.
0


Author Comment

by:pogo1800
ID: 39722471

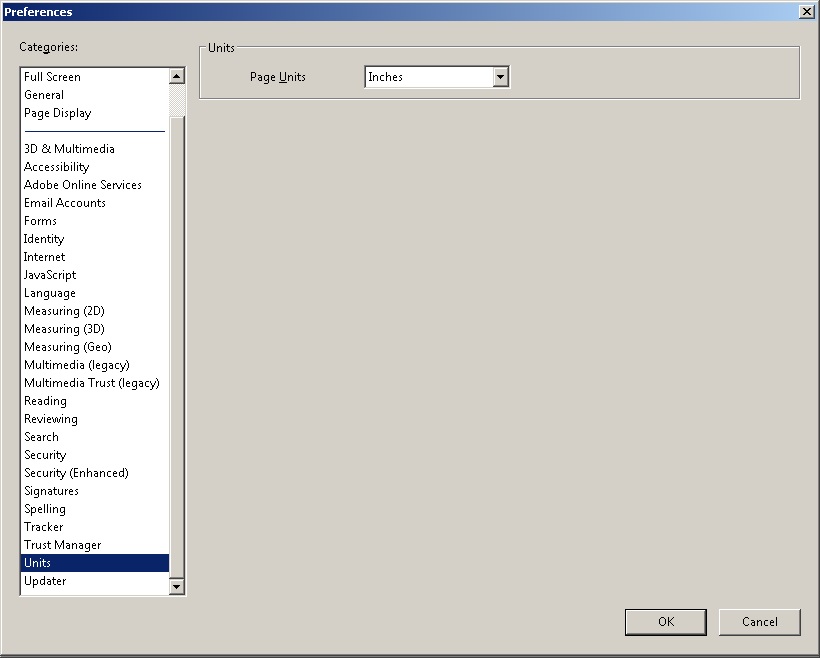

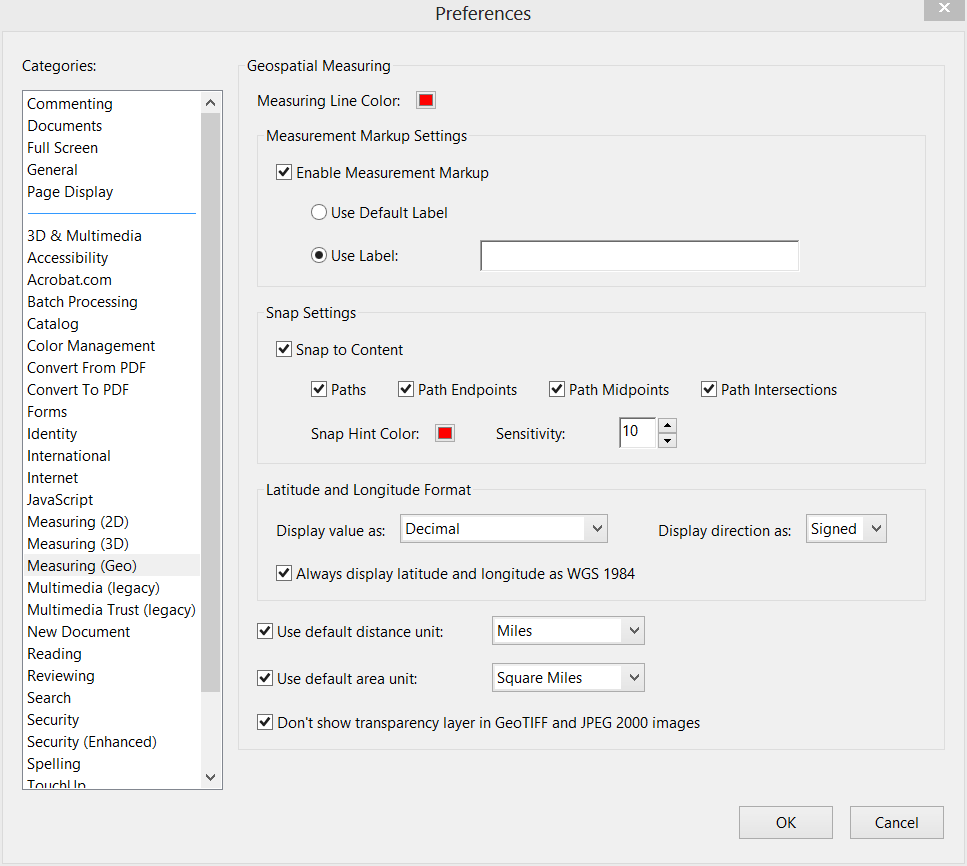

Ok, sorry.  I am attaching all of the screen shots.  It is a matter that the display on the line, where I would expect to see say, 30 Feet, or 10 Yds, I see simply, 1.00.  Yes, 1.00.  No 1 Inches.  Just 1.00.  If I pull it out longer, it does get larger, 1.05, 1.25, etc.  But the ratio is set to 1 inch = 40 feet.  On other machines, I see the line labeled 40 feet.
I haven't uninstalled and reinstalled yet which I will do, just wondering if anyone knew if there was a reason that the label on the measured line would not display as the ratio'd number.
0

LVL 18

Accepted Solution

by:
Steven Harris earned 500 total points
ID: 39722538
Thanks for the screenshots.

I have replicated your settings exactly and I am still unable to reproduce the display error.

The last question I would have is:

Is this the only document in which this error occurs, or does this happen all of the time now, no matter the document source?

If this is a rampant error at this point, I would venture to say that a re-install/repair may be necessary.
0


Author Closing Comment

by:pogo1800
ID: 39732858
The issue was that the PDF document was corrupt.
0
