Solved

SCCM 2012 R2 deploy Win7 task sequence?

Posted on 2014-01-08
5
1,464 Views
Last Modified: 2014-01-10
Hi folks,

I've recently installed SCCM 2012 R2 (first time user), and ran a Build and Capture task sequence successfully.
I now created a deploy existing image task sequence and it fails during Applying OS part of task sequence.

I noticed when I collected the smsts.log from the client (VM), I had lost my IP address.  I was able to renew it, but maybe has something to do with failure?

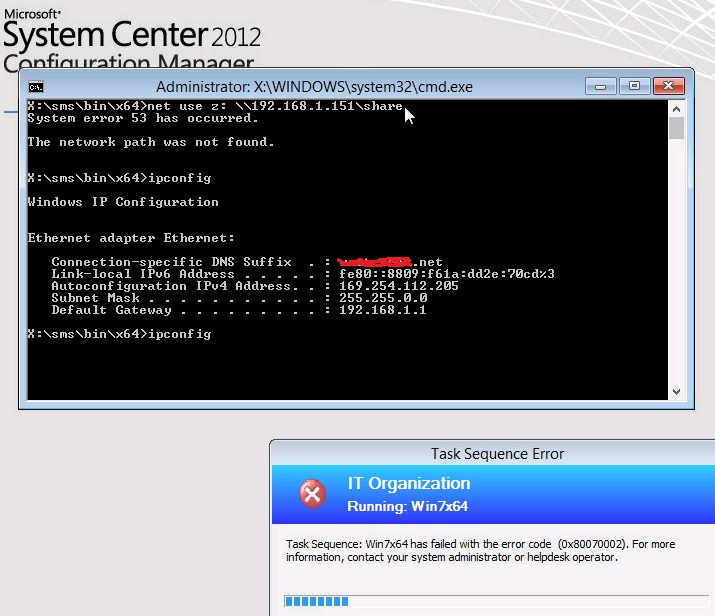

I've attached pics of errors in log and configuration.

Anyone have suggestions?

Thanks,

romatlo
0
Comment
Question by:romatlo
[X]
Welcome to Experts Exchange

Add your voice to the tech community where 5M+ people just like you are talking about what matters.

  • Help others & share knowledge
  • Earn cash & points
  • Learn & ask questions
  • 2
  • 2
5 Comments

LVL 12

Assisted Solution

by:David Paris Vicente
David Paris Vicente earned 100 total points
ID: 39765105
I believe that you have to apply data image 1 first and next the operating system.

So edit your task sequence, select apply data image 1 and move it up one step.

I hope this could be the issue.


Regards
0

LVL 31

Accepted Solution

by:
merowinger earned 400 total points
ID: 39765306
You have to make sure the correct Network Driver for that model is included in the boot Images.
0


Author Comment

by:romatlo
ID: 39765629
Thanks for responses!
I did move up the apply data image to above Apply OS, but still failed with same error.
I also tried a new task sequence using default install.wim from Win7 DVD, same failure.

I did get a capture previously from same vmware vm (e1000 NIC), so I guess I was thinking that NIC should be working.

Still testing...
0

LVL 31

Expert Comment

by:merowinger
ID: 39767268
On which step exaclty does it fail? Can you please post the smsts.log file here.
http://www.techforcast.com/2012/03/where-is-smstslog-located.html
0


Author Comment

by:romatlo
ID: 39772810
After following your suggestions, it led me to find my problem.  My DHCP lease time was set to 5 minutes (from other testing).
I changed it to 8 hours and working now!

I guess this did not affect me during build and capture, but did on deploy.
I will close this thread.
0
