Need help with SSL Certificates on Exchange 2007 (SBS 2008)

Posted on 2014-03-09
Last Modified: 2014-03-09

I have a client who has a quarterly PCI Compliance assessment done and right now the server is not compliant. This picture is from the PCI Compliance company and was the security risk they discovered  PCI Compliance Message

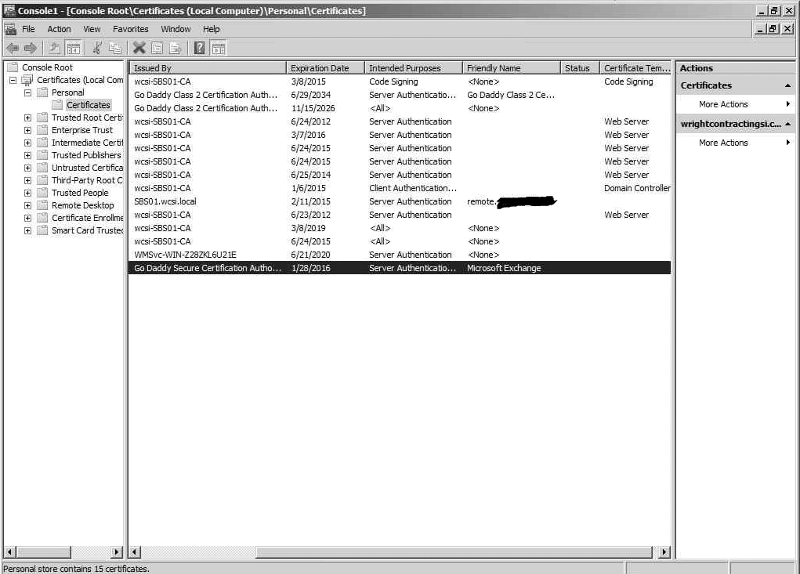

I'm trying to clean up the SSL Certs but I'm not very experienced with them. When I looks at all of the certificates on the Server itself (using Certificates MMC Snap-in), it shows all of these certificates. Certificates listed in the Certificates MMC
Then when I run "Get-ExchangeCertifcates" from the Exchange Shell, i get the following results. Results from the Get-ExchangeCertificates command in Exchange Shell
We are using a GoDaddy cert that should cover everything but it doesn't look like the certificates are installed properly.

Any advice on how to clean this up and to resolve the issue with the PCI Compliance?

Question by:bhodge10
Welcome to Experts Exchange

Add your voice to the tech community where 5M+ people just like you are talking about what matters.

  • Help others & share knowledge
  • Earn cash & points
  • Learn & ask questions
  • 4
  • 3
  • 2
  • +1
LVL 58

Accepted Solution

Cliff Galiher earned 500 total points
ID: 39916494
This happens when you don't use the SBS wizard to install certificates. Since SBS runs more than just exchange, there are several places that the certificate has to be bound to, and exchange walkthroughs on the web don't cover the non-exchange bits. SBS's wizard was written to cover ALL of those pieces.

Simply run the SBS wizard. I'd recommend generating a new CAR and then using that to "rekey" your SBS certificate. Rekeying is free and avoids any mismatched public/private key issues.

Expert Comment

by:Esteban Blanco
ID: 39916496
I can help you but explaining over EE may be difficult for me.  I wish I could do a call/remote support.  I have done PCI and certificate management many times.

Be sure that all your websites and Exchange have the latest certificate.  If you are using any type of load balancer, also ensure that the certs are applied there.  You may need OpenSSL to split the certs open.

Every certificate has to have the proper chain (certificate authority, intermediate and the cert itself).  In Go Daddy's website, you should be able to download the CA, IC and the cert and install them using that very .mmc you have.

Let me know if that makes sense what I am saying.

Author Comment

ID: 39916497
In the past, I've tried running the SBS Wizard but it doesn't show the Godaddy cert even after doing an import.

Do I generate the new CAR from the wizard as well?
Optimizing Cloud Backup for Low Bandwidth

With cloud storage prices going down a growing number of SMBs start to use it for backup storage. Unfortunately, business data volume rarely fits the average Internet speed. This article provides an overview of main Internet speed challenges and reveals backup best practices.


Expert Comment

by:Esteban Blanco
ID: 39916503
OH SBS!  YES!  You have to generate everything from SBS's wizard.  Then you should be able to get the certificates installed properly.
LVL 58

Expert Comment

by:Cliff Galiher
ID: 39916504
The import issue is often because of mismatched keys. Hence the suggestion to generate a new CSR (not CAR. That was a typo) and rekey. Then it isn't an import, but a new matched certificate.
LVL 58

Expert Comment

by:Cliff Galiher
ID: 39916505
And yes, generate the new CSR in the wizard.

Author Comment

ID: 39916512
Ok, I've generated the new CSR and completed the wizard. How do I check to see if the new Cert is covering everything and is there a way to clean up all of the extra certs? Is it safe to just delete every certificate other than the newly generated one?
LVL 58

Expert Comment

by:Cliff Galiher
ID: 39916515
No. Some of the certs are internal and necessary. I wouldn't delete anything. GoDaddy will revoke certs they've rekeyed so no worries there. As far as checking....if the wizard completed, rescan.
LVL 80

Expert Comment

by:David Johnson, CD, MVP
ID: 39916611
a good place to check your site is

Author Closing Comment

ID: 39916619
This was an issue I was dealing with for awhile now and with your help, the server is now PCI compliant.
