Fine tune column chart c#

Posted on 2014-08-04
Last Modified: 2014-08-04

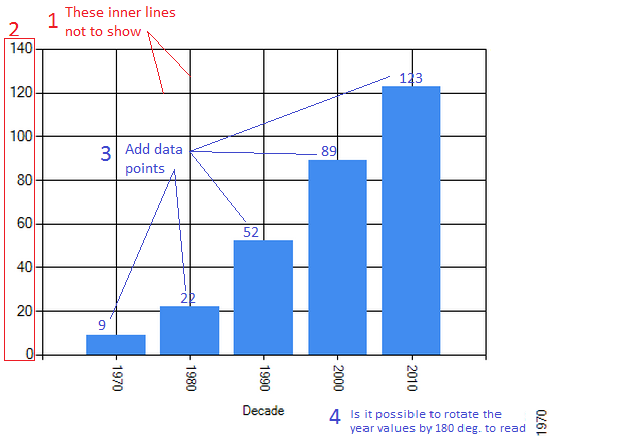

There are 4 items numbered 1 through 4 on the attached image. I hope to be able to do them by revising the code below:

Question: Could you please review to see if all or some of them doable?

Thank you.
    protected void Page_Load(object sender, EventArgs e)
            var chartImage = new Chart();
            chartImage.Width = 600;
            chartImage.Height = 400;

            //chartImage.Titles.Add("Sample Chart");
           // chartImage.Legends.Add(chartImage.Series[0].Name); // optional, show legend

            // add data points
            object[] xValue = { "1970", "1980", "1990", "2000", "2010" };
            object[] yValues = { "9", "22", "52", "89", "123" };
            for (int x = 0; x < xValue.Length; x++) {
                chartImage.Series[0].Points.AddXY(xValue[x], yValues[x]);} // may need to cast to double, if "option strict"
            chartImage.ChartAreas.Add("chartArea0"); // always need to add this
            chartImage.ChartAreas[0].AxisX.Title = "Decade"; // optional, show axis x title
           // chartImage.ChartAreas[0].AxisY.Title = "Incidence"; // optional, show axis y title
            chartImage.ChartAreas[0].AxisX.LabelStyle.Angle = 90;
            chartImage.ImageStorageMode = ImageStorageMode.UseImageLocation; // avoid having to define http handler for now, simpler for quick testing
            this.Controls.Add(chartImage); // add to page for automatic rendering

Open in new window

Question by:Mike Eghtebas
    LVL 35

    Accepted Solution

    Give these a try:
                // 1 don't show grid
                chartImage.ChartAreas[0].AxisX.MajorGrid.Enabled = false;
                chartImage.ChartAreas[0].AxisY.MajorGrid.Enabled = false;
                // 2 remove y labels?
                chartImage.ChartAreas[0].AxisY.LabelStyle.Enabled = false;
                // 3 show value
                chartImage.Series[0].IsValueShownAsLabel = true;
                chartImage.Series[0].LabelForeColor = System.Drawing.Color.Blue;
                // 4 rotate x labels
                chartImage.ChartAreas[0].AxisX.LabelStyle.Angle = 90;

    Open in new window

    LVL 33

    Author Comment

    by:Mike Eghtebas
    Hi Rober,

    Thank you very much for the very good solution you gave to me. As shown on the attached image:

    1. The border for ChartAreas[0] is also eliminated in removing the major axis. I tired to use the line below but it didn't work:
    chartImage.ChartAreas[0].BorderColor = System.Drawing.Color.DeepPink;

    2. Is it possible to remove the y-axis graduation as well?


    LVL 35

    Expert Comment

    by:Robert Schutt
    Try this:
    1. Besides setting BorderColor, also set (not really sure why...):
    chartImage.ChartAreas[0].BorderDashStyle = ChartDashStyle.Solid;

    Open in new window

    2. What you call graduation is called tick marks:
    chartImage.ChartAreas[0].AxisY.MajorTickMark.Enabled = false;

    Open in new window

    LVL 33

    Author Comment

    by:Mike Eghtebas
    Thank you very much for the solution.

    I have a follow up question if you have a couple of minutes (in your case probably couple of second because you seem to be very comfortable with the subject).


    LVL 33

    Author Closing Comment

    by:Mike Eghtebas
    Thank you.
