VMWARE Host Purple Screen of Death

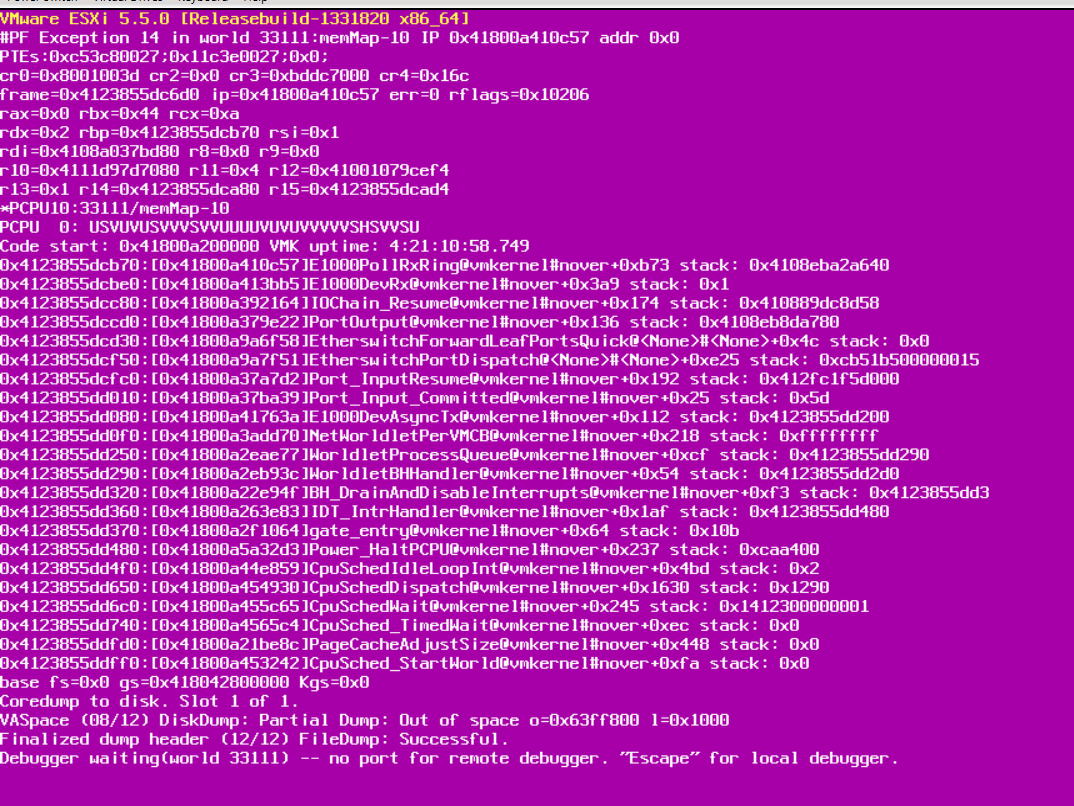

My VMWare Host running ESXi5.5.0 has started to crash every other day.  Not sure why, no physical changes have been made to this server.  I have attached the Purple Screen of Death.  Any Ideas???

Avatar of undefined
Last Comment

8/22/2022 - Mon
Jeremy Bromley

Looks like a memory issue to me...
Seth Simmons

what server is this running on?  is it supported?
any custom images being used?
is the firmware for the system current?
Jeremy Bromley

There is also a patch which relates to the specific error message you are getting - might be worth getting this and updating...

It looks like the error relates to the PageFile for VMware, so it is possibly either memory or HDD related.

#PF Exception 14 patch
I started with Experts Exchange in 2004 and it's been a mainstay of my professional computing life since. It helped me launch a career as a programmer / Oracle data analyst
William Peck
Andrew Hancock (VMware vExpert PRO / EE Fellow/British Beekeeper)

Often, when PSOD occur, it's due to a hardware or driver issues.

1. Check Hardware, Run Diagnostics, Run Memtest86+ for memory.

2. Check CPUs, Heatsinks and Fans

3. Check no new hardware has been added.

4. Check the Hardware is certified for use with ESXi 5.5.

see the HCL

Check the VMware Hardware Compatability Lists HCL here

The VMware Hardware Compatibility List is the detailed lists showing actual vendor devices that are either physically tested or are similar to the devices tested by VMware or VMware partners. Items on the list are tested with VMware products and are known to operate correctly.Devices which are not on the list may function, but will not be supported by VMware.


5. Update ALL BIOS and firmware for the hardware from the latest Smartstart Firmware DVD.

6. Make sure the OEM HP version of ESXi 5.5 is in use, download from HP/VMware site.

This server has been up and running perfectly for over a year.  The only new changes recently have been upgrades to Windows Server 2012 R2.  It may be a driver issue with the new OS.  I saw a KB article on VMWare that speaks to the NIC Driver (specifically E1000e).  Is there a way to look at the Nic to see what driver it is using from the Edit Settings console?  I see three options for nics.  E1000, E1000e and VMNic3.  Any suggestions on which to use?
Andrew Hancock (VMware vExpert PRO / EE Fellow/British Beekeeper)

You SHOULD always always always use the VMXNET3.

It's been that way since, forever....

Use the E1000 for installation, and then switch it...to VMXNET3.
Try out a week of full access for free.
Find out why thousands trust the EE community with their toughest problems.
Jeremy Bromley

I wouldn't have thought that upgrading one of the internal VMs would cause a PSOD though, sounds much more like hardware to me...
Andrew Hancock (VMware vExpert PRO / EE Fellow/British Beekeeper)

View this solution by signing up for a free trial.
Members can start a 7-Day free trial and enjoy unlimited access to the platform.
See Pricing Options
Start Free Trial
Ask your own question & get feedback from real experts
Find out why thousands trust the EE community with their toughest problems.

2 mayor updates are released to ESXi 5.5 since you installed it.

Look at the top of backtrace? What do you see?

I see the crash message listed world ID 33111, if your log file location is persistant, you could check your vmkernel and VM specific logs to see which VM was using this world ID at the time of the crash.

As other have suggest you could try and change the NIC type of VMXNET3 and see if the crashes stop
Experts Exchange is like having an extremely knowledgeable team sitting and waiting for your call. Couldn't do my job half as well as I do without it!
James Murphy

Thanks Andrew
