BootCamp Partition - Lost Windows Partition MBR

Posted on 2016-08-06
4
36 Views
Last Modified: 2016-09-21
I have been using BootCamp on my mac for years, with no issues.  About 6mo ago, I noticed I needed more space on my Windows Side, so I resized my partitions... everything seemed to go fine... I am running windows 10 on the Windows side & El Capitan on the Mac Side...

I really do not use the Mac side barely at all, but I want to be able to have both, the best of both worlds...

So basically I went to go onto my Mac side yesterday & rebooted into the Mac side, no problems!  Did what I needed to on that side & then went to Restart in Windows Partition & there is NO windows Partition anymore in the Startup Disk ... It just has the Mac OS X ... I am guessing I never saw any issue before this because I never went to the mac side...

I really don't want to have to do a FRESH install of both again... if I can help it...

IS THERE ANY SOLUTION  or an EASY FIX ( I know I am reaching... hoping & praying ) to get the MBR back in some way?  that is what it looks like as I was searching around...

I tried to do what this article said, but nothing changed...  http://nerdr.com/bootcamp-partition-lost-repairing-mac-partitions/

When I restart & hold down the OPTION key, 3 choices come up, Mac OS X / Recovery / Windows, when I choose Windows it says, MISSING OPERATING SYSTEM...

I want to be able to at least get the data off the drive & really don't want to pull my iMac apart to get to the hard drive & then if the data is even there??

Will the data be there??  in Disk Utility I can see there 500gb of Untitled, but I know that was my Windows Partition, before I ever tried to resize... the resized partition should be 750gb I think...

Anyway, I hope someone can help...

This something else I ran, hopefully it will be helpful to someone that can read it & know what it is saying...

From Terminal:
Last login: Sat Aug  6 18:20:15 on console
Etronics6-iMac:~ etronics6$ sudo gpt -r -vv show disk0
Password:
gpt show: disk0: mediasize=1000204886016; sectorsize=512; blocks=1953525168
gpt show: disk0: Suspicious MBR at sector 0
gpt show: disk0: Pri GPT at sector 1
gpt show: disk0: Sec GPT at sector 1953525167
       start        size  index  contents
           0           1         MBR
           1           1         Pri GPT header
           2          32         Pri GPT table
          34           6
          40      409600      1  GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
      409640   591229312      2  GPT part - 48465300-0000-11AA-AA11-00306543ECAC
   591638952     1269536      3  GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC
   592908488   384055096
   976963584   976560128      4  GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
  1953523712        1423
  1953525135          32         Sec GPT table
  1953525167           1         Sec GPT header
Etronics6-iMac:~ etronics6$ sudo fdisk /dev/disk0
Disk: /dev/disk0      geometry: 121601/255/63 [1953525168 sectors]
Signature: 0xAA55
         Starting       Ending
 #: id  cyl  hd sec -  cyl  hd sec [     start -       size]
------------------------------------------------------------------------
 1: EE 1023 254  63 - 1023 254  63 [         1 -     409639] <Unknown ID>
 2: AF 1023 254  63 - 1023 254  63 [    409640 -  591229312] HFS+
 3: AB 1023 254  63 - 1023 254  63 [ 591638952 -    1269536] Darwin Boot
*4: 07 1023 254  63 - 1023 254  63 [ 976963584 -  976560128] HPFS/QNX/AUX
Etronics6-iMac:~ etronics6$ diskutil list
/dev/disk0 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *1.0 TB     disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:                  Apple_HFS Macintosh HD            302.7 GB   disk0s2
   3:                 Apple_Boot Recovery HD             650.0 MB   disk0s3
   4:       Microsoft Basic Data                         500.0 GB   disk0s4
Etronics6-iMac:~ etronics6$

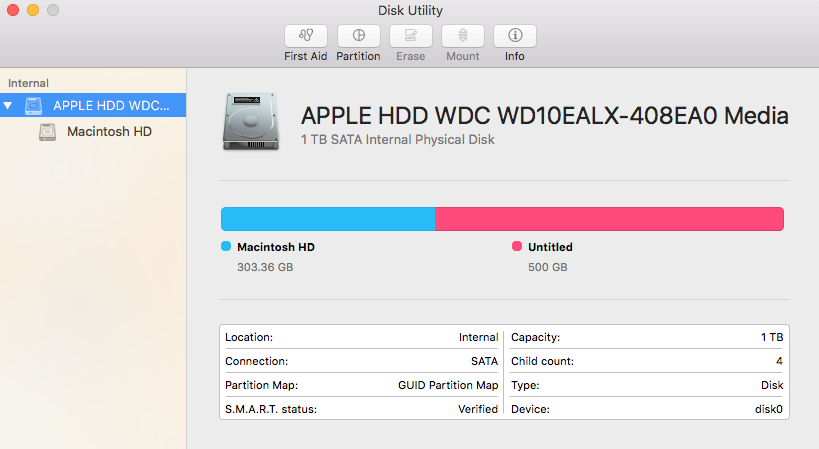

One other thing i did today was upgrade to El Capitan, thinking that would help matters... the disk utility looks different now, BEFORE El Capitan I could see the Disk0s4, now I get a graphic like this one I have embedded ... I can see the Windows partition, but now it doesn't have the Disk0s4 anymore on the left... now it is ALL TOGETHER...

 Disk Utility Partitions
I hope someone can help... thank u in advance for any assistance you can offer to get me to a solution!!
0
Comment
Question by:etronics6
4 Comments

LVL 8

Accepted Solution

by:
davidanders earned 250 total points
Comment Utility
You do not mention what OSX version before the El Capitan upgrade.
You do not mention what was used to resize the Windows partition.
Do you have a backup of the Windows partition (done in Windows)?
Do you have a backup of the BootCamp partition (done in OSX)?
WinClone is often recommended  http://twocanoes.com/products/mac/winclone
Do you have a backup of the OSX partition?
TimeMachine, SuperDuper, and Carbon Copy Cloner are most often the recommended utilities.

Apple neutered Disk Utility in El Capitan and users were displeased. Sierra's version is slightly more ballsy.
https://www.google.com/search?q=el+capitan+disk+utility

Bootcamp won't start after resizing partition
http://apple.stackexchange.com/questions/180352/bootcamp-wont-start-after-resizing-partition
0

LVL 27

Assisted Solution

by:serialband
serialband earned 250 total points
Comment Utility
What did you use to resize the Windows partition?  iPartition and CamptuneX are two other useful tools that work to resize NTFS and HFS+ partitions.

OS X can not operate on NTFS partitions on its own.  You need 3rd party software to manage them.  If you resized it using Disk Utility, you've messed it up.  You should always have backups when you mess around with disk partitions, no matter which tool you use.
0


Author Comment

by:etronics6
Comment Utility
Sorry guys!!  I've been dealing with health issues for my sister & haven't been able to get back to u or work on this computer...

I used partitionwizard.com...
I had Yosemite
I have win 10 on win side

Not sure when I can try to do this with everything going on, hard to wrap my head around this right now, sorry...

My main thing is, I am probably going to pull the drive, I just didn't want to do that, it's an iMac & u have to pull the screen off to get to drive... Etc...

I was hoping there might be an easy way (which I know there usually never is). Just didn't want to have to rebuild everything with what's going on with my sis... So I thought I would throw it out there...

Thanks for ur help thus far!! I appreciate it!
