binding an ISCSI SAN to a VM

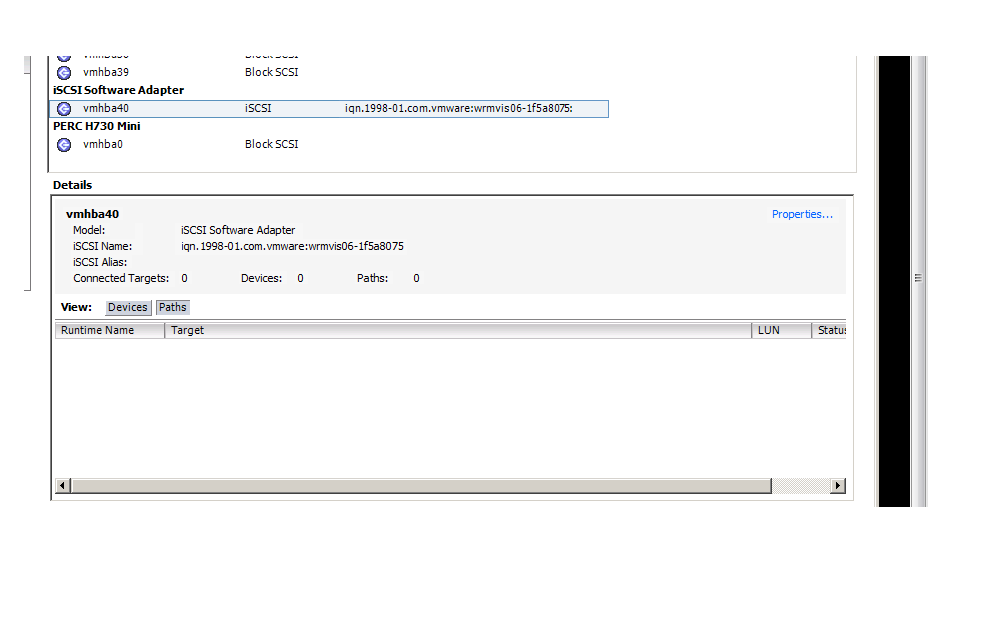

I'm stuck. \ can't seem to get my ISCSI to bind.  It sees it but it will not bind..  Here's some screen shots..  I can't seem to figure out what's wrong... Also I'm not sure of which network card belongs to which IP and which to make active and which to make standby
Who is Participating?
I wear a lot of hats...

"The solutions and answers provided on Experts Exchange have been extremely helpful to me over the last few years. I wear a lot of hats - Developer, Database Administrator, Help Desk, etc., so I know a lot of things but not a lot about one thing. Experts Exchange gives me answers from people who do know a lot about one thing, in a easy to use platform." -Todd S.

Andrew Hancock (VMware vExpert / EE Fellow)VMware and Virtualization ConsultantCommented:
Please have a look at my EE Article how you set this up, and bindings and failover..

HOW TO: Add an iSCSI Software Adaptor and Create an iSCSI Multipath Network in VMware vSphere Hypervisor ESXi 5.0

This also works for 5.x and 6.x.

Experts Exchange Solution brought to you by

Your issues matter to us.

Facing a tech roadblock? Get the help and guidance you need from experienced professionals who care. Ask your question anytime, anywhere, with no hassle.

Start your 7-day free trial
WellingtonISAuthor Commented:
I have everything connected correctly!  UGH.  I sees the storage look and yet it's not there.  that's exactly what I followed...
WellingtonISAuthor Commented:
A freaken check box! that was the problem.  ON the ESXI server I didn't have one of the fibre nic checked.  So now it sees the bindings but it's taking a very long time to RSCAN.  I'm not sure if this is a good thing.
Why Diversity in Tech Matters

Kesha Williams, certified professional and software developer, explores the imbalance of diversity in the world of technology -- especially when it comes to hiring women. She showcases ways she's making a difference through the Colors of STEM program.

Andrew Hancock (VMware vExpert / EE Fellow)VMware and Virtualization ConsultantCommented:
Have you presented the LUNs ?
WellingtonISAuthor Commented:
Yes and it see's all the luns however, when I try to connect it, it's crashing/freezing the server?  I'm really at a loss... OK I have it back up and it's scanning again.  I have 4 luns it only sees 2 right now.  not sure what it's going to do. It once again sees the luns however it's frozen.
Andrew Hancock (VMware vExpert / EE Fellow)VMware and Virtualization ConsultantCommented:
Is this a new implementation ?
WellingtonISAuthor Commented:
YEs a new box on the same san
WellingtonISAuthor Commented:
I finally got it after 8 hours of work!  I had to add it manually and create a new lun with a single ISCSI connector.
WellingtonISAuthor Commented:
It was the same issue my tech has multi fibre and it needed single.
