vmware work station network editor problem

My setup - standard home setup , router on and all host on that network

VMware workstation host
1 x ESXi 6 hosts with ip

I can't get the ESXi host to talk to anything. The network editor always seems overly complicated with it's hundreds of configuration options. For gods sake all i want is to get the dam ESXi host talking to other hosts on my home network. With Hyper-V i add a virtual switch and point it to a NIC, and I'm done, none of this crap about NAT, Bridge, Share, DHCP, no wonder people are moving to MSFT.
If anyone can point out where I'm going wrong I'd appreciate it.
Tanks all.
Jay ThomasAsked:
Who is Participating?
I wear a lot of hats...

"The solutions and answers provided on Experts Exchange have been extremely helpful to me over the last few years. I wear a lot of hats - Developer, Database Administrator, Help Desk, etc., so I know a lot of things but not a lot about one thing. Experts Exchange gives me answers from people who do know a lot about one thing, in a easy to use platform." -Todd S.

Andrew Hancock (VMware vExpert / EE Fellow)VMware and Virtualization ConsultantCommented:
Okay, it this complication caused by a ESXi 6.0 host which is a virtual guest on VMware Workstation ?

or is your ESXi 6.0 host a physical host ?

Hyper-V is a Type 1 Hypervisor, VMware Workstation is a an application installed on a Host, which is a Type 2 Hypervisor.

It's really like comparing apples and pears, unless you install ESXi on bare metal!

So I assume this ESXi is installed as a virtual machine, and therefore it's comparison would be to install Hyper-V also in a VM, under VMware Workstation.

Anyway back to your issue ?

ESXi 6.0 installed as a virtual machine ?
Jay ThomasAuthor Commented:
Hi Andrew - that's my rant out the way, but sitting here 3 hours and getting no where kind of pS you off.

So, yes, VMware Wk Station 11. I haves 4 ESXi 5.5 Virtual hosts, although at this point i am only trying to get one of them working. The IP address for esxi01 is, but it cannot even ping the router.
I figure it's the VMware network editor so i restore defaults it to be safe. So, i now have the 3 default networks. So i assume i can go to the esxi network settings and point the network at "VMnet0 auto bridging" and I'm good to go. Nope, still does not work. I do the network test inside esxi and it still can't ping, but the Windows 2012 r2 it sits on can.

Any help appreciated.
Andrew Hancock (VMware vExpert / EE Fellow)VMware and Virtualization ConsultantCommented:

First thing to do is....

Reset the Virtual Network Editor to Defaults, and leave well alone.

Configure ALL virtual machines to use BRIDGED NETWORKING, and ALL ESXi servers to use BRIDGED NETWORKING.

If you use DHCP on your network from your router, then use this for DHCP across your network or make sure you assign static IP Addresses in the network subnet you are using.

Also ESXi VMs under VMware Workstation *MUST* use E1000 virtual network interface.

Also final tweak when using ESXi as a *NESTED* Virtual Machine under VMware Workstation is to use a special VLAN ID.

ALL (4095) on ALL your Networks which are configured on the ESXi Hosts.

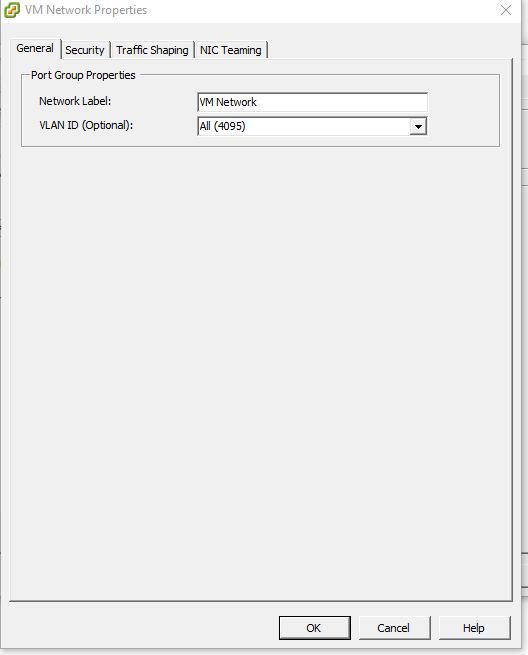

So if you are using the Default VM Network :- Edit it, and change VLAN to ALL (4095)

see here

and then re-try.....
Get Blueprints for Increased Customer Retention

The IT Service Excellence Tool Kit has best practices to keep your clients happy and business booming. Inside, you’ll find everything you need to increase client satisfaction and retention, become more competitive, and increase your overall success.

Jay ThomasAuthor Commented:
Hi Andrew, all working now :(. But not quite as expected. I was testing as i went along and got to a point where i could ping router and Google DNS IP.
Here's what i have. pic1,  after I reset network editor. Pic2 for network settings for the ESXi vm.

Is this as you would expect because i didn't set the vlan id you suggested?
Thank you
Andrew Hancock (VMware vExpert / EE Fellow)VMware and Virtualization ConsultantCommented:
Firstly you need to set the VLAN to ALL 4095.

and your VM settings are WRONG, not sure why you have Custom!

delete the network interfaces, and start again with Bridged.

BUT if it works then leave as is....

Experts Exchange Solution brought to you by

Your issues matter to us.

Facing a tech roadblock? Get the help and guidance you need from experienced professionals who care. Ask your question anytime, anywhere, with no hassle.

Start your 7-day free trial
Jay ThomasAuthor Commented:
Thanks Andrew. I will revisit this and do as suggested but for now will leave as i'm working on something which i need some VMWare VMs. Thank you as always :)
Andrew Hancock (VMware vExpert / EE Fellow)VMware and Virtualization ConsultantCommented:
Food for though if using VMware Workstation and nested ESXi, for Labs, is to use AutoLab, which can build ESXi servers unattended under VMware Workstation.

You can see the principle and example here in my EE Article

HOW TO: Set up a lab environment for vSAN using VMware Workstation
Jay ThomasAuthor Commented:
Hi Andrew, is vsan free? I was just about to deploy StarWind.
Andrew Hancock (VMware vExpert / EE Fellow)VMware and Virtualization ConsultantCommented:
vSAN is not FREE, but the whole idea of AutoLab is you can automatically rebuild your lab every 60 days! using Evaluation Licenses!

and carefully designed, you could use NAS (included with AutoLab to backup to!)

Obviously you would have to backup your VMs, but also possible with eval licenses of all the backup software also downloadeable!
