Domain System Volume is Missing

High Priority
115 Views
Last Modified: 2020-02-18
The Domain System Volume was deleted from DFSM and there is no backup for it. Does anyone now how to rebuild it?
Comment
Watch Question

Peter HutchisonSenior Network Systems Specialist
CERTIFIED EXPERT

Commented:
If Sysvol is missing then you will have lost all your policies and any login scripts.

You can re-create the Default Domain Policy and Default Domain Controller Policy using the Dcgpofix.exe command. The rest will have to be manually re-created.

Run NET VIEW \\DC-Server-Name to check if NETLOGON and SYSVOL appear.
CERTIFIED EXPERT

Commented:
Do you not have a backup of any Domain Controllers ?

Author

Commented:
Hi Peter

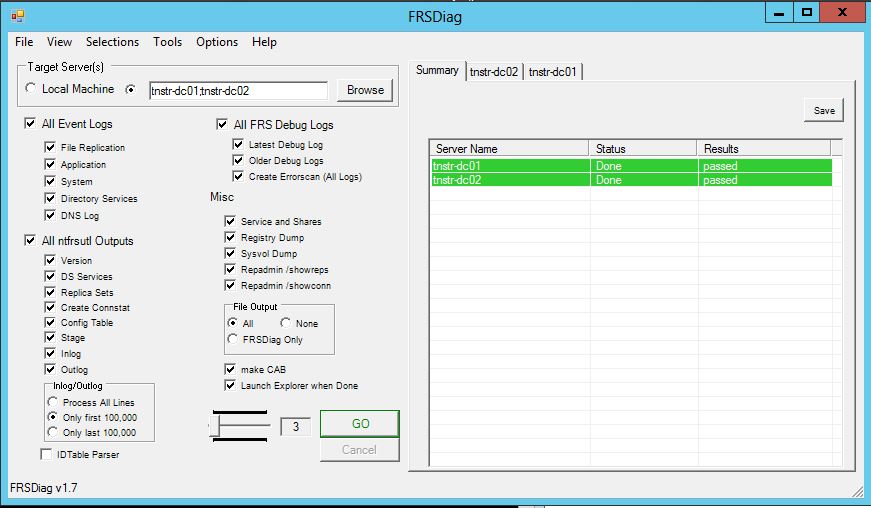

SYSVOL folder on both servers are still there and so are the policies, but there is a problem with the GPOs syncing. I have DFSM installed on both server and under replication the domain system volume is missing. DFSR05.JPG

Author

Commented:
there are backup of the domain controller, but the problem is that the backup don't go back far enough to fix the problem
CERTIFIED EXPERT

Commented:
First of all take a copy the folder, and a full backup of at least one DC, if they are VMs take an online checkpoint.

I would have a look at the like "D4" for FRS" section of this.

https://support.microsoft.com/en-gb/help/2218556/how-to-force-an-authoritative-and-non-authoritative-synchronization-fo

Author

Commented:
CN=SYSVOL Subscription,CN=Domain System Volume,CN=DFSR-LocalSettings,CN=<the server name>,OU=Domain Controllers,DC=<domain> is missing. Does this value need to be added back in?

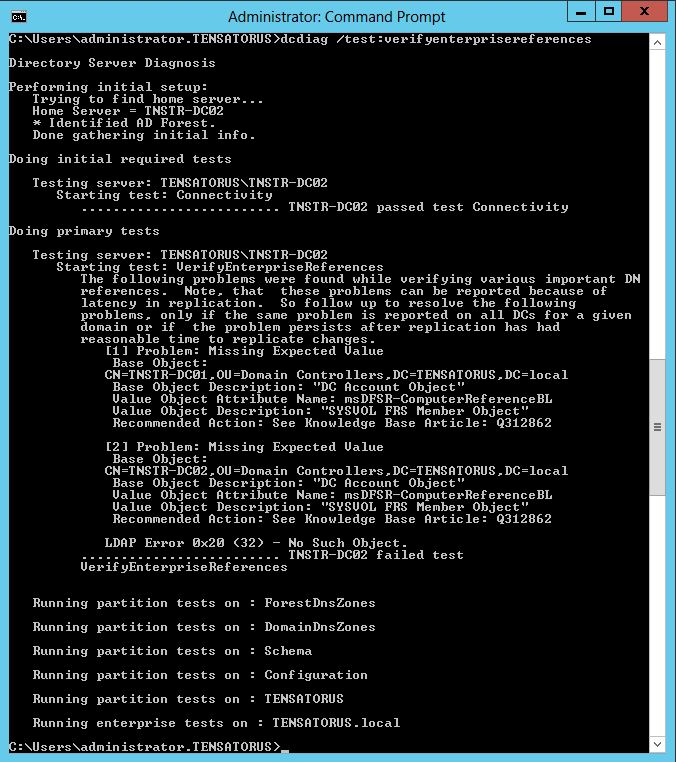

when i ran dcdiag /test:VerifyEnterpriseReferences it said this was missing. but i don't know the steps need to get them back.
Senior Network Systems Specialist
CERTIFIED EXPERT
Commented:
There is a good step by step article on Microsoft's support site to repair DFSR replication using ADSIEDIT and DFSRDIAG tools:

https://support.microsoft.com/en-gb/help/2218556/how-to-force-an-authoritative-and-non-authoritative-synchronization-fo
