Dave Smith
asked on
PXE booting Virtual Box VM using a MAC.
I'm running a MAC with Virtual box 6.0, my MAC OS is: macOS 10.13.6
I have a WDS server on the network hosted on the same machine but I cannot get the VM to boot off the network using PXE.
I've added the extension pack to Virtual box, changed the boot order on the VM but I cannot get it to boot off the network.
Any help greatly appreciated.
I have a WDS server on the network hosted on the same machine but I cannot get the VM to boot off the network using PXE.
I've added the extension pack to Virtual box, changed the boot order on the VM but I cannot get it to boot off the network.
Any help greatly appreciated.
Andrew Hancock (VMware vExpert PRO / EE Fellow/British Beekeeper)
Are you using BRIDGED networking ?
ASKER

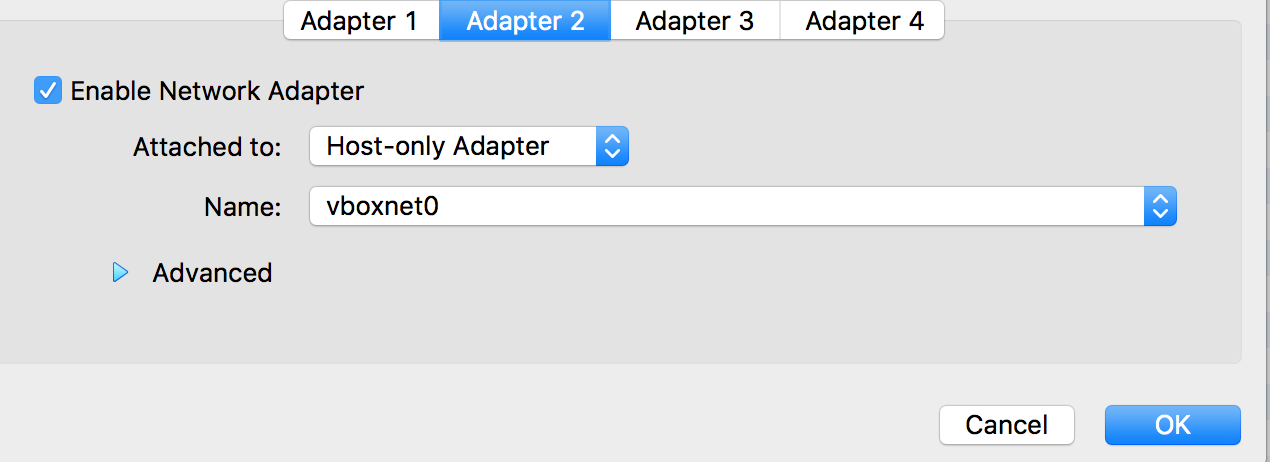

Hi Andrew, the VM is using a Host-Only-Adaptor.
Okay, so changed both VMs to Bridged.
ASKER

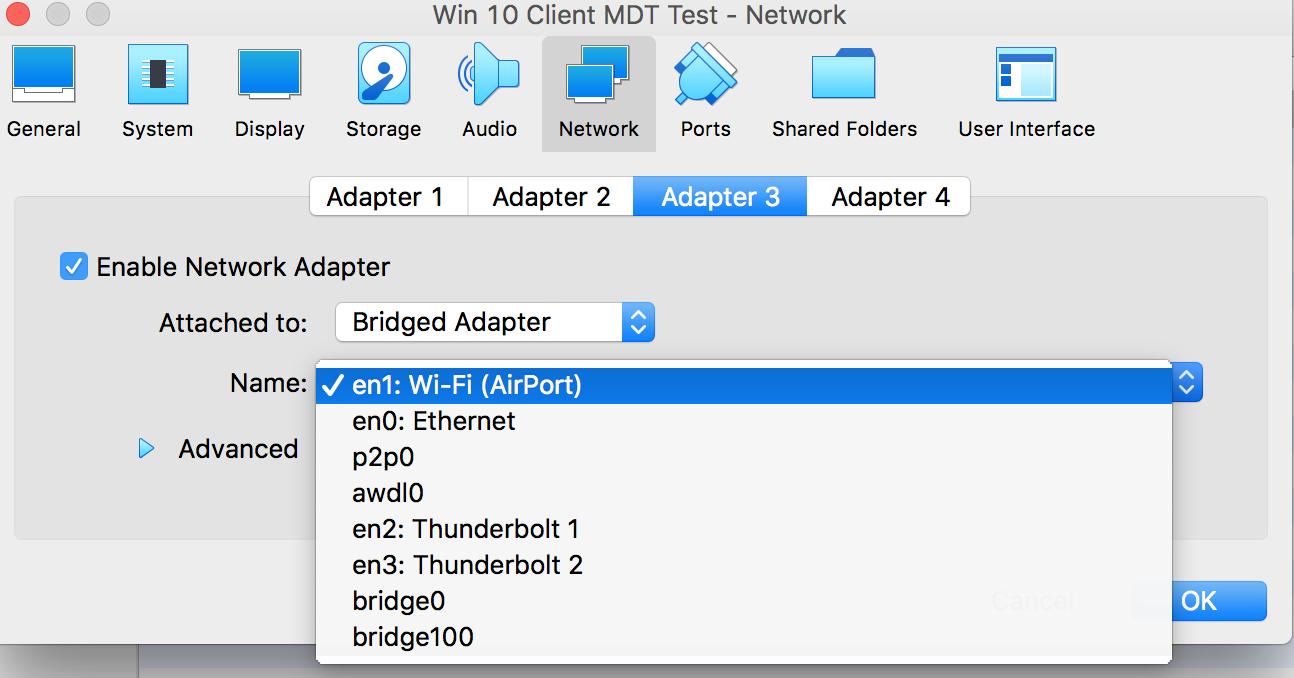

OK will do, but which network should I choose under 'name' - see attached.
which is your current working LAN ?
Before you change this do you have DHCP running on this VM, because otherwise you will have two DHCP servers running on the same LAN, which would cause a conflict ?
Before you change this do you have DHCP running on this VM, because otherwise you will have two DHCP servers running on the same LAN, which would cause a conflict ?
ASKER
Yes DHCP is on the WDS VM.Thats why i was using host only as it does not connect to the router. The first adaptor is set to NAT to allow internet access to the VMs. Should I disable host only and set both to bridged?
ASKER
The LAN has it's own DHCP server on the router that connects to the internet so yes there would be a conflict.
ASKER CERTIFIED SOLUTION
THIS SOLUTION IS ONLY AVAILABLE TO MEMBERS.
View this solution by signing up for a free trial.
Members can start a 7-Day free trial and enjoy unlimited access to the platform.
ASKER
Changed the network adaptor settings - cheers.
