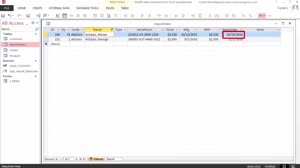

Shuffle - 1 - Examine Data in Access that was imported from Excel
Examine data that was imported from Excel. Filter data in Access just like you do in Excel, for just what you want to see.
Turn on a totals row to sum columns. Best-fit columns and change column widths. See how a new AutoNumber value  is automatically assigned, and totals are changed, when a new record is created. Look up a customer code using a quick query.

Here are the other videos in this series:

Shuffle - 2 - Totals Query
https://www.experts-exchange.com/videos/61035/Shuffle-2-Totals-Query.html

Shuffle - 3 - Table Design
https://www.experts-exchange.com/videos/61036/Shuffle-3-Table-Design.html

Shuffle - 4 - Append Query
https://www.experts-exchange.com/videos/61037/Shuffle-4-Append-Query.html

Here is the video that shows how to do the import:

import an Excel spreadsheet into an Access database
https://www.experts-exchange.com/videos/60914/import-an-Excel-spreadsheet-into-an-Access-database.html

1. Open a table in Datasheet view to look at information

2. Click the Filter dropdown at the top of a column to specify criteria for the rows displayed

3. Resize columns to be wider or narrower, double-click to best-fit

4. Add new records at the bottom

5. Look at each column and determine what type of object it is.


      There needs to be a table to describe each type of object.
1
Ensure you’re charging the right price for your IT
Ensure you’re charging the right price for your IT

Do you wonder if your IT business is truly profitable or if you should raise your prices? Learn how to calculate your overhead burden using our free interactive tool and use it to determine the right price for your IT services. Start calculating Now!

Shuffle - 2 - Totals Query
Data was imported into Access from Excel. In part 1, we examined it, and learned how to do a few things in datasheet view like filtering, sizing columns, and showing totals. To get unique values, we'll make a query and then change it to a Totals query, and use an aggregate function to calculate something. We'll use Group By, Max, and Expression.

Here are the other videos in this series:

Shuffle - 1 - Examine Data (imported from Excel)
https://www.experts-exchange.com/videos/61034/Shuffle-1-Examine-Data-imported-from-Excel.html

Shuffle - 3 - Table Design
https://www.experts-exchange.com/videos/61036/Shuffle-3-Table-Design.html

Shuffle - 4 - Append Query
https://www.experts-exchange.com/videos/61037/Shuffle-4-Append-Query.html

1. To change a query to an aggregate query, click 'Totals'


in the Query Setup group of the Design ribbon tab

2. Group By the key field in the Total row

3. Change Group By to Max for other fields

4. Create an Expression with Count(ID) for the number of records

1

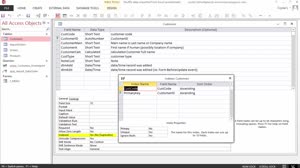

Shuffle - 3 - Table Design
We are going on a deep dive to the foundation of data structure -- what is in the  design view of a table? What else you can do? Use a Unique Index to prevent duplicate values from being added. We discuss Ignore Nulls, the Primary Key, AutoNumber and its properties, create a Calculated field with an Expression to combine data from other fields, tracking fields for when records were added and edited, Field Names, reserved words, and tips for naming fields, and field properties like Data Type, and Size.

Here are the other videos in this series:

Shuffle - 1 - Examine Data (imported from Excel)
https://www.experts-exchange.com/videos/61034/Shuffle-1-Examine-Data-imported-from-Excel.html

Shuffle - 2 - Totals Query
https://www.experts-exchange.com/videos/61035/Shuffle-2-Totals-Query.html

Shuffle - 4 - Append Query
https://www.experts-exchange.com/videos/61037/Shuffle-4-Append-Query.html

Look up Problem names and reserved words in Access, by Allen Browne:
http://allenbrowne.com/AppIssueBadWord.html

1. In table design, you can use an AutoNumber for the primary key


in the Query Setup group of the Design ribbon tab

2. Don't use reserved words in field names


      or spaces or special characters
      except underscore (_) is okay.

3. Start field names with a letter

4. Ensure Data Type and Size are good.

5. Put key fields at the top


      and tracking fields at the bottom.

6. Define an Expression for calculated fields.


      Make text bigger in the Zoom Box (Shift-F2) by clicking the Font button.

7. Use Now() for the Default Value of tracking fields


      for when a record was added and edited.

8. Set a Unique Index to prevent duplicate values.

1

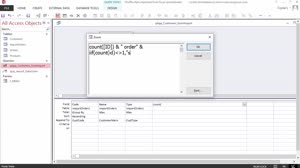

Shuffle - 4 - Append Query
We have a Totals query, and change it to an Append Query, so we can use it to add records. Create an an expression for a calculated field. Get errors (oops!) when we run the append query, but see how to fix them :)

To Summarize, in part 1, we examined data and made a query. In part 2, we changed the query to a Totals query to get unique values and used an aggregate function in an expression. In part 3, we took a deep dive into table design. Now, we have created and run an append query. Records are now in the customers table, and we have two more tables
to put records in before the import from Excel is done. Look for those lessons in the future.

Here are other videos in this series:

Shuffle - 1 - Examine Data (imported from Excel)
https://www.experts-exchange.com/videos/61034/Shuffle-1-Examine-Data-imported-from-Excel.html

Shuffle - 2 - Totals Query
https://www.experts-exchange.com/videos/61035/Shuffle-2-Totals-Query.html

Shuffle - 3 - Table Design
https://www.experts-exchange.com/videos/61036/Shuffle-3-Table-Design.html

1. Open a table in Datasheet view to look at information

2. Click the Filter dropdown at the top of a column to specify criteria for the rows displayed

3. Resize columns to be wider or narrower, double-click to best-fit

4. Add new records at the bottom

5. Look at each column and determine what type of object it is.


      There needs to be a table to describe each type of object.
1

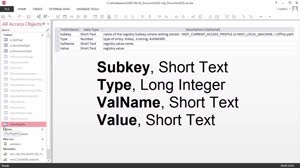

How to Install and Make an Add-in for Access
Learn how to install an add-in for Access. Add-ins can save time, and make your code more accessible. Where does the add-in go?

Do you want to create an add-in? What must it contain? Learn about the USysRegInfo table and what needs to be in it.

The add-ins demonstrated here can be downloaded (free) from:

Tools > Add-in > Document SQL, RecordSource, RowSource
http://msaccessgurus.com/tool/Addin_DocumentSql.htm

Tools > Add-in > Workspace Save and Restore
http://msaccessgurus.com/tool/Addin_Workspace.htm

The add-ins are just ACCDB files that have been renamed to have an ACCDA extension.

1. To install an add-in, run Access as Administrator

2. Open a database

3. Drop down the list under the Add-ins icon on the DATABASE TOOLS ribbon tab

4. Choose the Add-in Manager

5. Choose Add New...

6. Browse to the ACCDA file and click Open

7. Close the Add-in Manager

8. Your new add-in should now be on the Add-ins menu

2

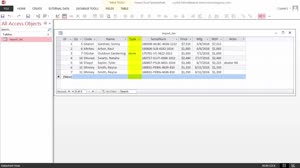

import an Excel spreadsheet into an Access database
Learn how to Import data from Excel into a Microsoft Access database using the wizard. Change data types and modify table design. Add another field and create an update query to fill it out. Also see a neat trick to copy the full path and filename of the active workbook in Excel.

1. To import data from Excel using the wizard, click the Excel icon in the Import & Link group of the EXTERNAL DATA ribbon tab


      (You might have to click the drop-down arrow for more choices to see the Excel icon.)


2. Choose the Excel file you want to import from




3. Choose the worksheet or range




4. Verify that the first row contains the column headings




5. change data types




6. let Access add a primary key


this will be an AutoNumber field, which is a good idea to have in every table.


7. change the table name to be logical, and preface with 'import_'

     the reason to preface the table name is so that when they are listed alphabetically, the import tables will be next to each oher. Once data is in Access, it needs to be normalized.



8. modify the table design (to add a field for date)


      In this example, we just added another field. In reality, you would also change Data Type and Size, remove tag-along properties like Format, set text to have Unicode Compression, and more


9. make update query to create values in the new field

     construct date using the DateSerial function, with parameters for the numeric year, month, and day



10. save the query


      (so you can modify it for another worksheet of data)
1
LVL 50

Expert Comment

by:Subodh Tiwari (Neeraj)
Very helpful tutorial Crystal! 👍
1
LVL 25
thank you, Subodh!
1

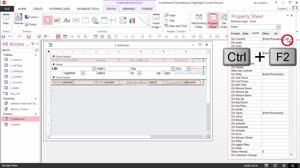

Highlight the Current Record on an Access form with a Yellow background color
Make it easier to see the current record on your Microsoft Access forms! To highlight the current record with a yellow background color, use Conditional Formatting, a control to keep track of the primary key value, a control to change color, and a little VBA.  See how to do it.

While designing, I like to increase the height of the detail section, create a shorter txtHighlight control below everything else on the ruler, set all the properties, then move txt Highlight up, close the height of the detail section, and then set the Height of txtHighlight to whatever the section turns out to be.

Once the controls are created, create VBA code and set Conditional Formatting.

In the steps below, MyPrimaryKey is the name  of your primary key control such as ProductID, OrderID, ContactID, etc. The expression in a Conditional Formatting rule can refer to control names or field names.

If you are using a datasheet form instead of a continuous form, you can't have a control under all the others, so set the conditional formatting rule on every control. You can then select multiple bound controls, and then set the rule.

To specify code for an event:

1. select the object you want such as the form or a control
2. go to the Event tab of the property sheet
3. choose [Event Procedure] or pick it from the list -- or just type "[" to pick  [Event Procedure]
4. Click the builder button [...], or press Ctrl+F2, to go to the Visual Basic Editor
5. Access will automatically create …
1

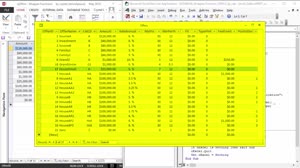

Wrapper-2, VBA.  Show result of Excel Worksheet Function in Access Query
A query can call a function, and a function can call Excel, even though we are in Access. This is Part 2, and steps you through the VBA that "wraps" Excel functionality so we can use its worksheet functions in Access.

The declaration statement defines the function name and its return data type. The values it needs to calculate are specified as parameters, or arguments.

Create an error handler that will exit without the user realizing there might have been a problem, and define a default value of zero for the function return value.

See how to open Excel and refer to it so code in Access can use it. Reuse the Excel application object to make susbsequent processing faster ... so, how do we clean that up?

Use the function in a query! Part 1 shows a query with the calculated column that calls this code:
Wrapper-1-Query-Show-result-of-Excel-Worksheet-Function-in-Access-Query.html

Even though topics may be technical, I do my best to consider that a beginner may be watching, so extra detail is added. Hopefully not so much that more advanced users turn away ... maybe you will comment and let me know your thoughts about this? Thanks!

have an awesome day,
crystal

1. Dimension oExcel as object at top of module

2. Name of function follows the "Function" keyword

3. Enclose function parameters in parentheses

4. Declare data type of return value

5. Set up error handler


For more information on the error handling, here is a short video: Basic-Error-Handling-code-for-VBA-and-Microsoft-Office.html

6. Define default return value

7. Validate parameters -- not done in this example

8. See if Excel is loaded and ready to use


if not, then open Excel in the background and use oExcel to represent it

9. Call the Excel function you want and pass parameters

10. Assign the result to the function return value

0

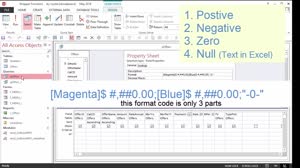

Wrapper-1, Query.  Show result of Excel Worksheet Function in Access Query
Wrapper-1-Query. Use an Excel function to calculate a column for an Access query. Part 1. Shows a query in Access that has a calculated column with the results of an Excel worksheet function.

See how to call a wrapper function from a query, and send the information it needs. "Wrapper Function" is a term to mean a user-defined function (UDF) that calls another program. In this case, Excel is called and one of its worksheet functions is used. This example shows  payment calculations for a number of offers from data that is stored in a table (loan amount, annual interest rate, number of years, and number of payments per year) using Excel's PMT function.

Also see how query columns can display in different colors using the format code, and learn about some of the placeholders.

Part 2 shows how the VBA code works:
Wrapper-2-VBA-Show-result-of-Excel-Worksheet-Function-in-Access-Query.html

Even though topics may be technical, I do my best to consider that a beginner may be watching, so extra detail is added. Hopefully not so much that more advanced users turn away ... maybe you will comment and let me know your thoughts about this? Thanks!

have an awesome day,
crystal

1. Create a query with the fields you want

2. Define calculated fields with intermediate calculations if desired

3. In the calculated column with results from a VBA wrapper function, specify the function name


Send fields, calculated fields, and literal values as parameters inside parentheses

4. To color data in the column, use [ColorName] in the Format property


The color name in square brackets can be Black, Blue, Green, Cyan, Red, Magenta, Yellow, or White

5. Format codes have 4 parts separated with semi-colon (;)


1. Positive, 2. Negative, 3. Zero, 4. Null (vs Text in Excel)
0

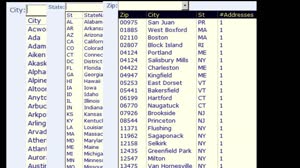

How to incorporate Contact Management into an Access database?
Hi,

this video explains a free download that you can incorporate into your Access databases, or use stand-alone for contact management.

Contacts -- Names, Addresses, Phone Numbers, eMail Addresses, Websites, Lists, Projects, Notes, Attachments, ... and many extra bsiness tables.
http://www.msaccessgurus.com/Contacts.htm#Download

This example is elaborate as I spent hundreds of hours building and refining it over the years. Don't let its complexity scare you off from Access! Even seasoned Access developers would need to spend a lot of time to understand it all. The good news is that you can also just use it! Be sure to swap out the back-end for the one without the sample data once you are comfortable ... and if importing tables into your back-end, get them from the "blank" back-end that is included as you probably do want some of the records, like for types.

While I categorized this as "intermediate", if you are a beginner, don't be shy about getting this valuable tool! One of the best ways to learn Access is to use it ... and everyone knows people they keep contact information for.

have an awesome day,
crystal


1. download the contact template

http://www.msaccessgurus.com/Contacts.htm#Download

2. open your working database, or skip the rest of the steps and just open the contact template if you want to use it stand-alone

3. from Ribbon --> External Data tab

4. click Access icon in the Import group

5. from the dialog box that pops up, choose --> import (default)

6. click the Browse button to choose the (contact) database file

7. click OK to see a list of objects

8. choose queries, forms, reports, and modules that you want to import

9. OK to bring them all in

10. tables are in the back-end database -- so import these into your back-end, not your front-end


   if your database is not yet split into a front-end and back-end, of course, put them where you are developing

11. Alt-F11 to go to the VBE (Visual Basic Editor)

12. Debug, Compile from the menu

13. fix what is wrong and/or import things you forgot

14. Save

15. Hook into your existing tables by adding CID where it needs to go.


0
Amazon Web Services
LVL 13
Amazon Web Services

Are you thinking about creating an Amazon Web Services account for your business? Not sure where to start? In this course you’ll get an overview of the history of AWS and take a tour of their user interface.

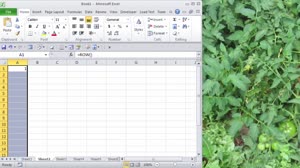

How To Insert Foreign and Special Characters when in Windows Applications
Enter Foreign and Special Characters

Enter characters you can't find on a keyboard using its ASCII code ... and learn how to make a handy reference for yourself using Excel ~

Use these codes in any Windows application! ... whether it is a Microsoft Office product like Excel, Word, PowerPoint, Access,... or a simple program like NotePad.

Along these lines, I've written a tool to make it easier to input and lookup Unicode when you are in Access, and am making another video on Unicode - so be on the lookout for it.

Please Like, Comment, and Share with your friends ~

have an awesome day,
crystal

1. To insert a special character, make sure Num Lock is on


2. Hold down the ALT key


3. Type the ASCII code on the numeric keypad


4. Release the ALT key

0

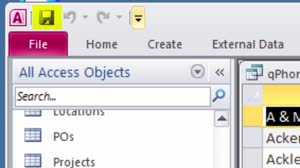

How to Add a "Save As" icon to the Quick Access Toolbar
How can you see what you are working on when you want to see it while you to save a copy?

Add a "Save As" icon to the Quick Access Toolbar, or QAT.

That way, when you save a copy of a query, form, report, or other object you are modifying, you can still see what you are doing and can give your object a better name.

While Access is used to demonstrate,  you can do this in other Office products like Word, Excel, and PowerPoint too.

have an awesome day,
crystal

1. click on down arrow at end of QAT to Customize it


2. Choose "More Commands..." from the drop-down menu


3. choose to show 'All Commands'


4. click on the last command in the list of QAT commands on the right


   or whatever command you want to add the command below

5. double-click <Separator> in the left list to add it to the right list below what is selected


6. in the left list, doube-clicm Save As to addit below what is selected (now the separator)


7. click OK to close the Customize the Quick Access Toolbar dialog box


8. Enjoy faster saving!

1
How to Enforce Referential Integrity on Access Relationships
The Relationships Diagram is a good way to get an overall view of what a database is keeping track of. It is also where relationships are defined. A relationship specifies how two tables connect to each other.

As you build tables in Microsoft Access, or link to tables that are in SQL Server, Excel range, or other database, put them on the Relationships Diagram

Stretch or shrink fieldlists so everything shows

To create a relationship in Access, click on the Primary Key in the main table, drag to the Foreign Key in the related table, and let go.

In the dialog box that pops up,
check: Enforce Referential Integrity

This is important so that there are not values that don't match up to anything.

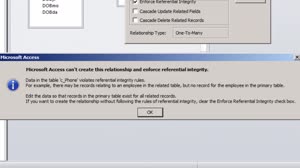

Error creating relationship?

If there is bad data, a relationship with referential integrity cannot be created. Fix the bad data and try again.

If the table is linked, you can show it on the diagram but you cannot create a real relationship that is not already there. If relationships are not defined, you can drag lines without enforcing  referential integrity to show what is supposed to match.

Define relationships and arrange the diagram as you build your tables.
Enforce Referencial Integrity unless you have a specific reason not to.

have an awesome day,
crystal
 ~ connect to me, let's build it together
http://www.msAccessGurus.com

1. To create a relationship in Access, open the Relationships Diagram

2. click on the Primary Key in the main table

3. drag to the Foreign Key in the related table

4. and let go of the mouse.

5. When the dialog box pops up, check: Enforce Referential Integrity

6. and click Create

7. Rearrange the Relationships Diagram so everything shows and flows

1
Synchronize List Box in Access using SQL and VBA
With just a little bit of  SQL and VBA, many doors open to cool things like synchronize a list box to display data relevant to other information on a form.  If you have never written code or looked at an SQL statement before, no problem! ...  give it a chance. Unleash a great new potential.

This technique of basing the Row Source of one control on the value in another is called "cascading", and you will probably hear that term more in reference to combo boxes.

A list box has many similarities to a combo box such as Row Source, Column Count, Column Widths, and Column Heads. The Width of a list in a combo box is List Width; in a list box, it is the same as the control Width.

As the customer changes, VBA runs to add criteria to the SQL statement for the list box. SQL is what a query stores to know what data to get, where it comes from, and how to sort.  SQL is Structured Query Language.  Don't let the acronym intimidate you.

An SQL statement is simply a standardized way to get information from database tables. It specifies what to show (Select), and where data comes from (From). Optional clauses include criteria (Where), and how to sort (Order By).  The basic syntax for an SQL statement is:
SELECT fieldlist
FROM tablename
WHERE criteria
ORDER BY fieldlist;

To get an SQL statement into the Row Source of a combo box or list box, you can: (1) Make a query to show what you want, switch to SQL view, and copy the SQL statement, or (2) click in a control's Row …
0
Subform to show Calculations in Microsoft Access
Look below the covers at a subform control , and the form that is inside it. Explore properties and see how easy it is to aggregate, get statistics, and synchronize results for your data.

A Microsoft Access subform is used to show relevant calculations for data in the mainform.

A subform control is a container, like a bucket, for a form or report. Its properties specify: what it contains (Source Object), how it is linked (Link Master Fields, Link Child Fields), what it is called (Name), how big it is (Width, Height), where it is  (Top, Left), what it looks like (Border Color, Border Style, Special Effect), whether or not it shows (Visible), if the user can modify values (Locked, Enabled), and so on.

As you navigate from record to record in the mainform, data in the subform automatically changes. LinkMasterFields and LinkChildFields are used to synchronize the forms, without any more effort on your part!

On the mainform, LinkMasterFields is a combobox that stores CustomerID but shows the customer name and more. What is displayed in the combobox is influenced by Column Count, ColumnWidths, and ListWidth.

The form inside the subform control is a regular form designed to be used as a subform; and in this case, to display information only, so things like RecordSelectors and ScrollBars are turned off. The RecordSource for the subform (where it gets its data from) is a query that has 2 queries below it doing more calculations. See how queries are stacked to get …
0

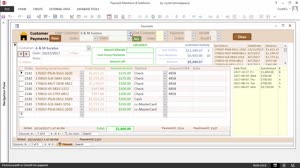

Mainform + Subforms designed for efficiency and flexibility
This lesson discusses how to use a Mainform + Subforms in Microsoft Access to find and enter data for payments on orders. The sample data comes from a custom shop that builds and sells movable storage structures that are delivered to your property. When a sale is made, it may be paid outright, carried in-house, or purchased by a finance company.

Using a mainform with subforms allows data entry into multiple tables with referential integrity. There are also calculations, and ways to find and filter information; Synchronizing subforms so they update with the record changes using LinkMasterFields and LinkChildFields; Calculating sum and total number of orders and payments, and the balance due; Displaying the company logo; and more.

Learn how to undo creating a new record, use shortcuts and quick ways to enter data, and about setting the Enter key behavior in the Access Options so pressing Enter goes down one row, just like in Excel. See how easy it can be to disburse all the is remaining on an allocated amount left to a single order.

See how Anchoring subforms and controls enables them to stretch and shrink as the display area changes.

Future lessons will go into the nuts and bolts of how this form works, address issues, fix problems (there are some), and enhance capabilities.

~~~

Did you learn something new?

Please Like, Comment, and Share with your friends. Thank you.

Through sharing, we will all get better.

have an awesome day,
crystal

1. Download sample database

0

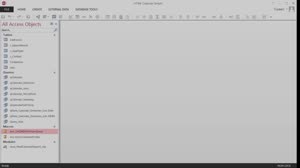

How to Create Calendar Reports from Access Queries
Have you created a query with information for a calendar? ... and then, abra-cadabra, the calendar is done?! I am going to show you how to make that happen.

Visualize your data!  ... really see it

To use the code to create a calendar from a query, simply import the (only) module (mod_HtmlCalendarReport_s4p) from the download (see Step 1, below)  into your working database (and then compile and save, of course). You can get the same code by choosing File, Import in the VBE (Visual Basic Editor -- Alt-F11) and choosing the BAS file.

Importing VBA doesn't, of course, include easy-to-launch macros (even though the macros run VBA procedures) ... triggering them is a snap -- especially if you use a menu form with buttons and other controls.

Please, as you make changes, rename the 'test' procedures to have more meaningful names depending on how you customize them and how they are used. And add your own comments ... and indent?

If you feel like sharing, your ideas are welcome, and appreciated.

Using vba:
Application.FollowHyperlink Create_HtmlCalendar(sQueryName)
  • will open a web page with the calendar created from the query specified by sQueryName
  • The Create_HtmlCalendar function creates the calendar as an HTML file (web page)
  •   it returns the path and filename when done.
  • You have a calendar file you can email and share with others.
  • you may wish to add VBA Error Handling (Basics video)

What do you need to know to use this feature?
2

Expert Comment

by:susan nichols
Thank you for your answer! Currently I'm handling travel for our division, so I'm using this to generate calendars of upcoming travel and conferences so other departments can easily see who is going where and when since they have to do things on those dates. I've got it working perfectly doing the single month, but being of the "I want my db to do the thing and then googling how to do the thing" variety of access user, I'm not sure how to start with your instructions (this is sad, I know this is sad).
0
LVL 25
hi Susan,

sorry, I did not see notification of your comment, if there was one. Several people have asked about this. I've made a note to modify the code to do multiple months

have an awesome day,
crystal

free code you can use in your projects
https://msaccessgurus.com/code.htm
0

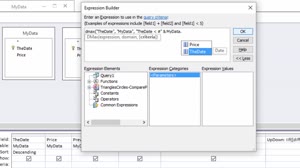

display Triangles! and Circles! in a Microsoft Access Query -- Get Previous Record too
Visualize your data even better in Access queries. Given a date and a value, this lesson shows how to compare that value with the previous value, calculate the difference, and display a circle if the value is the same, an up triangle if it increased, or a down triangle if it decreased ... and stagger the markers for even greater grasp.

This lesson also covers how to handle non-American date formats, and optimize performance with a subquery.

If you like this video, please Like, Share, and Comment ~ thank you

1. Make a new query based on a table (MyData) with a date (TheDate) and a value (Price)


   - add date and value fields to the grid
   - sort in decending order by date

2. Add another copy of the table to the query


   - Access will '_1' to the end of the name of the copy at the top of the fieldlist to make it unique.
   - This table will represent the record for 'yesterday',  or whenever the previous value was recorded.
   - add date and value fields to the grid and give them aliases (for instance, PrevDate and PrevPrice) since field names have to be unique

3. Create a calculated field to show the difference


   - for instance --> Diff: CCur( MyData.Price - MyData_1.Price )
   - between a value in the reference record and the previous record
   - Wrap with function to convert to currency to ensure the result is the correct data type
   - the calculated field name (alias) is 'Diff' since it appears before the colon

4. Create a calculated field to show the Unicode symbol corresponding to a Circle or Triangle to graphically represent the difference

0

Expert Comment

by:Andy Brown
Nice work Crystal - thank you for sharing.
1
LVL 25
thank you, Andy

Unicode:

Note: Some fonts have more, and better, Unicode representations than others. For Windows standard built-in fonts, Arial Unicode MS and Lucida Sans Unicode have fair coverage.  Common fonts such as Arial, times New Roman, and Calibri can be okay too.

If you cannot show the Unicode characters used to demonstrate, try these instead:

filled circle  --> 9679

down-pointing triangle --> 9660

up-pointing triangle --> 9650
0

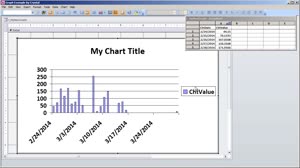

How To Make a Graph with Microsoft Access
Do you want to know how to make a graph with Microsoft Access? First, create a query with the data for the chart. Then make a blank form and add a chart control. This video also shows how to change what data is displayed on the graph as well as formatting, chart type, titles and legend.

"A picture is worth a thousand words"

1. Make a query to show what you want on the X-axis (Category) and Y-axis/es (Values)


2. Create a Chart object on a form or report using the Chart tool


3. Follow wizard steps, but don't worry about the data


4. Set the RowSource for the chart object to be the data that you want


5. Resize and Format the chart -- and set/change other properties such as text for Title(s)


6. To progammatically modify the chart, watch the next video in this series, 'Manipulate Graphs in Microsoft Access using VBA'.

3
LVL 50

Expert Comment

by:Subodh Tiwari (Neeraj)
You are awesome Crystal! Great video tutorial. :)
1
Become a Microsoft Certified Solutions Expert
LVL 13
Become a Microsoft Certified Solutions Expert

This course teaches how to install and configure Windows Server 2012 R2.  It is the first step on your path to becoming a Microsoft Certified Solutions Expert (MCSE).

Bar Graphs in an Access Query
Add bar graphs to Access queries using Unicode block characters. Graphs appear on every record in the color you want. Give life to numbers.

Hopes this gives you ideas on visualizing your data in new ways ~

1. Create a calculated field in a query


2. Use Cint to convert to integer for the number of repititions


3. use ChrW(9600) for the Unicode upper half block character


4. use String to repeat a given character a number of times


5. Color the graph by setting the column Format to something like [Blue]@


   colors: Black, Blue, Green, Cyan, Red, Magenta, Yellow, or White
   @ signifies that the value is text
2
Secure Portal Encryption
With Secure Portal Encryption, the recipient is sent a link to their email address directing them to the email laundry delivery page. From there, the recipient will be required to enter a user name and password to enter the page. Once the recipient has done so, they can then access the encrypted email.
0
Technology Architects Testimonial
Established in 1997, Technology Architects has become one of the most reputable technology solutions companies in the country. TA have been providing businesses with cost effective state-of-the-art solutions and unparalleled service that is designed within the scope of our customer’s business plan.

With certification to sell and implement some of the industry’s best solutions and tools, as well as their tier one support personnel, TA have built several long standing partnerships with other top tier manufacturers products to provide companies with solid solutions to implement and maintain their competitive edge.

TA has built its reputation on performance excellence. Their sales professionals, engineers and customer service staff will be involved in every step of the process. TA technical expertise has been acquired through years of experience, training and certifications that will provide you with peace-of-mind.

Their goal is to understand your unique technology requirements as they relate to your specific objectives, growth, position in the market and budgetary concerns. Technology is all about customization and scalability. TA believe every customer has unique IT/Networking and telephony requirements and those requirements should parallel the business plan of the customer. TA will design your technology platform based on your historical plans, current plans and most importantly, your future plans, to ensure you are getting the strongest return on investment as …
0
The Email Laundry
A company’s greatest vulnerability is their email.

CEO fraud, ransomware and spear phishing attacks are the no1 threat to a company’s security. Cybercrime is responsible for the largest loss of money to companies today with losses projected to reach $2 trillion by 2019.

When a company’s email is down, business is down.

To prevent your company from cyber crime, email security is the only solution.


The Email Laundry keeps you safe from the threats organisations face every day with cutting edge CEO Algorithms, Phishing Sensors, URL Scanners and Threat Intelligence.

The Email Laundry’s comprehensive service barricades your organisation from all incoming threats which allows you to focus comfortably on your company's interests.

The Email Laundry are trusted worldwide by secured multinational companies in the healthcare financial, oil and gas industries.

We are also the highest rated email security company by IT professionals on Spiceworks.

The Email Laundry guarantees to keep your company safe!
0
Polish Reports in Access
Polish reports in Access so they look terrific. Take yourself to another level. Equations, Back Color, Alternate Back Color. Write easy VBA Code. Tighten space to use less pages. Launch report from a menu, considering criteria only when it is filled out.

If you haven't already seen it, watch and do all the steps for 'Create a Query and Grouped Report and Modify Design using Access'
https://www.experts-exchange.com/videos/4514/Create-a-Query-and-Grouped-Report-and-Modify-Design-using-Access.htm

1. Download the START and SOLUTION databases

ReportPolish_START_SOLUTION.zip

2. Change equations for sum descriptions in each of the group footer sections to cut extra words.


Month format code is mmm-yy
Year format code is yyyy

3. Set Width of product category footer descriptive equation to 2.8 inches and Left to 0.2 inches.


4. Delete extra labels with the caption = sum


5. Set width of other group footer descriptive equations to 3 inches.


6. Set Top of sum amount controls to 0 in the group footer sections.


7. Bold header and footer group section controls.


8. Tighten spacing to reduce pages.


9. Set group sections to 'keep header and first record together on one page'.


10. Set Back Color and Alternate Back Color for each section:


- Product Category = aqua
- Day = orange
- Month = blue
- Year = green

11. Set group header and footer controls to Back Style = Transparent.


12. Save, Close, and Rename the report.


13. Modify the menu form to add a command button with a Click [Event Procedure] to open the report in print preview.


Remember to Debug, Compile, and then Save

14. Write VBA code to construct criteria that the user may have picked and ignore criteria that is not specified.


15. Modify the OpenReport code to call the criteria function for the WhereCondition argument.


Remember to Debug, Compile, and then Save

16. Now for the fun part ... open your new report for any date, or date range, or no criteria!

1
LVL 19

Administrative Comment

by:Kyle Santos
Great video submission, Crystal!  Congratulations.  Your video has been Approved and is now published on Experts Exchange.  Feel free to share this video by selecting the social sharing icons.
0
LVL 25
thank you, Kyle
0
Create a Query and Grouped Report and Modify Design using Access
Access reports are powerful and flexible. Learn how to create a query and then a grouped report using the wizard. Modify the report design after the wizard is done to make it look better. There will be another video to explain how to put the final polish on the report, rename it, and add it to a menu form. Download the START and SOLUTION sample databases.

1. Download the START and SOLUTION sample databases (zip file)

SimpleGroupedReport_START_SOLUTION_D.zip

2. Open the START sample database

3. Create a Query to Line Up Data for Report

4. Use the Report Wizard to create a Grouped Report


Source is the query created in step 3

5. Group by year, month, day, then product category

6. Sort by product name then descending amount

7. Specify the amount to be summed

8. Choose Outline layout

9. Modify the Report Design


Add, delete, resize and move controls; show and use different report sections; spacing and boundaries; calculated controls;  formatting and properties; Report View and Print Preview.

10. Compare what you did to the SOLUTION database

1
LVL 25
the next video is here:

Polish Reports in Access
https://www.experts-exchange.com/videos/4559/Polish-Reports-in-Access.html
0
LVL 19

Administrative Comment

by:Kyle Santos
Thanks!
0

Microsoft Access

221K

Solutions

52K

Contributors

Microsoft Access is a rapid application development (RAD) relational database tool. Access can be used for both desktop and web-based applications, and uses VBA (Visual Basic for Applications) as its coding language.
